A bigger pre-setting fixture more exact art.no. 3-45082 is available as an option.
Fixed knives
The fixed knives are installed with support rules, one pair per fixed knife pair.
Tightening torque 600 Nm.
The fixed knives have fixed set positions in the cutter housing/cutter house door.
The knife clearance for the knives 0.20 - 0.50 mm is set with an pre-setting fixture,
before the knives are installed in the knife positions in the cutter housing/cutter
house door.
A pre-setting fixture of the compact model type, for pre-setting of the fixed knives
art. no. 3-45470 is delivered in the granulator tool bag.
A bigger pre-setting fixture more exact art.no. 3-45082 is available as an option.
To change the knives
Noise encapsulated machine:
– open the doors.
– loosen and remove the protective plate
on rear side of the granulator.
Open the cutter house door and hopper.
Remove the granule bin, screen and screen box
– read section 5.5.

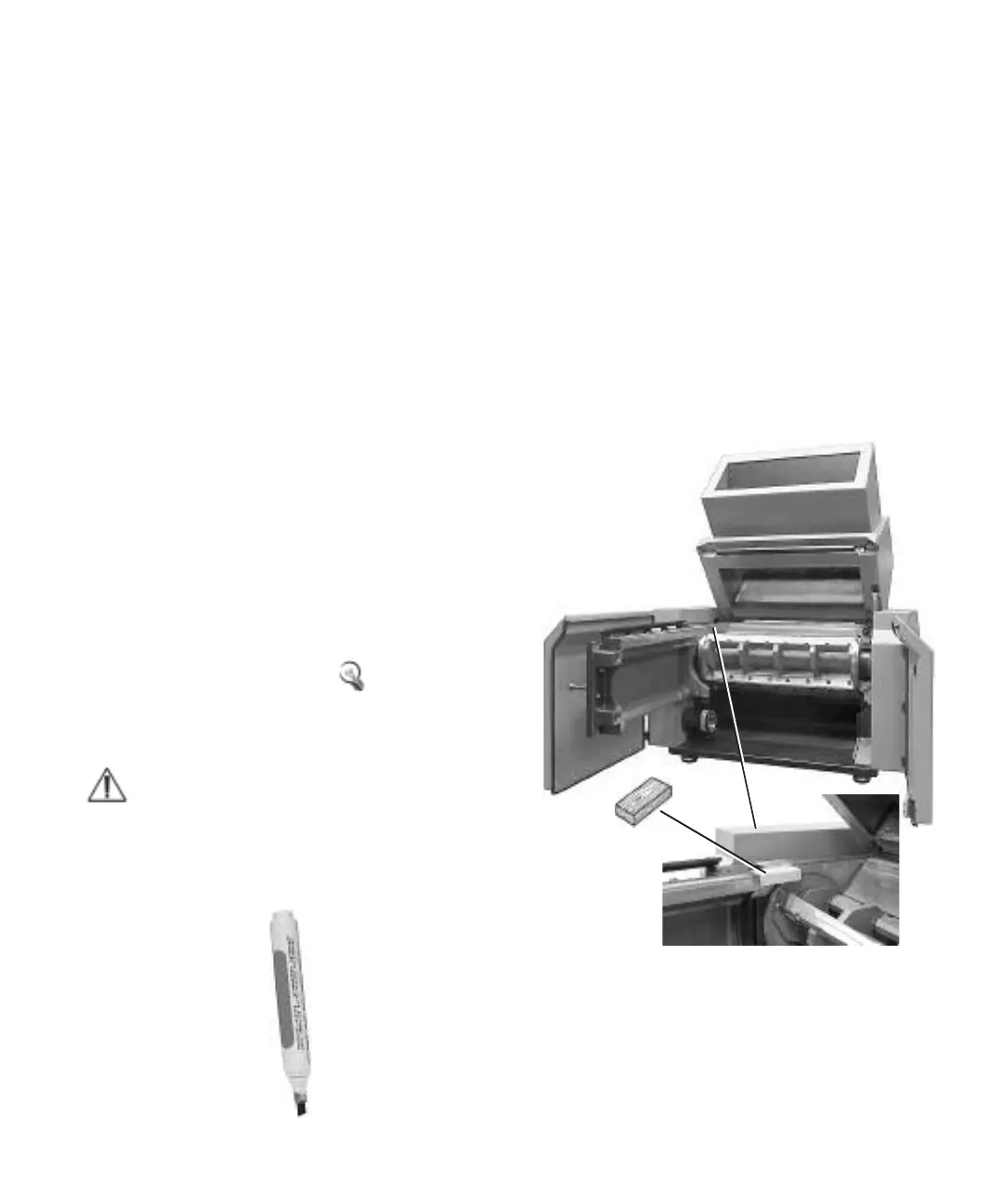

Tips! Lock the cutter
house door in open
position.
With a block of wood, size
25 x 50, length 230 mm,
the cutter house door can be
stopped in the open position.
Mark the knives
Mark support rules and knives before they
are removed. First mark the order of knife
position on the cutter with: 1 to 3; or 1 to 5.
Then mark the position of the support rules on the rotating knives with right, left
and order on the cutter.
Then mark the position of the support rules on the fixed knives.
If the knives are removed for grinding.
Mark each knife before removing it with the position right, left and order on the cutter.
NOTE: Make sure that the
block of wood is of good
quality.
Warning. A block which
breaks during work can
cause personal injury!
7.1 Knife changing (continued)
7-4 l Ser vice
