5.7 Open the cutter house door,
hopper, granule bin and screen box
Immediately after opening the cutter house door and hopper, switch
“Off” both the main power switch and the granulator switch.
Take care when the knives are accessible, they are sharp and could
cause personal injury.
Open the cutter house door
1 Stop the feeding of material to the granulator. Wait until all material in the
granulator is complete granulated and the blower has emptied the granule bin
and material conveyor system.
2 Stop the granulator, press the “Stop” button.
3 Noise encapsulated machine
open the doors.

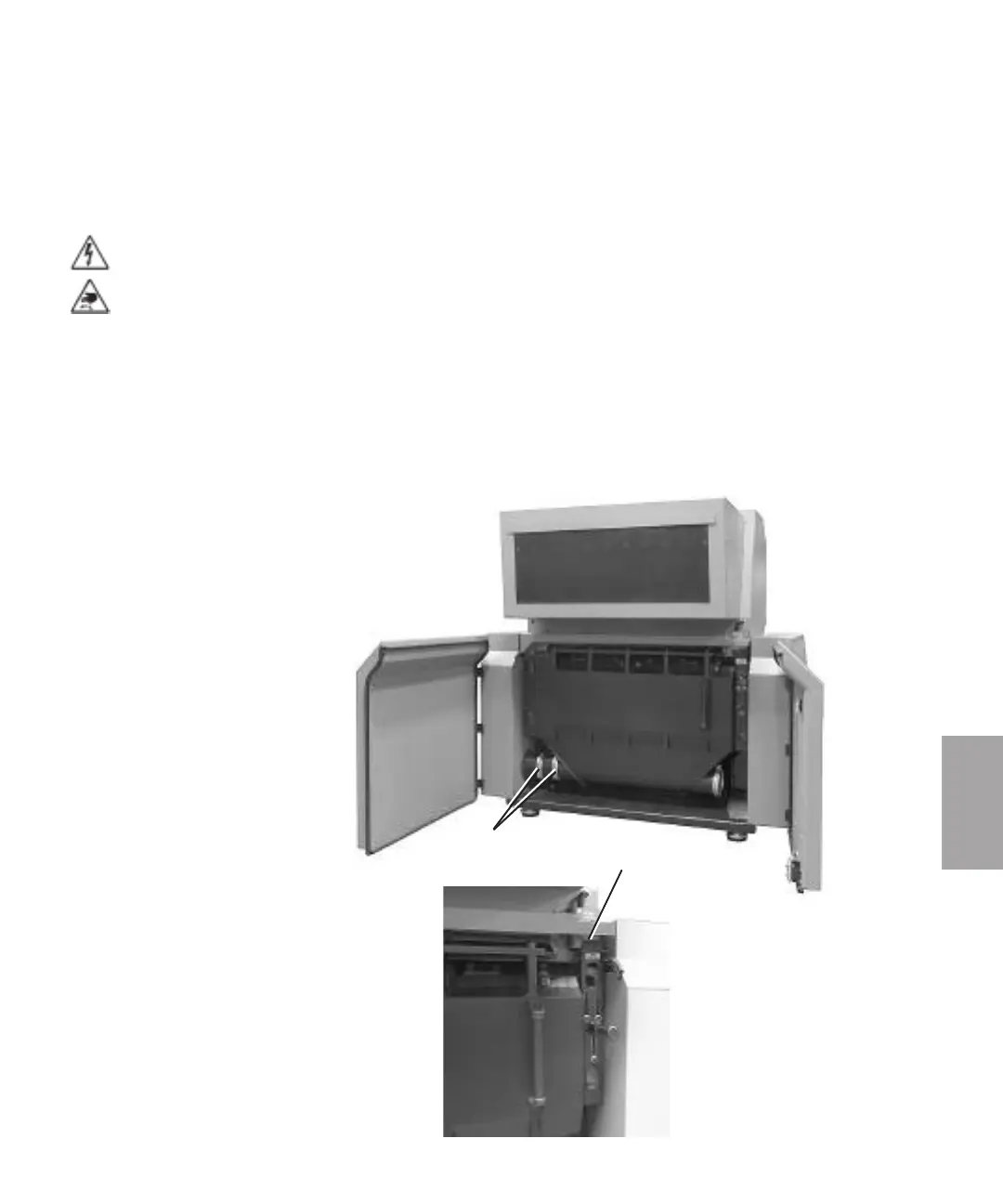

4 Loosen the coupling rings “J” on
the outlet pipe.Move the coupling
rings to the side and remove the
short pipe stub.
5 Wait until the granulator cutter
has stopped. A standstill monitor
sense when the cutter has stopped.
6 The safety switch “K” holds the
locking device to the cutter house
door locked, until the standstill monitor
sense that the granulator cutter has stopped.
An indication lamp in the knob “Hopper
operate I” on electrical cabinet and a green
diode lamp on the safety switch lights, when
the locking of the breaking key in the safety
switch opens.
5
Maintenance
J
K
Maintenance l 5-11
