3-2 l Functi onal Descrip tion
3.1 General
The granulator is designed to granulate
injection molded, blow molded
or extruded plastics waste.
The plastic waste must be free
from contamination such as
metal, poisonous, flammable,
explosive or any other substan-
ces that in any way are unhealthy.
The granulator is controlled by
start/stop controls on a control
panel.

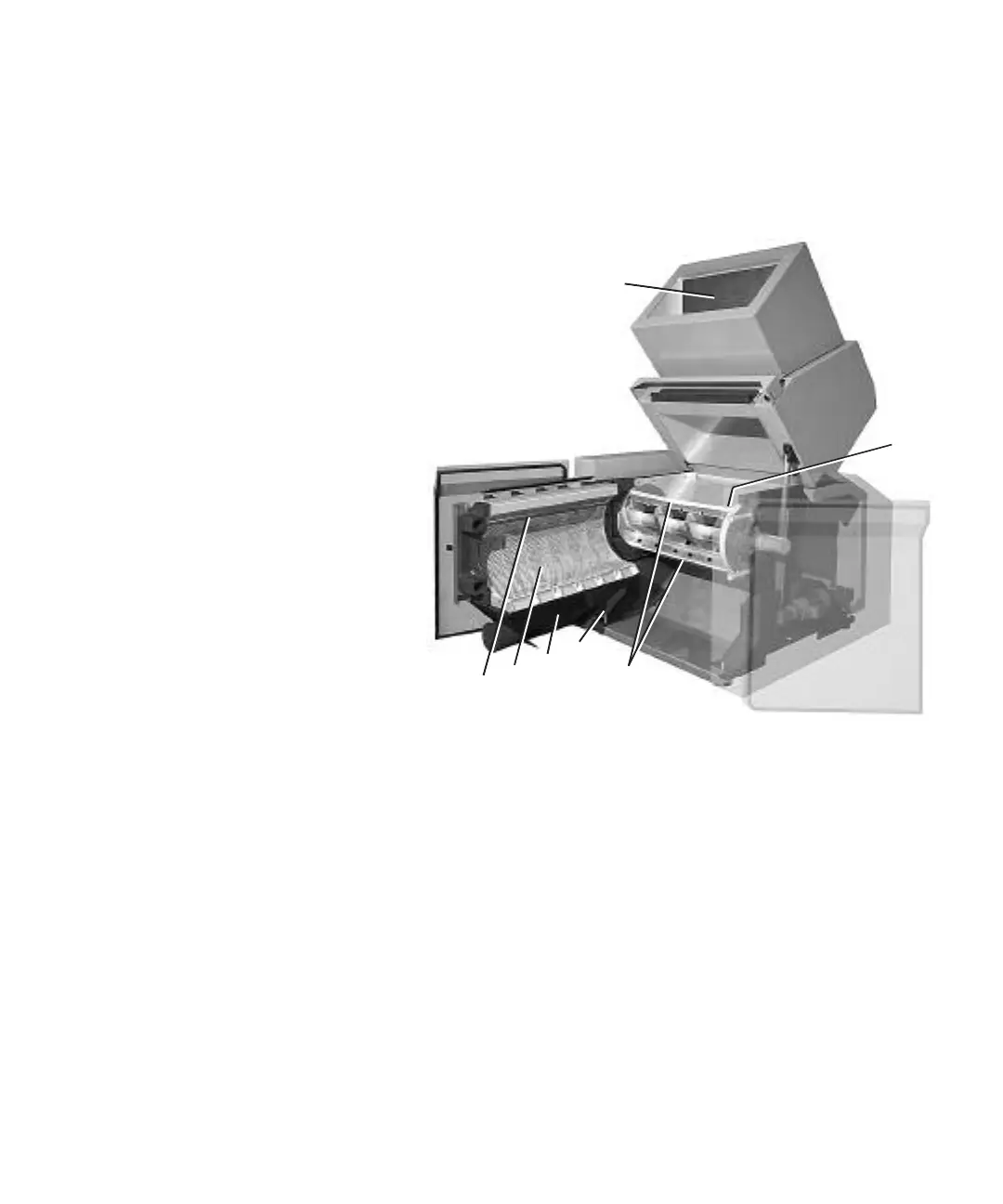

The plastic waste is fed in to the hopper “A” and falls down into the cutter hous-
ing, where rotating knives “B” cut the plastics against fixed knives “C” to granu-
late.
A perforated screen “D” determines the size of the granulate.
The screen is located in the front and lower section of the cutter housing and can
easily be changed to give the desired granulate size.
The granulate passes the screen and falls down through the granule bin “E”
towards the outlet pipe “F” for further transport.
The granulator is optimized prior to order and adapted to the customer
requirements, with the aid of three cutter-house widths: 18-24, 18-36 and 18-48.
and three types of cutter houses: The basic version of cutter house.
Cutter house intended for bulky items.
Cutter house intended for precutting.
The type of cutter housing can subsequently be altered and adapted, if the need
arises, by changing the rear part of the cutter housing. Please contact Conair’s head
office with regard to altering the type of cutter housing.
A
C
C
D
E
F
B
