12. Transport, lifting and storage
(continued)
Lift and transport to place of use by help of a crane/traversing crane
The machine should be lifted and handled by means of a crane or a traversing
crane.
NOTE: Use profile beams and lifting straps!
NOTE: Make sure that each one lifting beam can carry the machine weights without to
be deformed.
The machine weighs incl. packaging, approx. 3250 - 4000 kg, see also “Technical
specification”, section 2.
The hopper and doors must be properly closed before lift and transport.
OBSERVE! The weight point of the machine is unequal!
The front side of the machine (door side) is normally heavier than the rear side, but
depending on the granulator:
• motor size, manufacture and weight
• type of hopper
• possible optional equipment
the weight of the machine and distribution of weight varies.
Fit two profile beams under the frame of the machine.
IMPORTANT! Place the profile beams to the positions
where the yellow signs shows the positions for the truck
forks during lift.

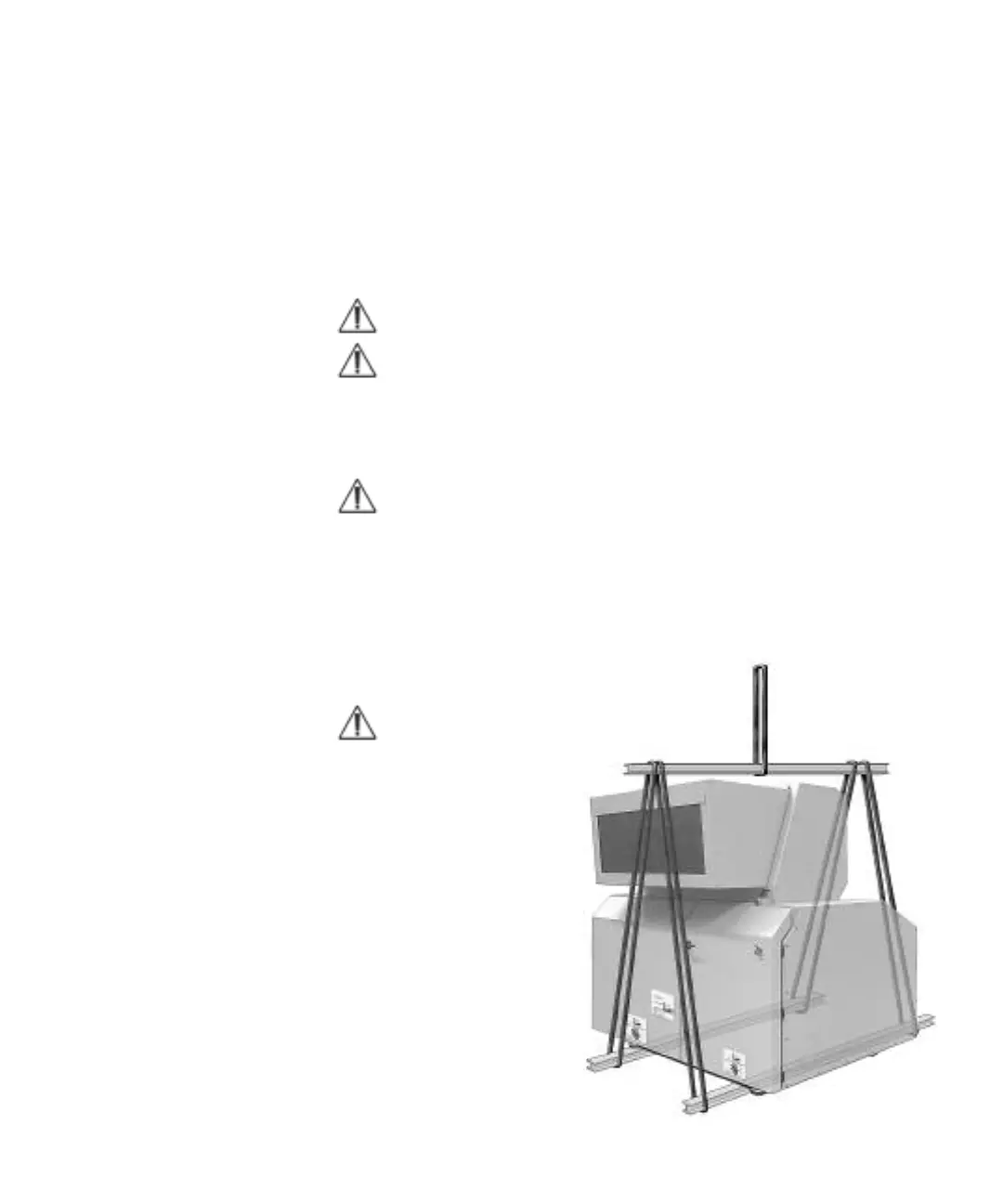

Fit a upper lifting beam and lifting
straps on the way shown in the
illustration. Balance the weight
point of the granulator.
Lift the machine with great care
and make sure that nobody stays
underneath or close to the machine
during lifting.
(continued)
12-4 l Transport, L ifting, and Storage
