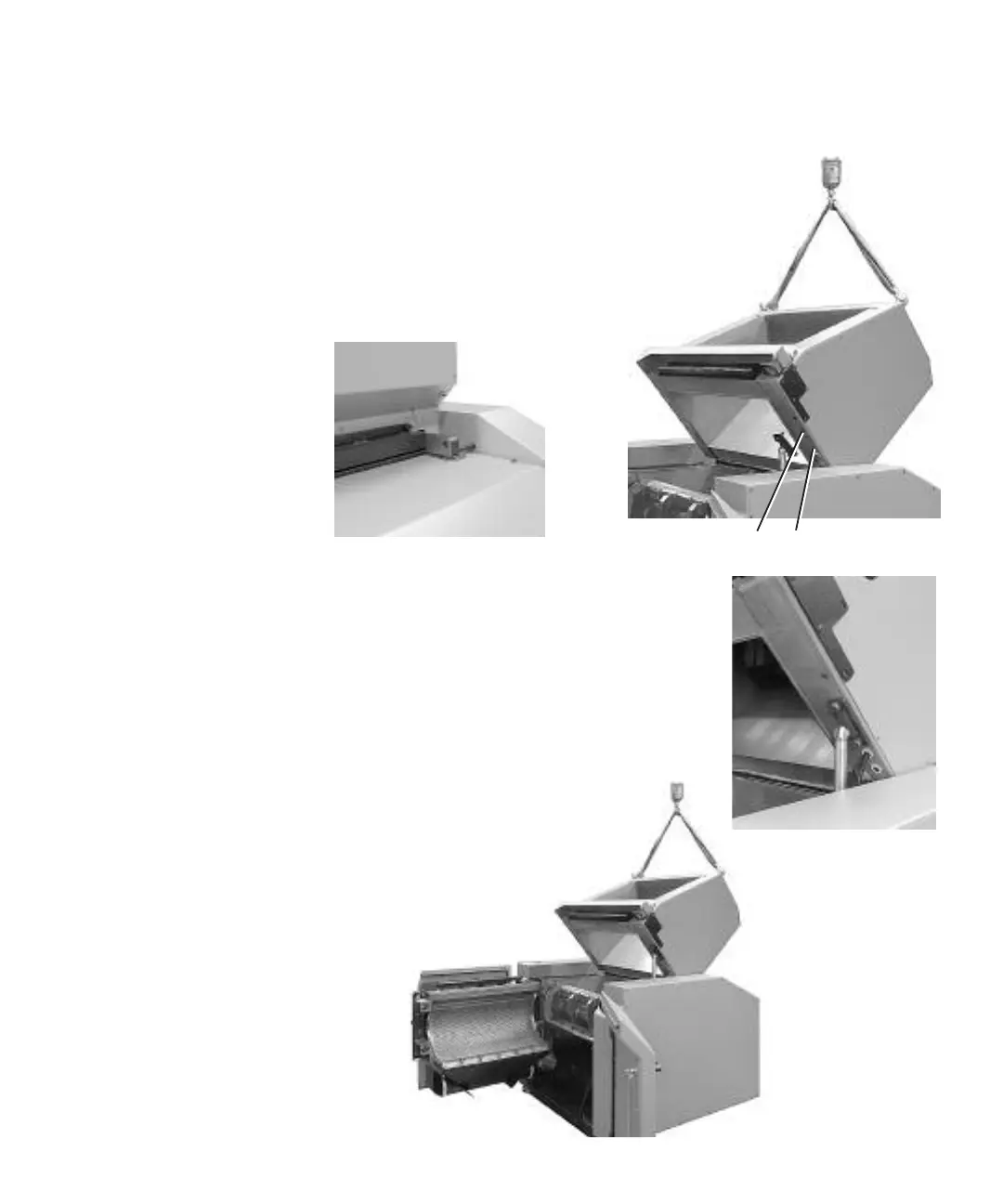

5.2 Install the hopper (continued)
8 Check so that no emergency stop is activated.
9 Check on rear side of the hopper, in which position
of the bracket the hinge list is installed.
When the hinge list is installed in the front holes of
the bracket (as shown in the illustration) . . . .
– the upper bracket to the jack should be installed
in the screw holes 2 and 4.
The jack lifting rod should be vertical after installing.
10 Operate the jack so that the screws
easily fits into correct screw holes.
11 Fasten the screws (M16) to the upper
bracket with a tightening torque of
220 Nm.
12 Close the hopper.
13 Remove the lifting strap
and the lifting eyes.
Screw hole no. 2 and 4
14 Call for an qualified
electrician to
connect the safety
switch at hopper.
