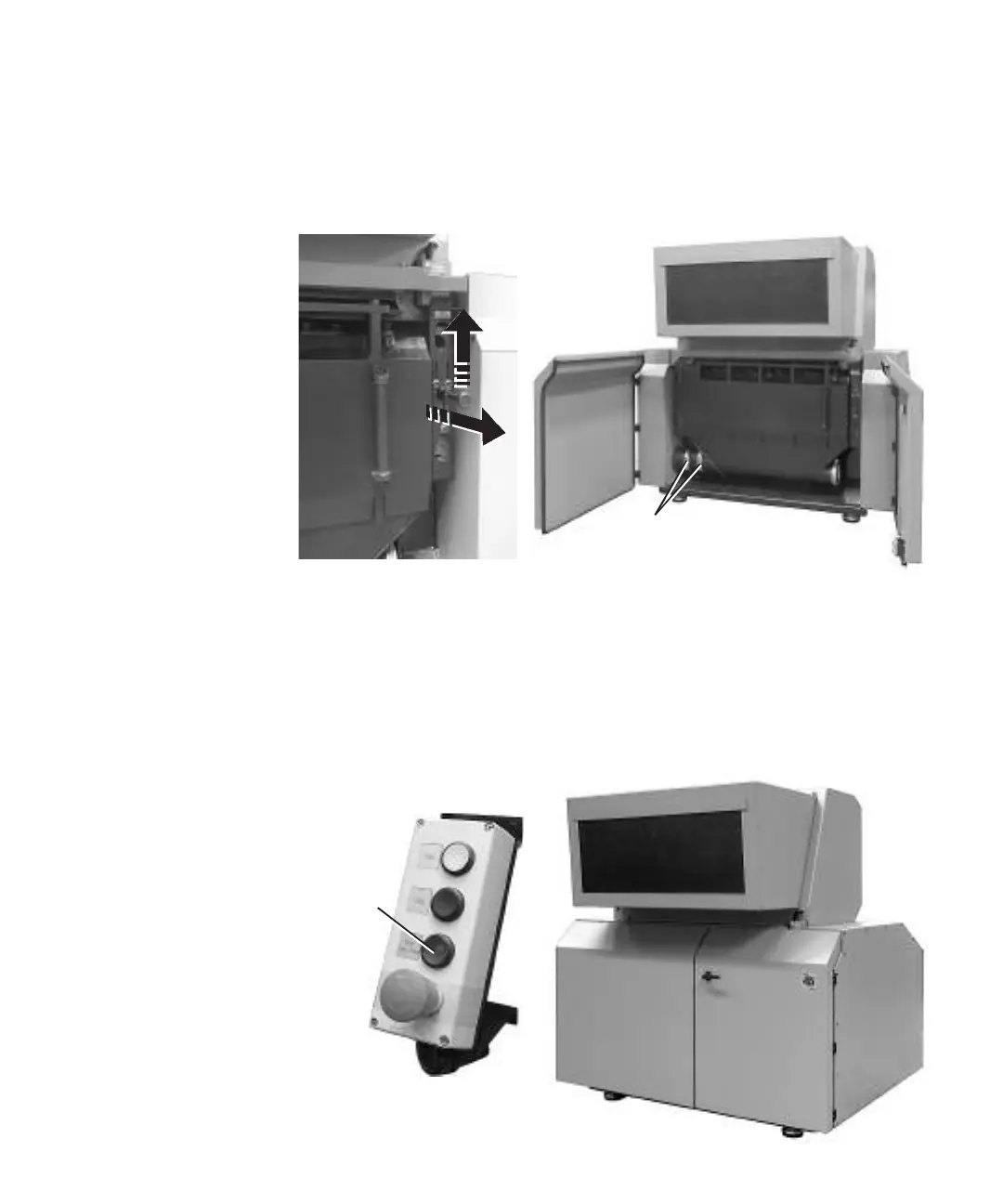

13 First pull the lock handle outwards. Then lift the handle upwards
so that the breaking key enters the safety switch.
14 Install the short pipe stub with the coupling rings “J” to the outlet.
15 Noise encapsulated machine close the doors.
16 Reset the safety relay. The blue lamp in the button lights when the
safety relay is reset.
17 Start the granulator.
J
Reset
safety relay
5.8 Close the screen box, granule
bin, cutter house door and hopper
(continued)
5-18 l Mainte nance
