The socket cap screws which fasten the support rules and the fixed knife pair, are
undone from rear side of the cutter housing.
3 Mark and lift out the support rules to the fixed knife pair.
4 Mark and lift out the fixed knife pair.
5 Clean the knife positions where the knives were located.
Fixed knife no. 2 (front)
1 Undo and remove the socket cap screws which fasten the support rules and the
fixed knife pair (hex 17 mm).
The socket cap screws which fasten the support rules and the fixed knife pair, are
undone from inside of the cutter house door.
NOTE: Hold both the support rule and the fixed knife, when undone and removing the
last screw to the support rule.

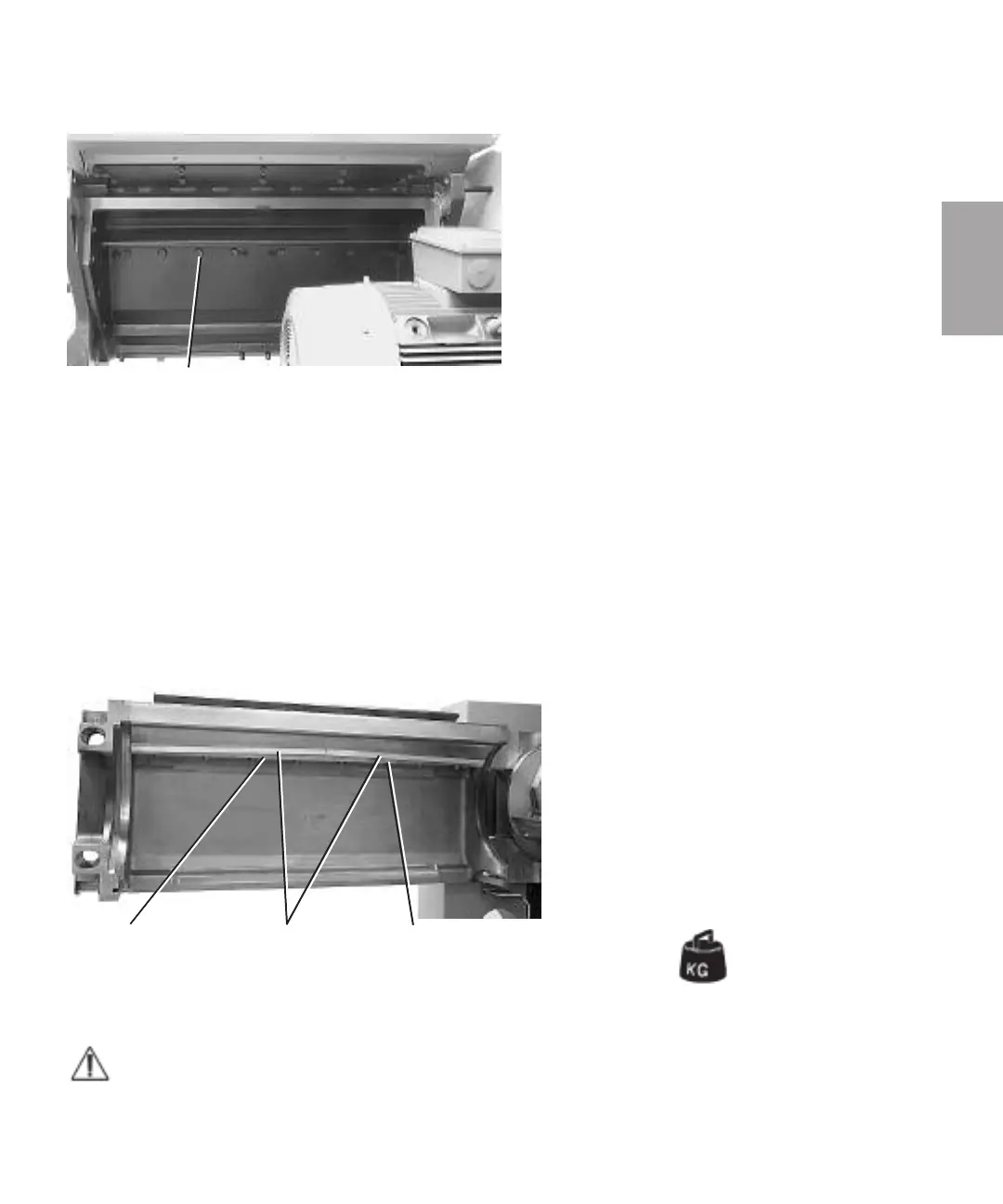

Socket cap screws to fixed knife no. 1
Support rule Fixed knife pair no. 2 (front) Support rule
NOTE: The fixed knife
and the support rules
are heavy, be careful!
