90
AUTOMATIC SWING DOOR (OPTIONAL)
1) With the door closed, the OL + 12V LEDs should be on.
2) With the door opened, OL + 12V are on all the time, ME + OP + OPA come on as soon as
the door starts to open, RESET comes on for about 3 seconds, and CL comes on once
the door opens 1/2”. When the door reaches its open limit, the OL light goes off and
DAOL + RESET come on.
3) With the door held open, CL + ME + DAOL + RESET + 12V are all on.
4) While the door is closing, OL + CL + ME +12V are all on, DAOL goes off and OL comes
on when the door starts to close. The CL light goes off when the door is 1/2” from closing,
then ME goes off.

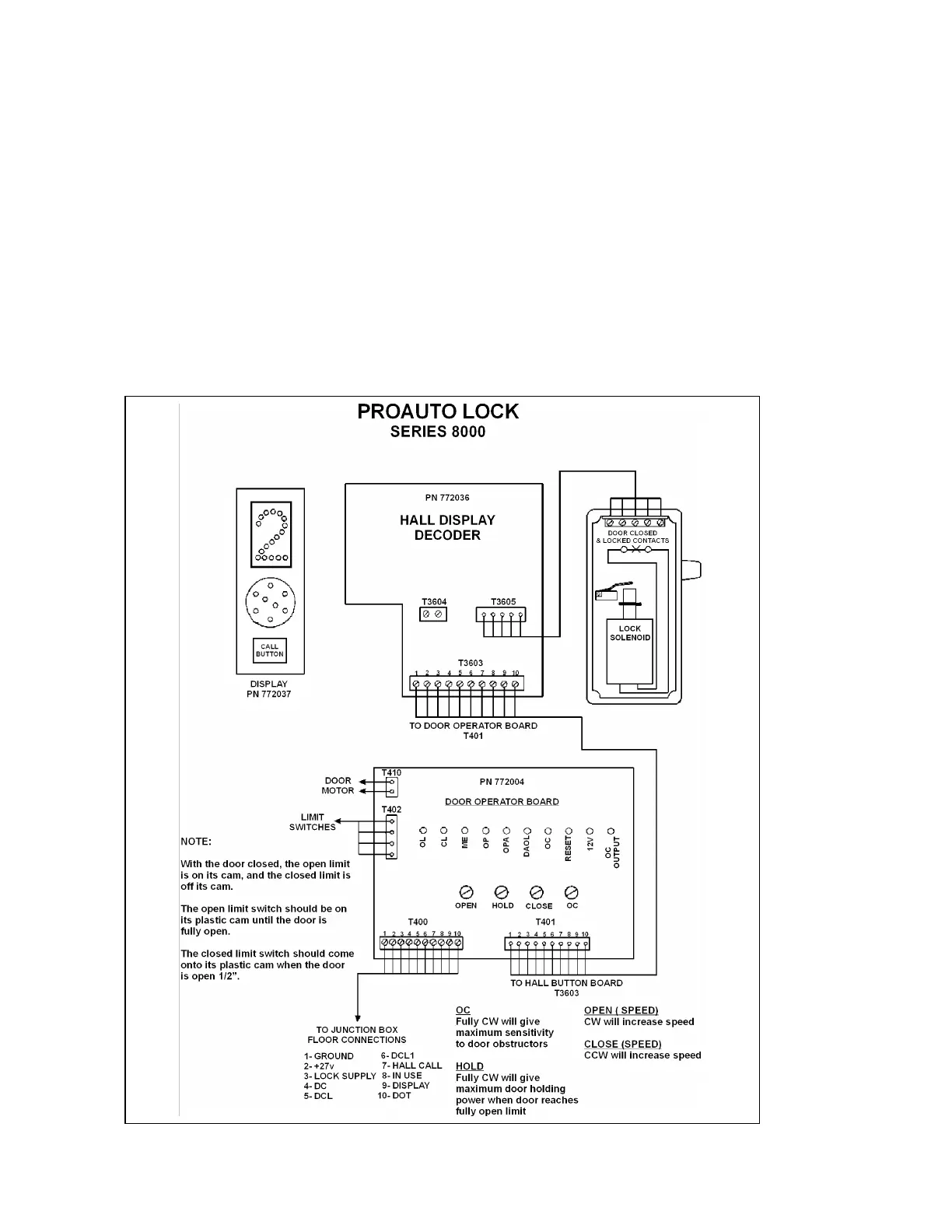

Figure # 57 Auto Door System
