13. Appendix
50
Software Manual

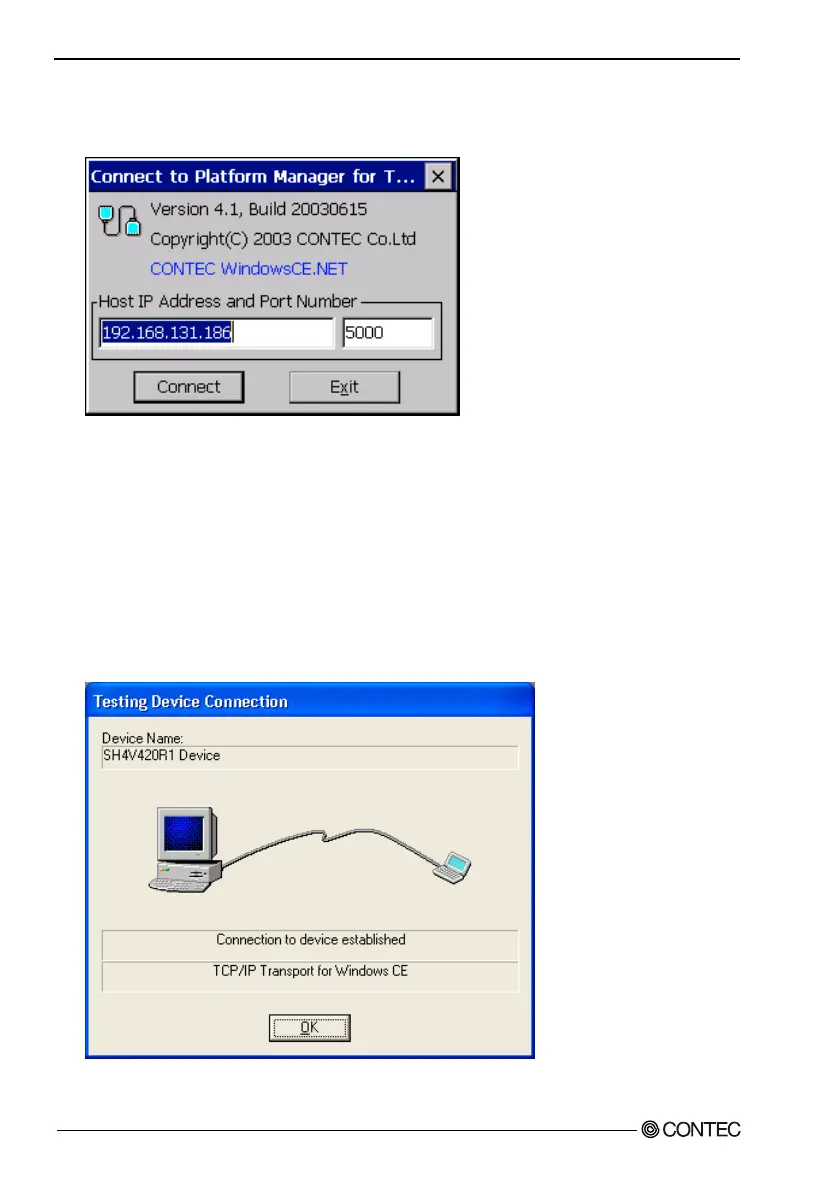

8) [Connect to Platform Manager for TCP/IP] dialog box is displayed. Type IP address of the
development machine into [Host IP Address and Port Number].
Type port number into [Port Number] that you entered in procedure 5.
(If the [Exit] button is pushed, the IP address and port number will be saved to the registry, and the
connect.exe will be end.
If the IP address or the port number is empty, you will unable to exit. If you really want to exit push
the “X” button on the right-top corner.)
9) Select [OK] at [Manual Server - Action] dialog box of the development machine.
10) Press the [Connect] button at [Connect to Platform Manager for TCP/IP] dialog box of the target
machine.
11) Test the connection between the development machine and the target machine starts.
12) If the test result is successful, the message [Connection to device established] is displayed on
[Testing Device Connection] dialog box in the development machine. Select [OK].
13) This completes the connection check between the development machine and target machine.
