Control Concepts FUSION Series - Mounting Dimensions for Single Module Controllers

3
© Control Concepts Inc., 2013
www.ccipower.com 1-800-765-2799 Compact FUSION Installation Manual Revision 3.50.2
This model includes controllers:
• Single Phase
• Single Phase with Pass Through
• (2x) Single Phase
• Three Phase Two Leg

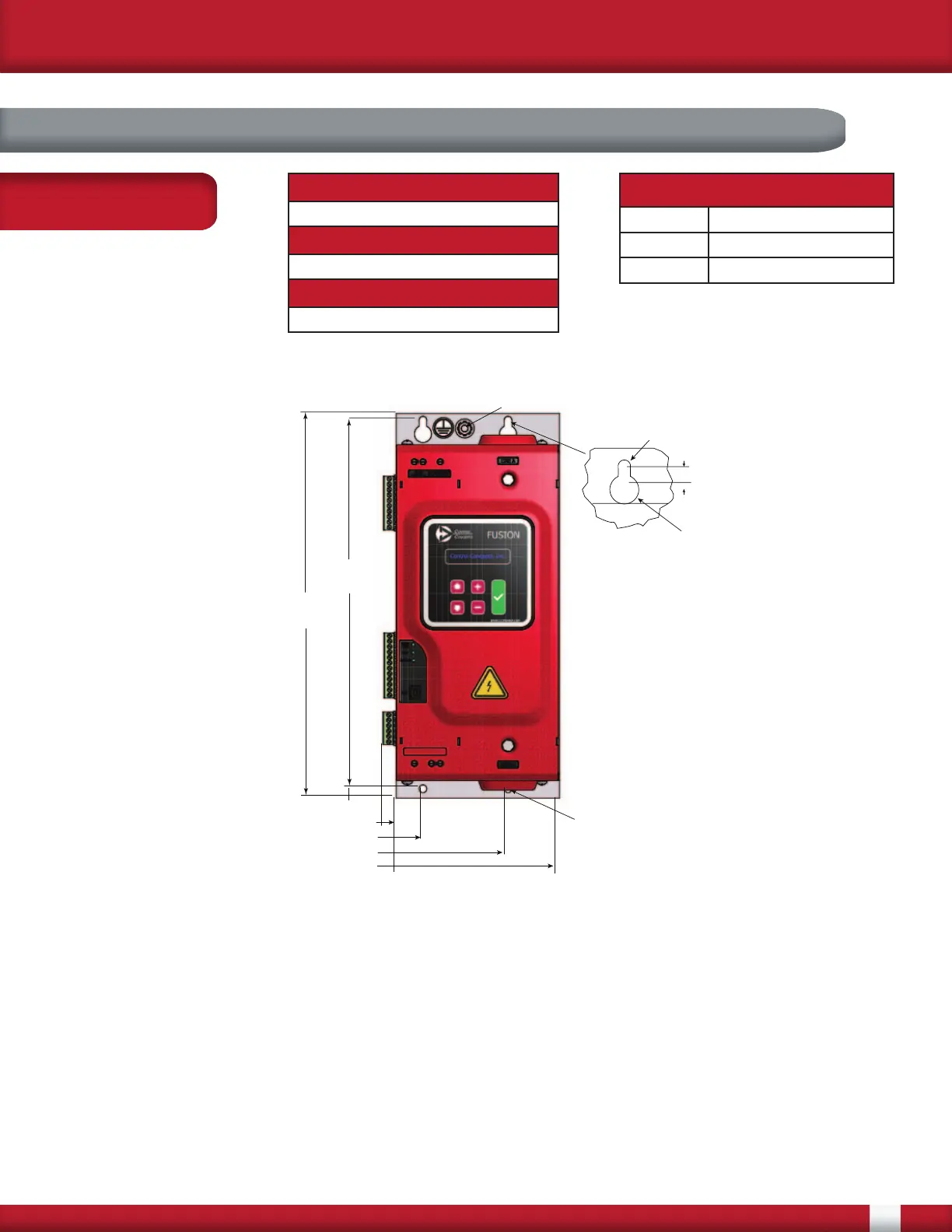

2.2 Mounting Dimensions for Single Module Controllers
Height
14.03 [356.5]
Width
5.96 [151.4]
Depth
9.57 [243.0] *
*Depth with DeviceNet adaptor is 9.82 [249.4]
Amp Weight (lbs[kg])**
10-50 14.0 - 15.5 [6.4-7.0]
80-125 14.0 - 15.5 [6.4-7.0]
160 15.5 - 17.5 [7.0-7.9]
** Weights are for controller only - Shipping
weight will vary
Dimensions:
Inches [mm]
PE GROUND M6 STU D
13.44
[341.4]
14.03
[356.5]
0.487 [12.4]
0.345 [8.8]
0.98 [24.8]
4.09 [103.9]
5.96 [151.4]
Ø0.281 [7.1]
R0.141 [3.6]
R0.313 [8]
0.50 [12.7]
