2.4 Remote Display Kit
The remote display kit includes all necessary components (excluding knockout punch) to mount
the display to the front of an electrical enclosure. This allows for easy viewing and adjustment of
parameters and reduces costs by eliminating the need for external gauges.
The remote display is suitable for use on a flat surface of a type 1 and/or type 12 enclosure. It meets
CE and UL requirements. CE testing was conducted with a 25 foot cable from the controller to the
display. Contact the factory if you require a length longer than 25 feet.
Remote Display Ratings:
IP65 - Totally protected against ingress of dust. Protected against jets of water. Limited ingress
permitted.
UL Type 1 - Enclosure constructed for indoor use to provide a degree of protection to personnel
against incidental contact with the enclosure equipment and to provide a degree of protection against
falling dirt.
UL Type 12 - Enclosures constructed (without knockouts) for indoor use to provide a degree of
protection to personnel against incidental contact with the enclosed equipment; to provide a degree of
protection against falling dirt, against circulating dust, lint, fibers, and filings; against dripping and light
splashing of non-corrosive liquids; and against light splashing and consequent seepage of oil and
non-corrosive coolants.
2.4.1 Mounting Considerations
Must be mounted on enclosure with smooth surface.
Follow the mounting instructions on the following pages for proper installation.
Maximum panel thickness: 0.25 [6.4].

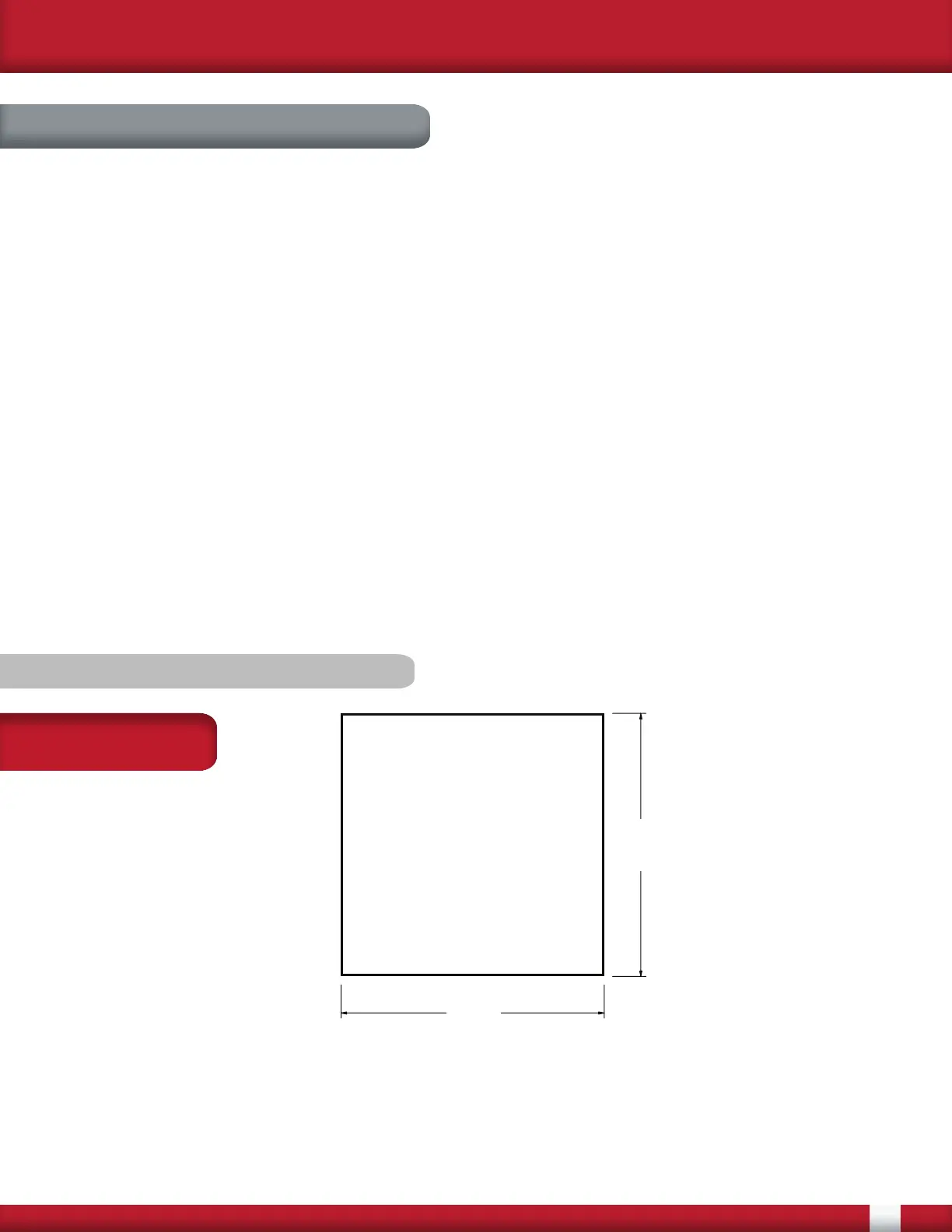

Dimensions:
Inches [mm]
3.627
[92.1]
3.627
[92.1]
1/4 DIN Knockout
