Compact FUSION Installation Manual Revision 3.50.2

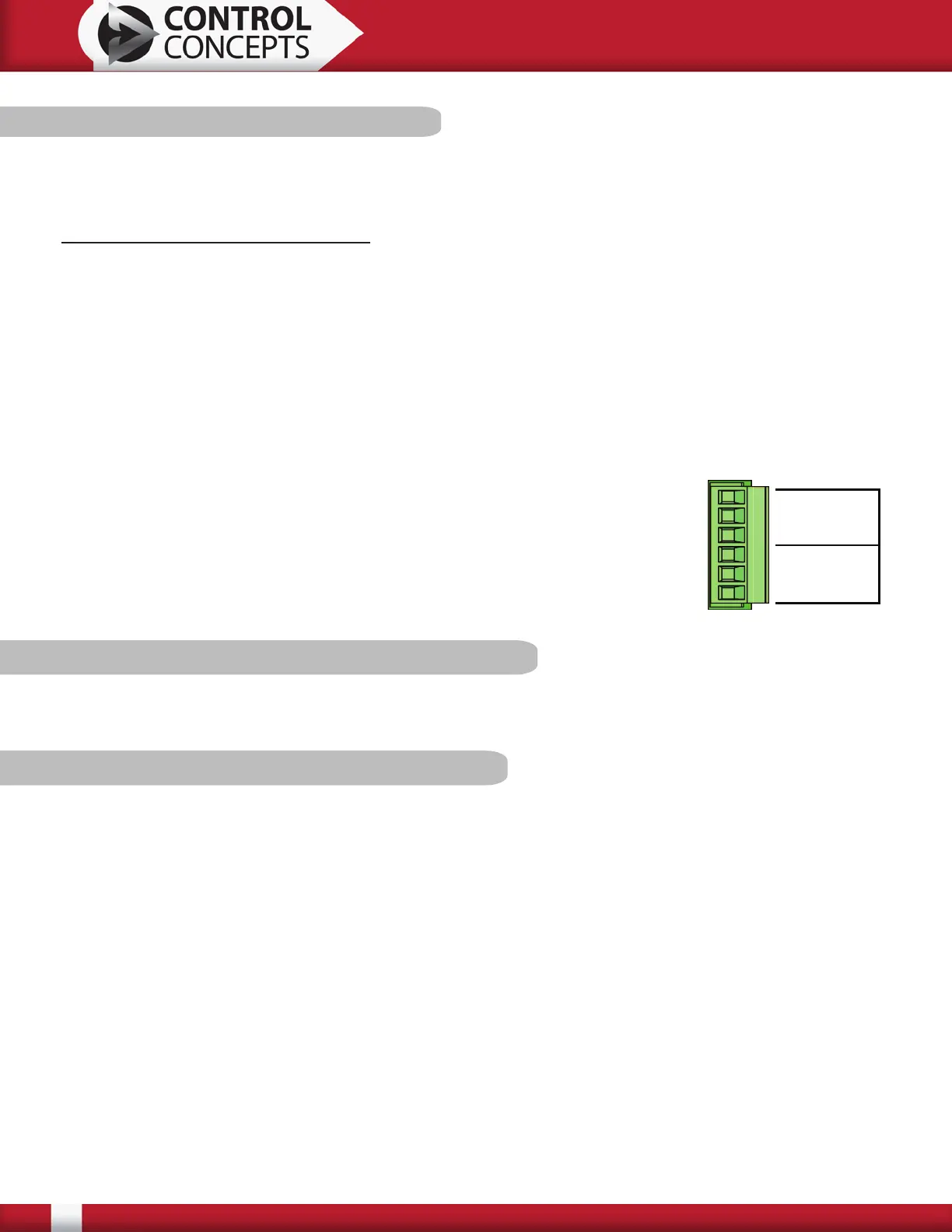

3.5.4 P2 - 6 Pin Relay Connector
Both Relay 1 and Relay 2 can be set up for zero, one, or more alarms using the FUSION Control
Panel Software.
The following alarms are available:
Digital Enable Voltage Limit Current Limit Power Limit
Shorted SCR Line Phase Loss Heatsink Warning Temp Current Trip
Heatsink Over Temp Processor Error Trap Communications Error Memory Error
Watchdog Timeout PLL Lock Loss In “Run” State Run Enable
Both relays can have the same alarm mapped to it.
The default alarms mapped to Relay 1 are Current Trip and Heatsink Over Temp.
The default alarms mapped to Relay 2 are Shorted SCR and Heatsink
Warning Temp.
There are two Form C contacts with a rated switching current of:
8 A at 250 Vac
5 A at 30 Vdc
6 NC
5 COM
4 NO
3 NC
2 COM
1 NO
RELAY 2
RELAY 1
3.5.5 P3 - 10 Pin Auxiliary I/O Connector
3.5.6 P4 - Remote Display Connector
This connector is only present when the controller is ordered with an Auxiliary I/O
card. For more details see the Aux I/O Card section in this manual.
This connector is for remote mounting the display. For more details see the Remote Display
Kit section in this manual.
