Control Concepts FUSION Series - AC Cable Entry Heights; Wire Acceptance

10
© Control Concepts Inc., 2013
www.ccipower.com 1-800-765-2799
Compact FUSION Installation Manual Revision 3.50.2
CABLE ENTRY “A”
9.57 [243.0]
3.31
[84.1]
6.39 [162.3]
CABLE ENTRY “B”
*9.82 [249.4]
8.46 [214.9]
Cable Entry “A” LINE Cable Entry “B” LOAD
10-50A 4.99 [126.8] 4.91 [124.7]
80A 5.56 [141.3] 4.91 [124.7]
100-160A 5.73 [145.5] 5.73 [145.5]
LINE & LOAD LUGS WIRE ACCEPTANCE
10-80A Screw 14 AWG - 2 AWG
100-160A 5/16” Hex Drive [8] 6 AWG - 250 MCM

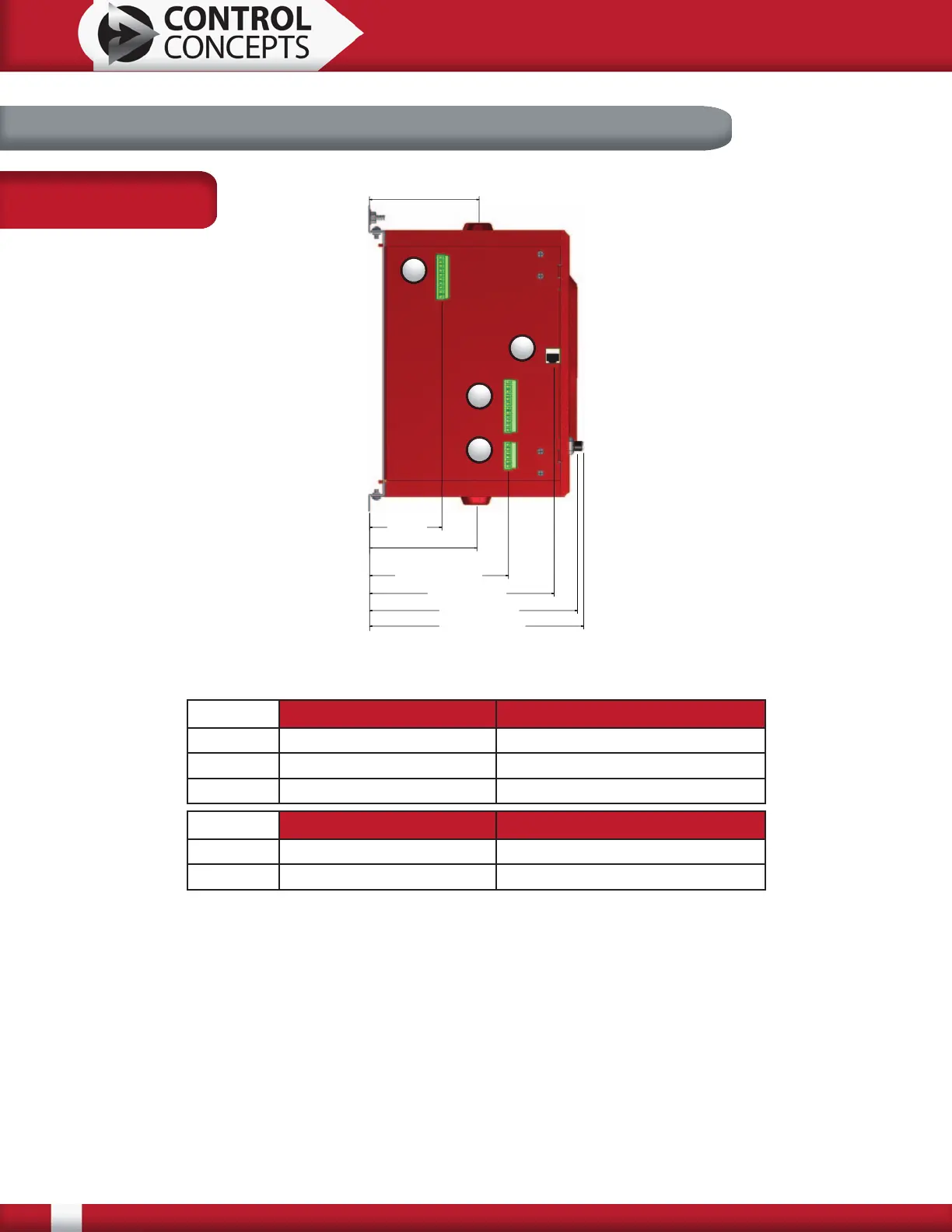

3.3 AC Cable Entry Heights / Wire Acceptance
*This is for controllers with DeviceNet only.
P1
P2
P3
P4
Dimensions:
Inches [mm]
