3.4 Line / Load Connections
3.4.1 Single Phase
100- 24 0R ef A
Va c
Fu se
AC /LAC /N
PE G ND
L
O
A
D
Phase A
Phase B
Load A2
Line A1

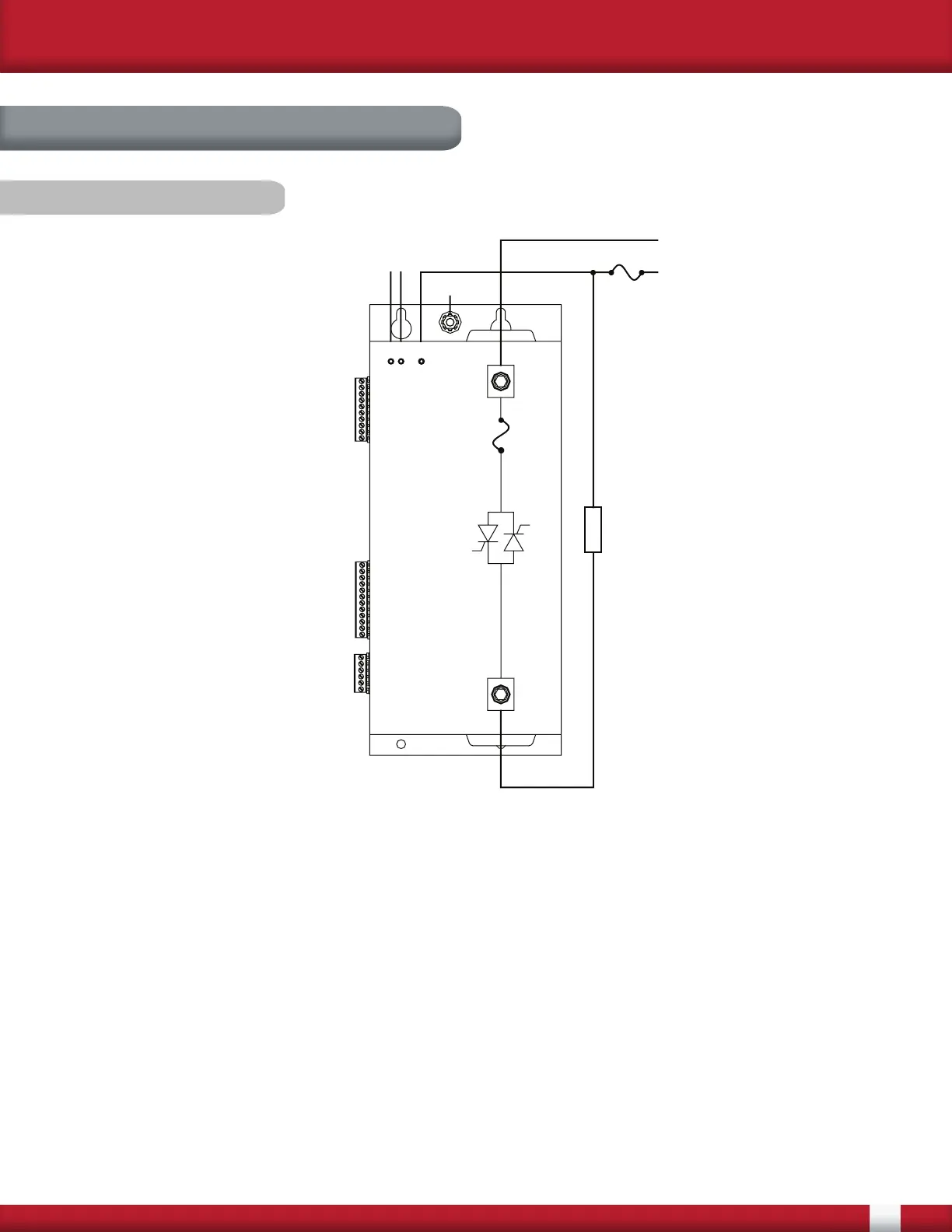

This figure shows a single phase controller connected Phase A to Phase B. The controller is not
phase sensitive and can be connected to any two phases. It can also be connected from Phase to
Neutral.
