Compact FUSION Installation Manual Revision 3.50.2

3.4.5 Single Phase with Pass-Through

100- 24 0

Va c

AC /LAC /N

PE G ND

Phase A

Phase B

Load A2

LOAD

Load B2

Line A1

Line B1

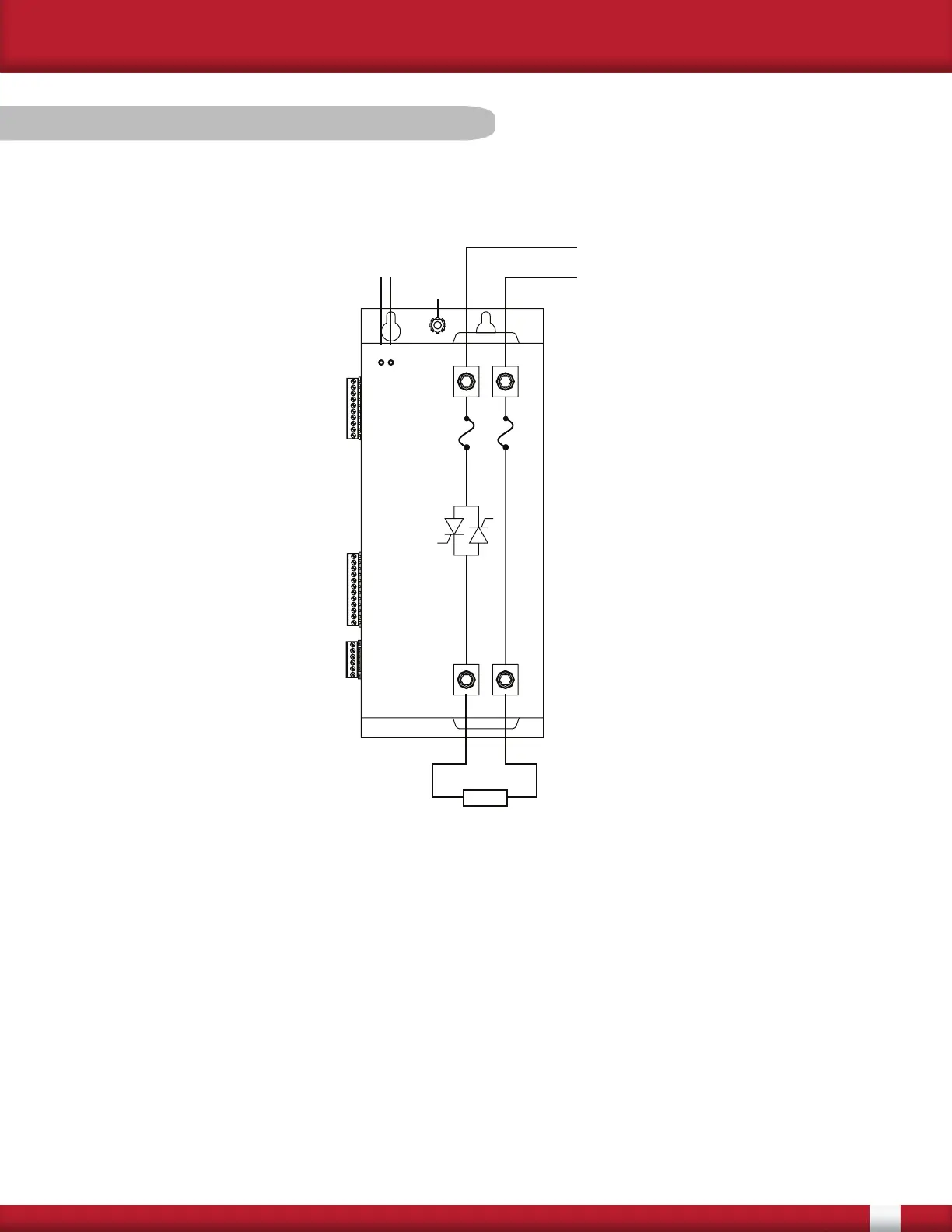

This figure shows a single phase controller connected Phase A to Phase B. The controller is not

phase sensitive and can be connected to any two phases. It can also be connected from Phase to

Neutral.
