Control Concepts FUSION Series - Mounting Dimensions for Two Module Controllers

4
© Control Concepts Inc., 2013
www.ccipower.com 1-800-765-2799
Compact FUSION Installation Manual Revision 3.50.2
This model includes controllers:
• (2x) Single Phase with Pass Through
• (3x) Single Phase
• (4x) Single Phase
• Three Phase Two Leg with Pass Through
• Three Phase (Delta, Inside Delta, 3 or 4 Wire Wye)

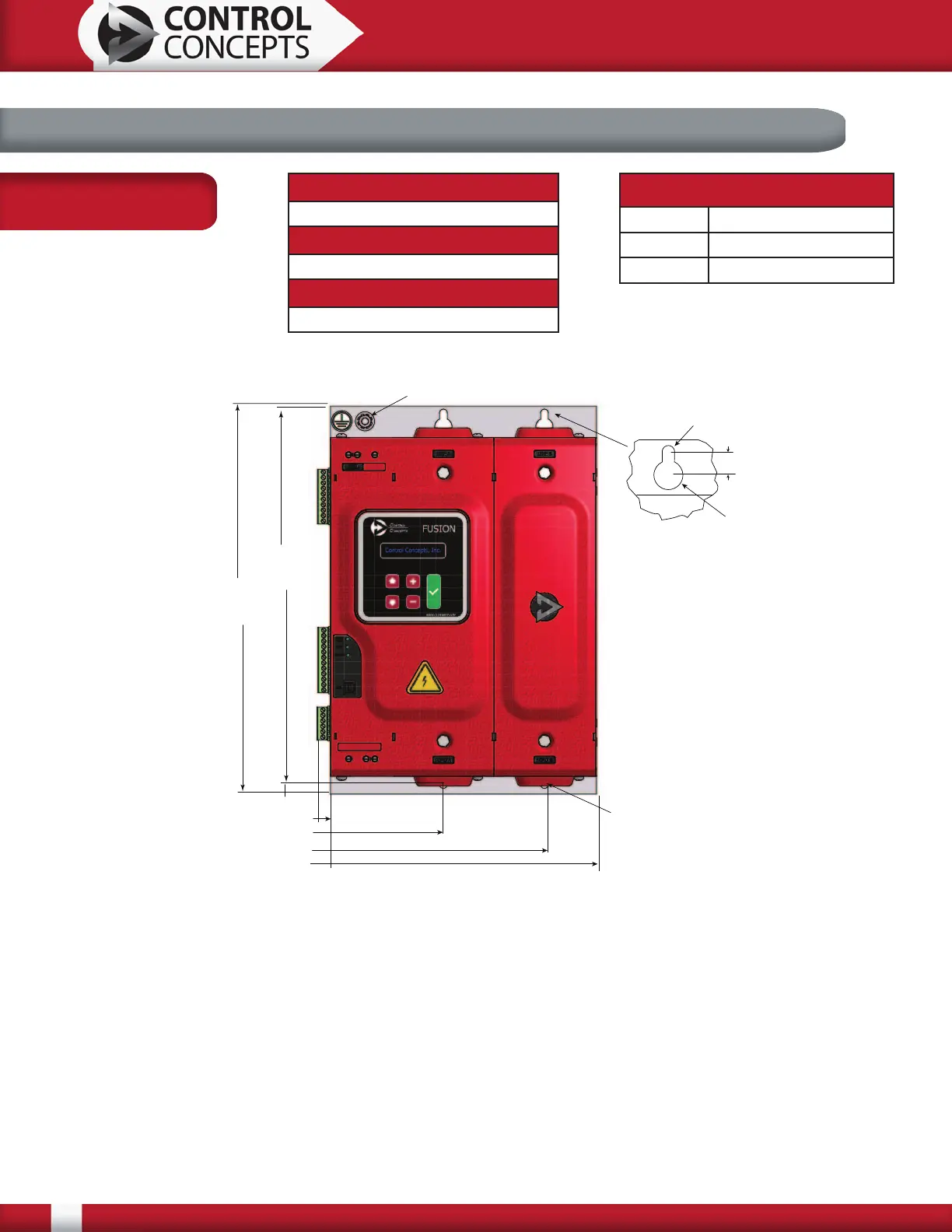

2.3 Mounting Dimensions for Two Module Controllers
Height
14.03 [356.5]
Width
9.61 [244.1]
Depth
9.57 [243.0] *
*Depth with DeviceNet adaptor is 9.82 [249.4]
Amp Weight (lbs[kg])**
10-50 22.5 - 24.5 [10.2-11.1]
80-125 24.0 - 25.5 [10.8-11.6]
160 26.5 - 28.5 [12.0-12.9]
** Weights are for controller only - Shipping
weight will vary
Dimensions:
Inches [mm]
PE GROUND M6 STU D
13.44
[341.4]
14.03
[356.5]
0.487 [12.4]
0.345 [8.8]
4.08 [103.6]
7.73 [196.3]
9.61 [244.1]
Ø0.281 [7.1]
R0.141 [3.6]
R0.313 [8]
0.50 [12.7]
