Compact FUSION Installation Manual Revision 3.50.2
Recommended Tightening Torque
For Line/Load Connectors
Wire Size (AWG) Screw Hex Drive
14 - 10 35 IN-LBS 75 IN-LBS
8 40 IN-LBS 75 IN-LBS
6 - 4 45 IN-LBS 110 IN-LBS
2 - 1 50 IN-LBS 150 IN-LBS
1/0 - 2/0 50 IN-LBS 180 IN-LBS
3/0 - 4/0 - 250 IN-LBS
250 - 325 IN-LBS
Recommended Tightening Torque For
Universal Input 100-240 VAC, 50/60 Hz
Wire Size (AWG) Torque
12 - 18 GA 5.0 IN-LBS
3. WIRING
Control Concepts configures and tests each controller before shipping. Once received, the controller
is ready to install. The following sections will describe how to properly wire the unit with the
recommended fusing.
For line and load connections use copper conductors rated 75°C minimum. In the wiring drawings
the wire acceptance is listed with the entry heights. See torque tables for proper tightening.
A ground wire is required for proper operation. Use 10 AWG or larger wire.
Note: Wire controllers to conform with the National
Electric Code (NEC) and/or other local wiring codes.

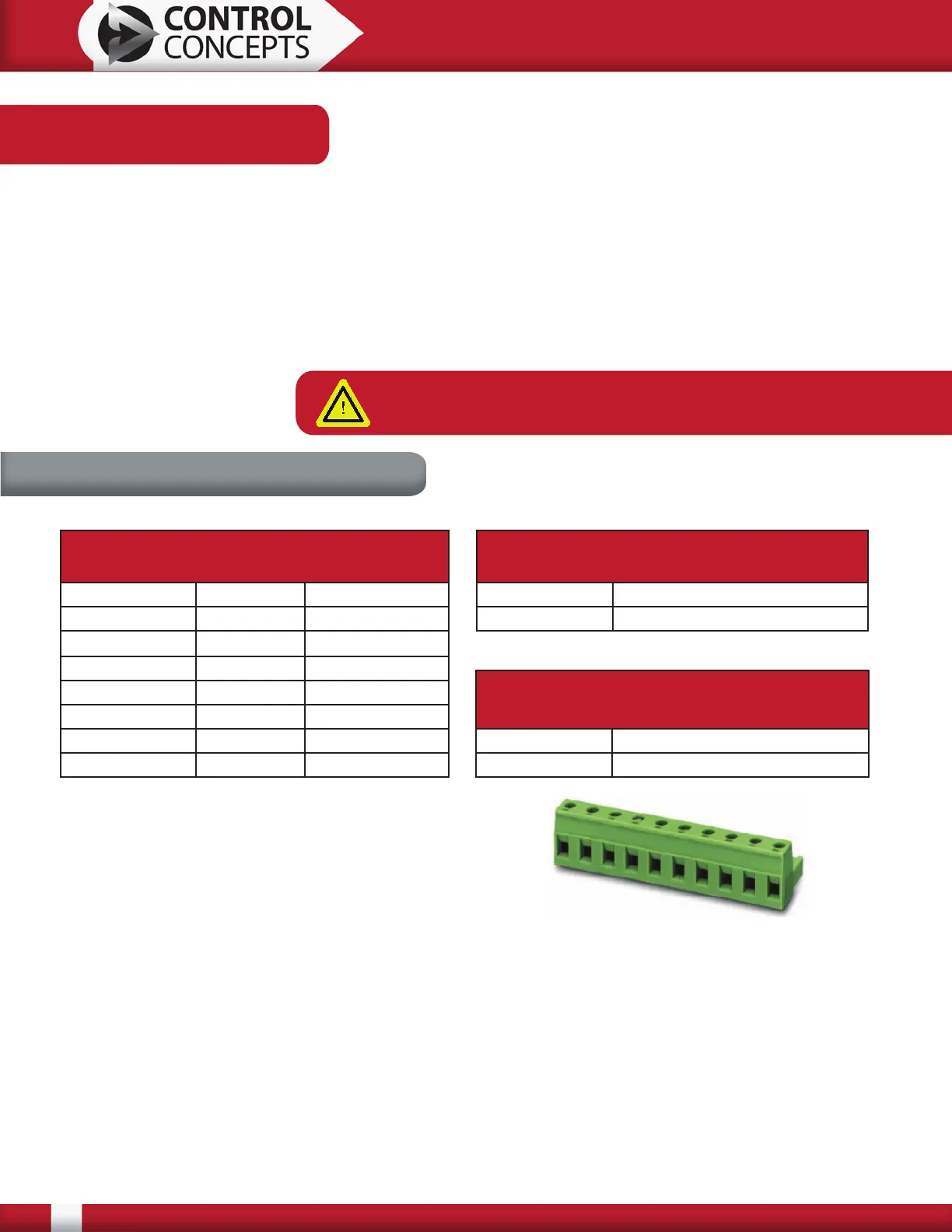

3.1 Torque Specications
Recommended Tightening
Torque For Green Connectors
Wire Size (AWG) Torque
12 - 26 GA 5.0 IN-LBS
