Compact FUSION Installation Manual Revision 3.50.2
The universal input power may be wired with 12 - 18
AWG wire. The acceptable voltage range is 100
- 240 Vac at 50/60 Hz. This supplies power to the
on-board switch mode power supply which provides
power to the circuitry and cooling fans.
The line is internally fused with a 4 Amp fast blow
fuse. If connected line to line, the neutral must also
be fused with a 4 Amp fast blow fuse.

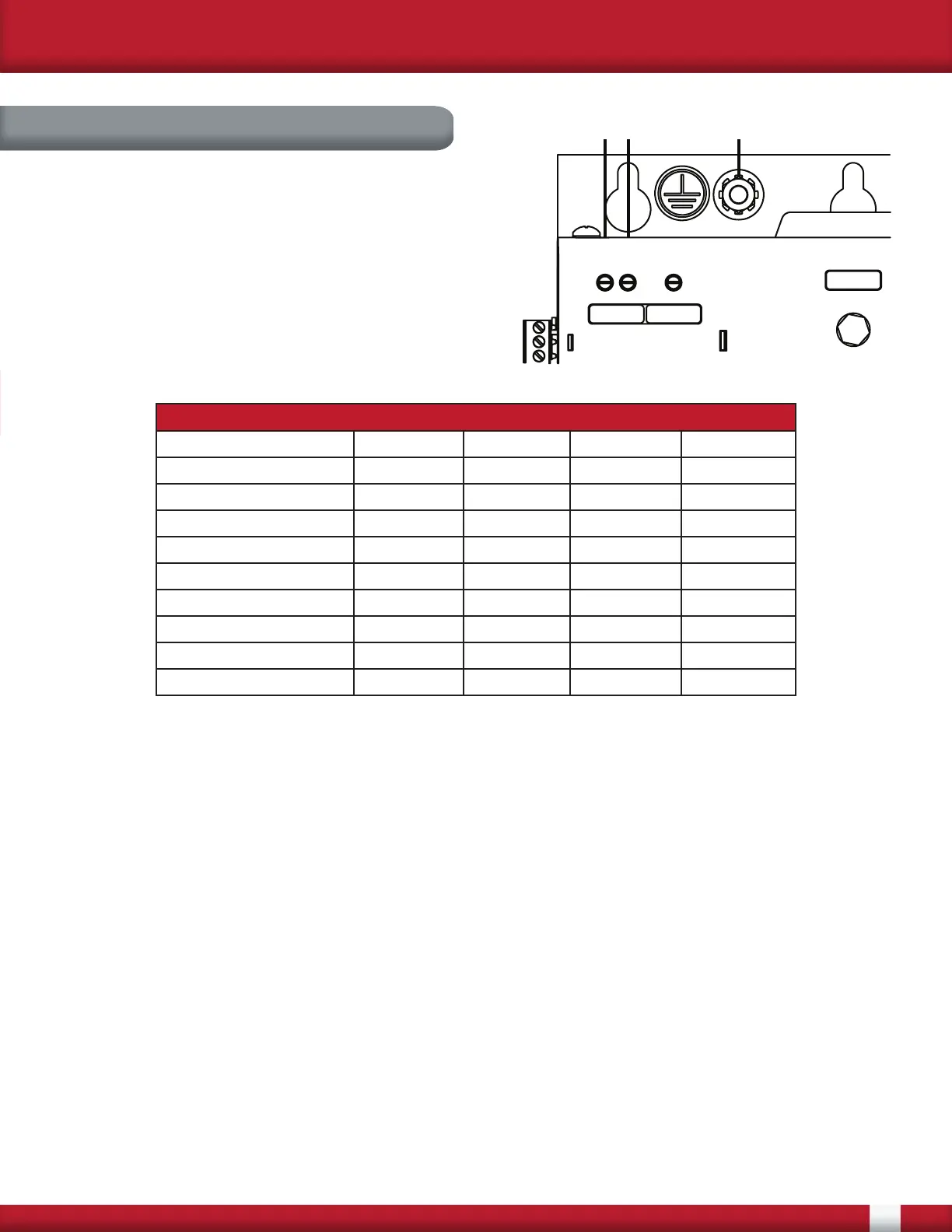

INPUT PWR
REF A
LINE
AC/N AC/L PE GND
AC/N AC/L
3.2 Universal Input Power
A1 B1
Typical Power Consumption @ 120 VAC (Watts)
10-25A 50A 80-125A 160A
1Ø - 1 Zone 23.4 23.4 35.4 53.4
1Ø - 2 Zone 28.3 34.3 40.3 58.3
1Ø - 3 Zone 38.3 62.3 62.3 92.3
1Ø - 4 Zone 43.2 67.2 67.2 97.2
1Ø w/ Pass - 1 Zone 23.4 23.4 35.4 53.4
1Ø w/ Pass - 2 Zone 33.4 33.4 57.4 87.4
3Ø - 2 Leg - 1 Zone 28.3 34.3 40.3 58.3
3Ø - 2 Leg w/ Pass 33.4 33.4 57.4 87.4
3Ø 38.3 62.3 62.3 92.3
