Compact FUSION Manual Certications
External EMI filters must be used in conjunction with the FUSION series power controllers to maintain CE
immunity* approval. The following filters were used during the immunity testing.
Universal input power: Line input power:
Schaffner filter Schaffner filter
P/N: FN 2030-3-06 P/N: FN 3270H-35-33
The Schaffner filter for universal input power, or it’s equivalent, may be used as listed above. The line input
power filter however, will need to be sized accordingly for your load. Please contact Schaffner EMC Inc. for
help finding the appropriate filter.
Schaffner EMC Inc.
52 Mayfield Avenue | Edison, New Jersey 08837 / USA
T 1-800-367-5566 | T 732-225-9533 | F 732-225-4789
usasales@schaffner.com | http://www.schaffner.com/us
*No filtering is required for emissions.

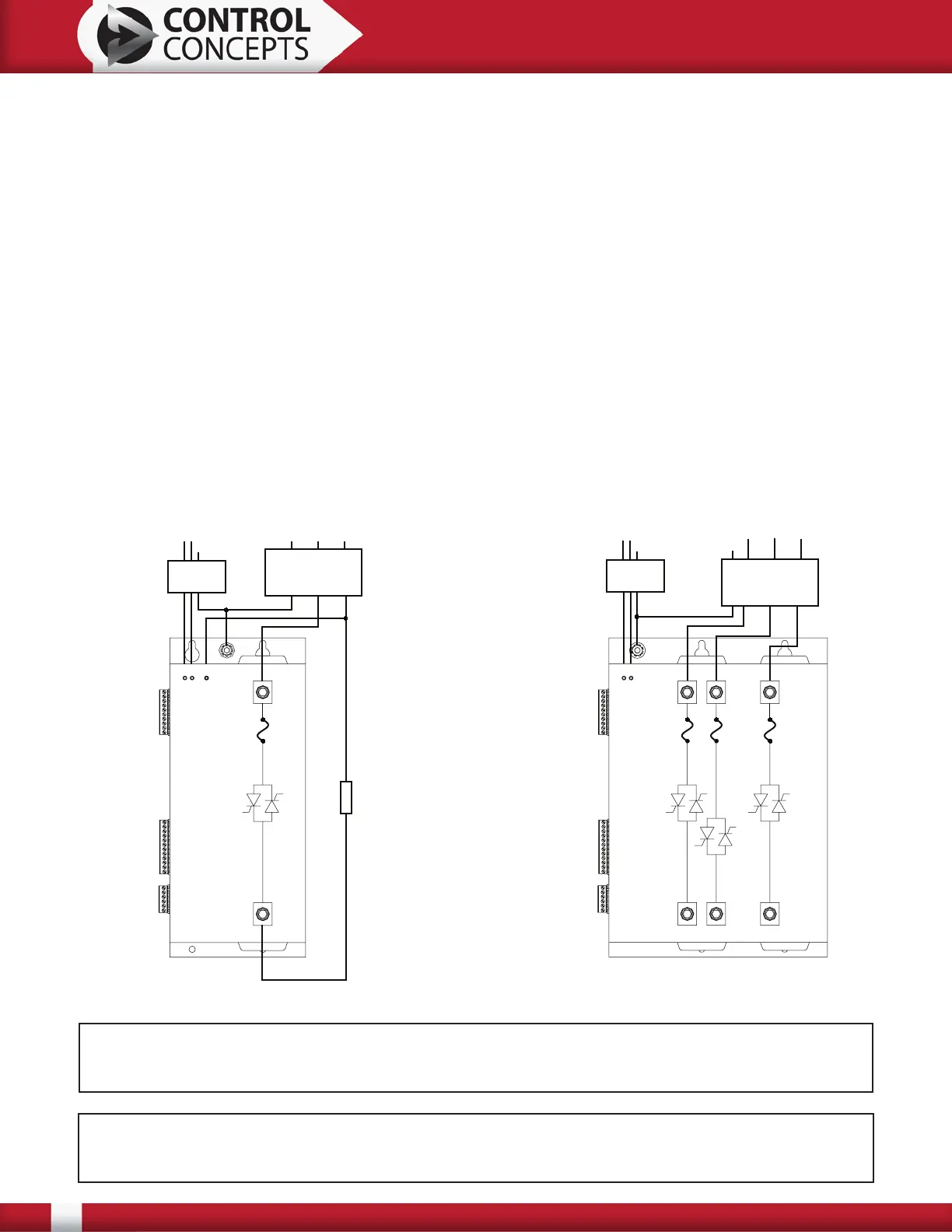

Wire filters as shown below:
1 Phase Controller 3 Phase Controller
Other wire diagrams are available, for models not listed here, by contacting Control Concepts, Inc.
ATTENTION
This product has been designed for class A equipment. Use of this product in domestic environments may cause
radio interference, in which case the user may be required to employ additional mitigation methods.
NOTICE
This product has been designed for environment A. Use of this product in environment B may cause unwanted
electromagnetic disturbances, in which case the user may be required to take adequate mitigation measures.
100-240
Vac
Line
A
Line B Line C
Line I nput
F ilter
AC/LAC/N
FN2030
-3-06
PE G ND
PE G ND
PE G ND
100-240Re f A
Vac
L
O
A
D
Load A
PE G ND
Line A Line BAC/LAC/N
PE G ND
FN2030
-3-06
Line I nput
F ilter
PE G ND
1 1
2
1
1
1
