9 THE QUICK-FIT GSM PARAMETERS
To support versatile functionality of QUICK-FIT GSM different parameters are used. The
parameters are divided in logical sections and are described in the following chapters.
9.1 ALARM SUPPORT
Alarm reporting is supported by group of different parameters. First section is used to
define the relations needed for alarm to be trigged. The second section is used to report
alarm.
9.1.1 ALARM TRIGGERING
Parameters are used to control (filter) the triggering of the alarm inputs.
9.1.1.1 IN parameter
Alarm and reset input can be triggered in 2 different ways. The status of the input can
either be normal closed (N.C) or normal open (N.O.) trigged with GND.
When you need the input feedback information it is possible to receive SMS when input
returns from alarm to normal position. To receive return SMS use IN setting 4 and 5.
⇒ IN = 0 – Normal Open – triggered with negative voltage (GND)
⇒ IN = 1 – Normal Close – breaking negative or positive voltage loop
⇒ IN = 2 – Not in use
⇒ IN = 3 – Not in use
⇒ IN = 4 = IN = 0 + input reset SMS
⇒ IN = 5 = IN = 1 + input reset SMS
⇒ IN = 6 – Not in use
GND
INPUT 1-4
N.O.
contact
GND
1-4INPUT
N.C.
contact

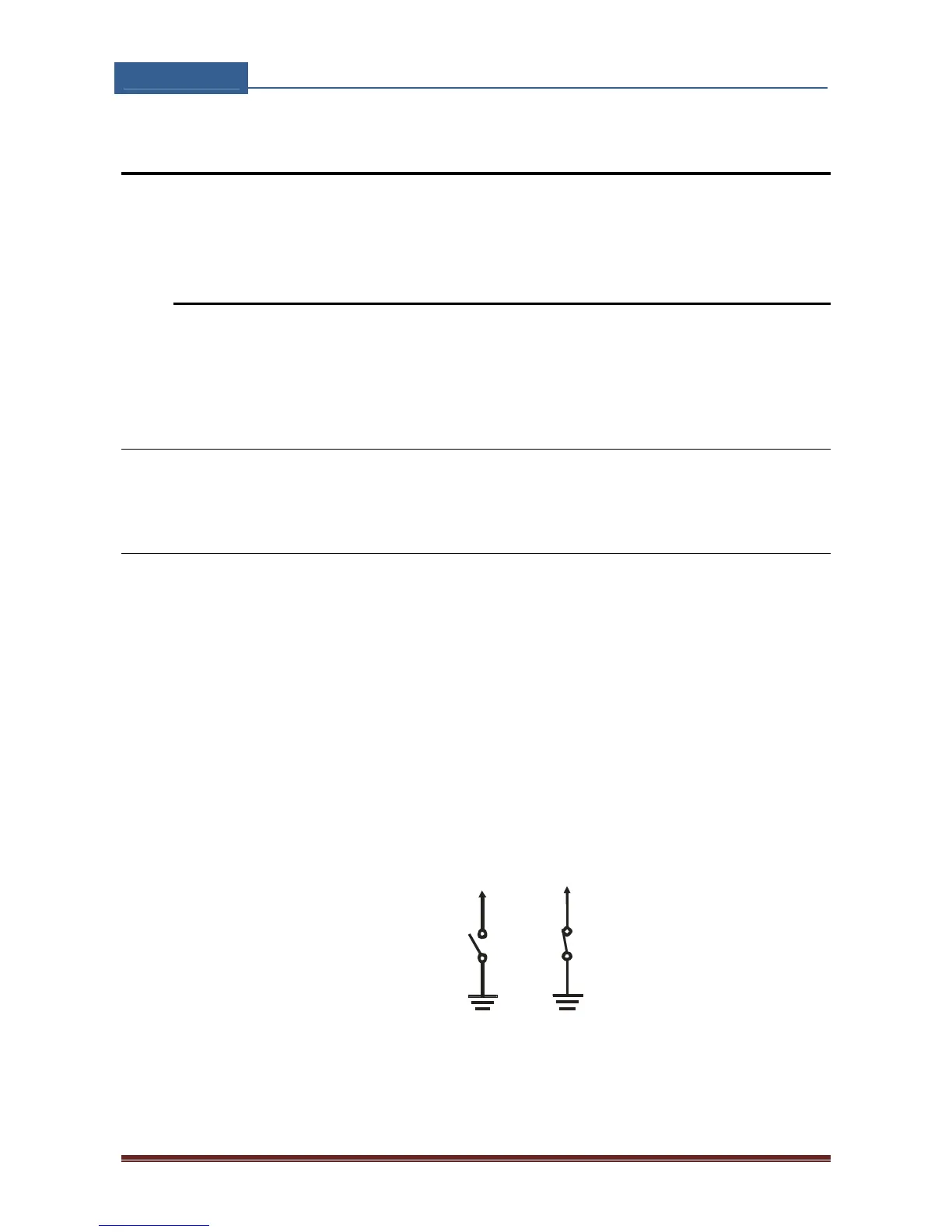

Figure 2: Input Connection diagram
