Controls 58-C0181/DGT User Manual

Manuale di Istruzione
Instruction Manual
04/02/2015 58-C0181/DGT Rev. 2 EN
30

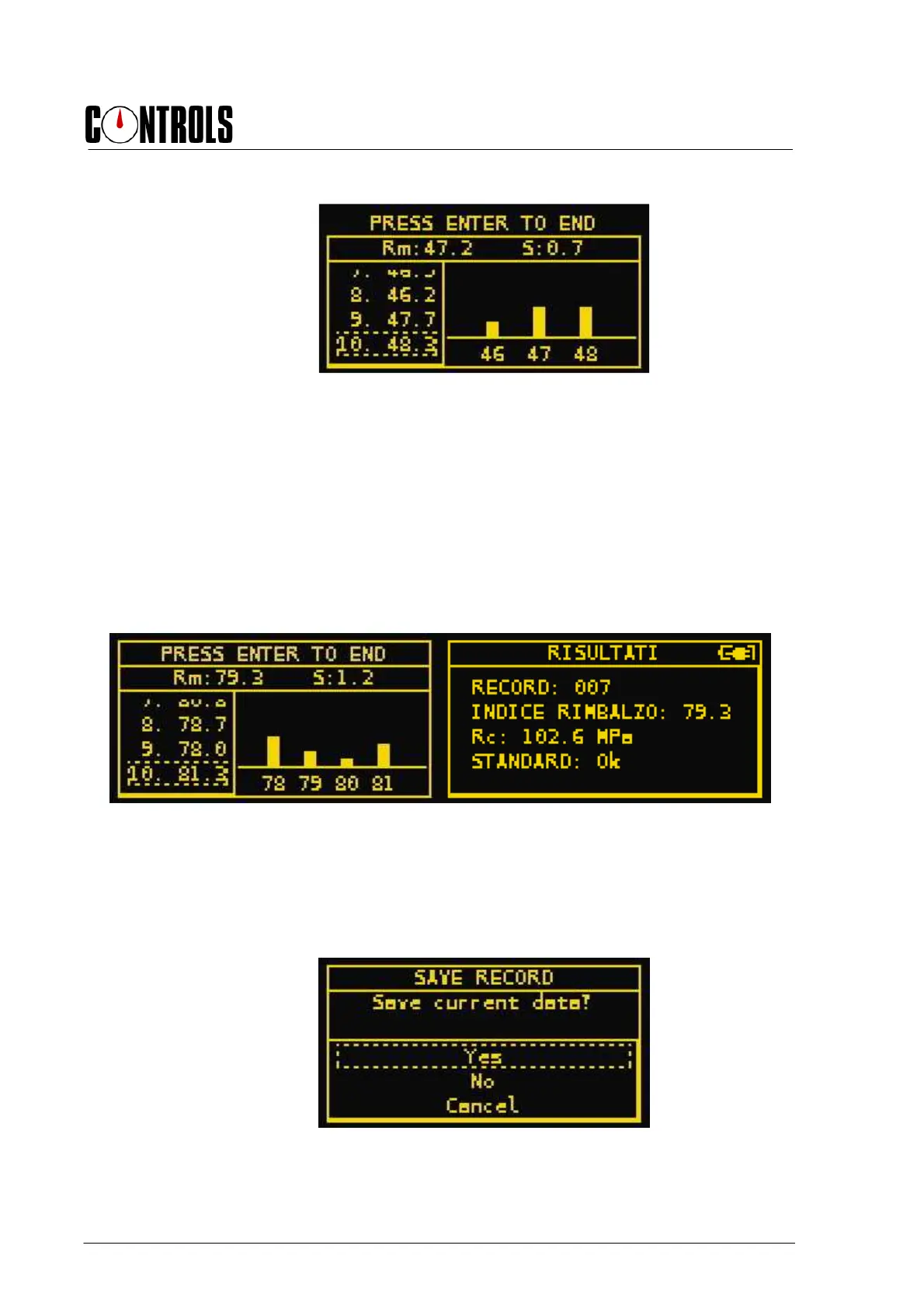

The instrument is ready to take measurements.
After each rebound the screen is updated as follows:
Fig. 3-23
• In left column on the screen, the rebound numerical values measured
• In the right columns on the screen, the measurement represent with bar graph
• In the upper part of the screen, the mean value Rm and the standard deviation S,
updated after each measurement
Press ESC at any moment to show the set parameters.
With the button ◄ it is possible to erase, after confirmation, the last measurement in the
list.
When the set number of rebounds of the selected method/Standard is reached, the
instrument asks to perform the calculation pressing the button ENT:
Fig. 3-24
The RESULTS shows the progressive number of the test RECORD; the mean rebound
value; the corresponding estimate of the calculated strength resistance and the outcome of
conformity to the selected standard.
Press ENT again to save the set of measurements and the relevant results.
Pressing ESC the instrument allows adding additional rebound measurements before
saving it.
Fig. 3-25
All information of a measuring set are saved into the memory of the instrument under the
record number indicated.
