Convotherm OEB 10.10 Installation Manual

Connecting up the combi steamer
Installation manual 52

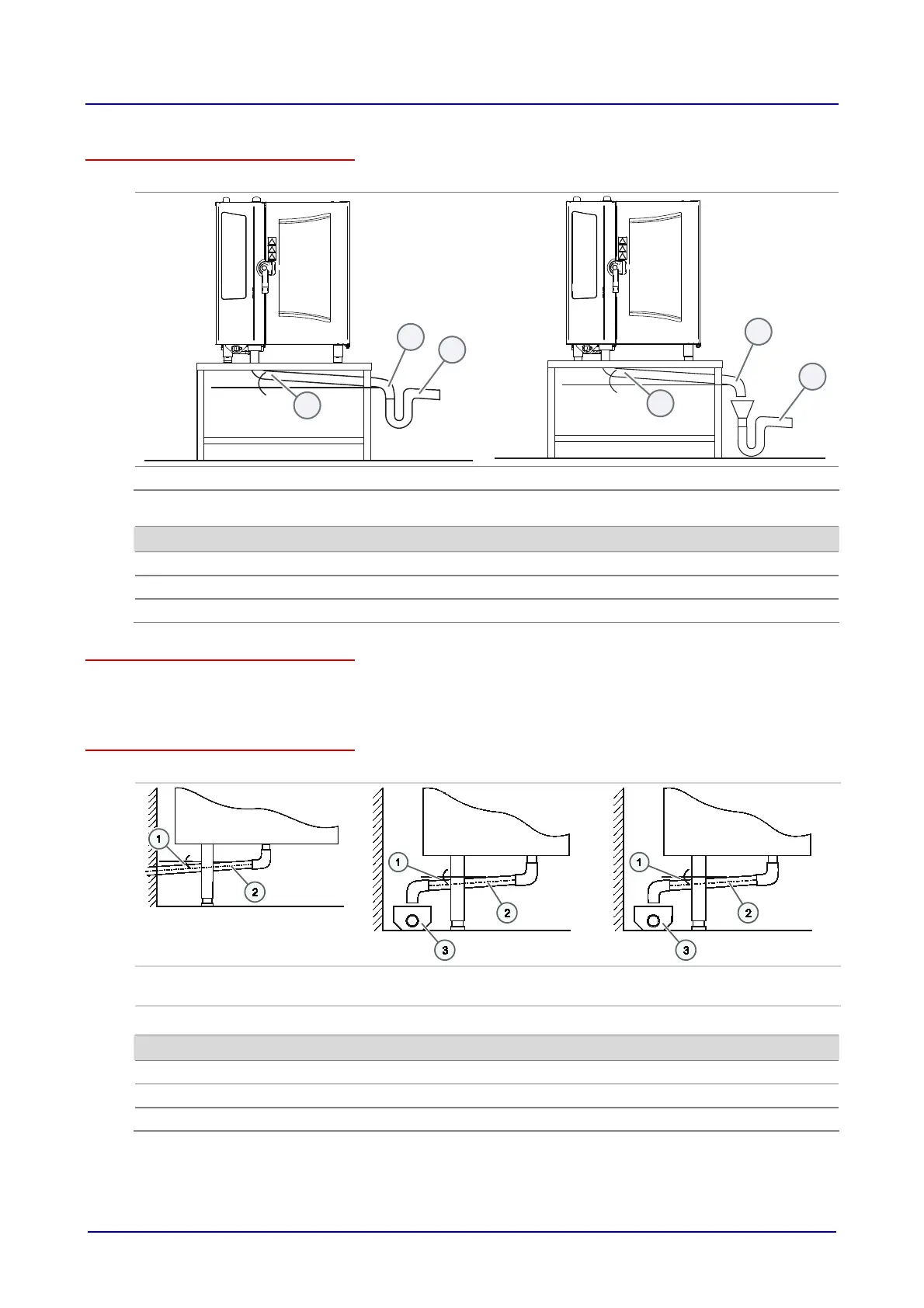

Connection diagram for table-top appliances
The following diagram shows the drain installation diagram for table-top appliances:
3
2
1
1
2
3
Permanent connection (recommended) Funnel waste trap
Key:
Item Meaning
1
Slope 5% (3°)
2
Waste pipe DN 50 (minimum internal diameter = 46 mm)
3
Drain pipe DN 50 (minimum internal diameter = 46 mm)
Drain connection for floor-standing appliances
The drain should preferably be connected permanently using a fixed rigid pipe. Other connection
options include a rigid pipe via an open drain (e.g. open tank) or gully.
Connection diagram for floor-standing appliances
The following diagram shows the drain installation diagram for floor-standing appliances:
Permanent connection (recom-
mended)
Open tank Gully
Key:
Item Meaning
1
Slope 5% (3°)
2
Waste pipe DN 50 (minimum internal diameter = 46 mm)
3
Tank with DN 50 drain pipe (minimum internal diameter = 46 mm)

Convotherm OEB 10.10 Specifications

General

Model	OEB 10.10
Capacity	10 x 1/1 GN
Power Supply	Electric
Cooking Modes	Convection, Steam, Combination
Voltage	400 V
Frequency	50/60 Hz
Temperature Range	30°C to 300°C
