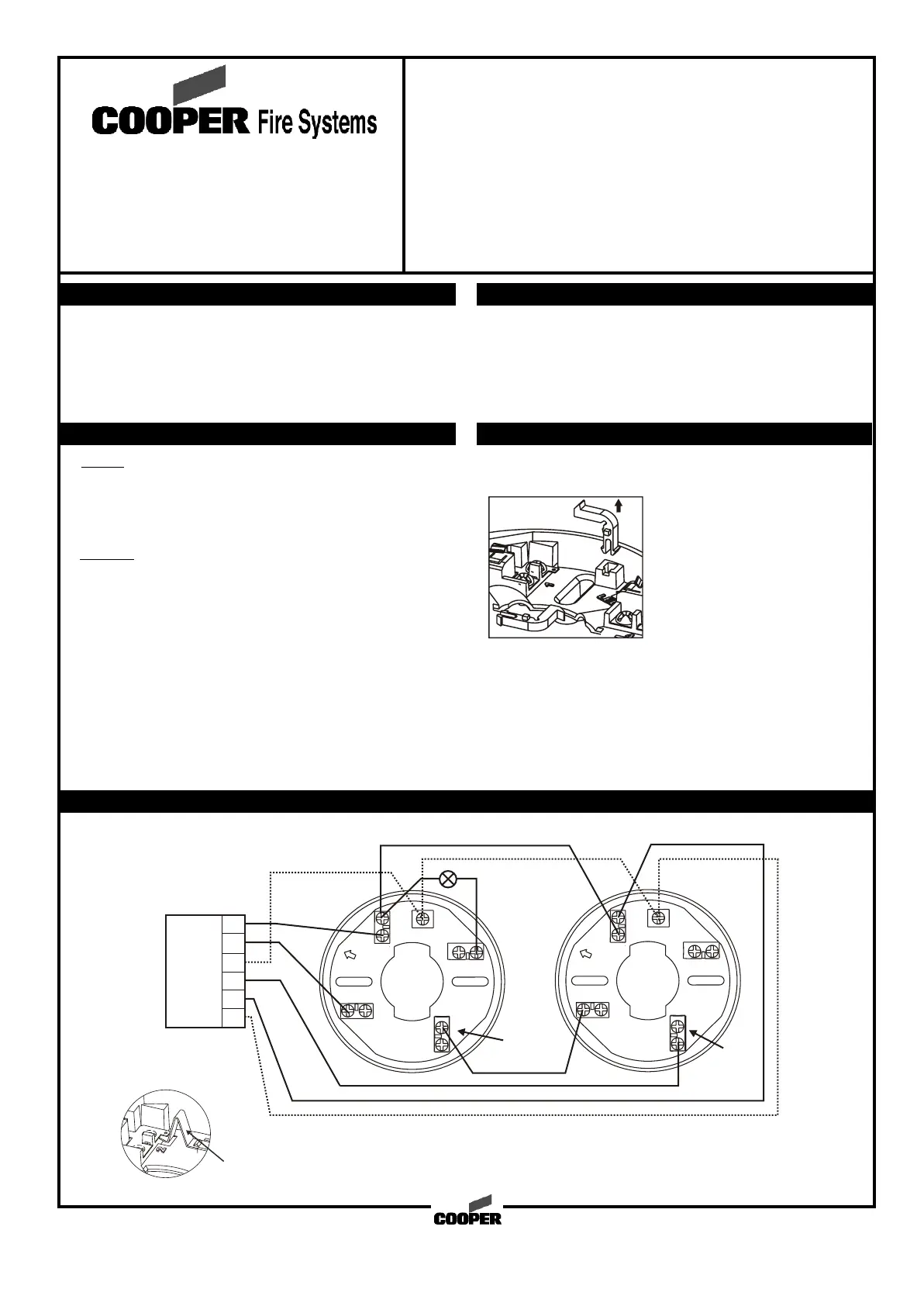

Installation Guide for
CAB300 Analogue Sensor Base
and
Series 300 Analogue Sensors
Order Codes:
CAB300 - Specification:
Installation: Locking Tabs:
Wiring Schematic:
CAI310 -
CAP320 -
CAPT340 -
CAH330 -
CAB300 -
Supply Voltage
Cable Size (Min-Max)
Recommended Cable Types
Mounting Hole Centres
18-30V dc
0.5 to 2.5mm²
Draka - FIRETUF
Pirelli - FP200
MICC
50 - 80mm
Wiring
General
Uneven mounting surface - uneven surfaces may cause the
base to deform when the mounting screws are tightened, it
is recommended that the screws are loosened or the base
be re-sited.
WARNING:
Insert the sensor onto the base and rotate fully clockwise until
it locates, continue to rotate until the sensor ‘clicks’ into
position.
The sensor is now locked into position and can only be
removed by inserting a suitable tool (thin bladed screwdriver)
into the hole located in the sensor cover whilst rotating the
sensor anti-clockwise.
1
2
DOC. REF.: PINST300A ISSUE A
Remove the standard fit
retaining clip.
Insert the locking clip which
is located at the centre of
the base as shown.
1.
2.
S+
F
F+
S
_
_
__
_
_
_
_
_
_
Loop Finish
Loop Start
1
3
2
4
E
L
E D
1
3
2
4
E
L
E
D
Attention: If using the outer connection on terminal 2, ensure the operation of the switch is not inpeded and that there is noh sort circuit
between terminal 2 and t
.
he switch contact.
Ensure that the cable does not short onto the contact
Cooper Fire Systems
Analogue Addressable
Fire alarm Panel
See note
below
See note
below
+VE IN
RemoteIndicator
LED - (Optional)
-VE IN
+VE OUT
-VE OUT
Analogue Ionisation Sensor
Analogue Photoelectric Sensor
Analogue Photo/Heat Sensor
Analogue Heat Sensor
Analogue Detector Base
Analogue Ionisation Sensor
Analogue Photoelectric Sensor
Analogue Photo/Heat Sensor
Analogue Heat Sensor
Analogue Detector Base
The mounting base includes an optionfeature to prevent
the removal of the sensor without the use of a tool.
The mounting base includes an optionfeature to prevent
the removal of the sensor without the use of a tool.
Each base terminal is suitable for clamping up to 2 cable
conductors (maximum size 2.5mm²
Suitable for mounting on to back boxes with 50 to 80mm
fixing centres
Each base terminal is suitable for clamping up to 2 cable
conductors (maximum size 2.5mm
Suitable for mounting on to back boxes with 50 to 80mm
fixing centres
²
If difficulty is experienced when mounting the sensor, this
may be due to the following:
Wiring causing and obstruction- Move or shorten wires
If difficulty is experienced when mounting the sensor, this
may be due to the following:
Wiring causing and obstruction- Move or shorten wires
