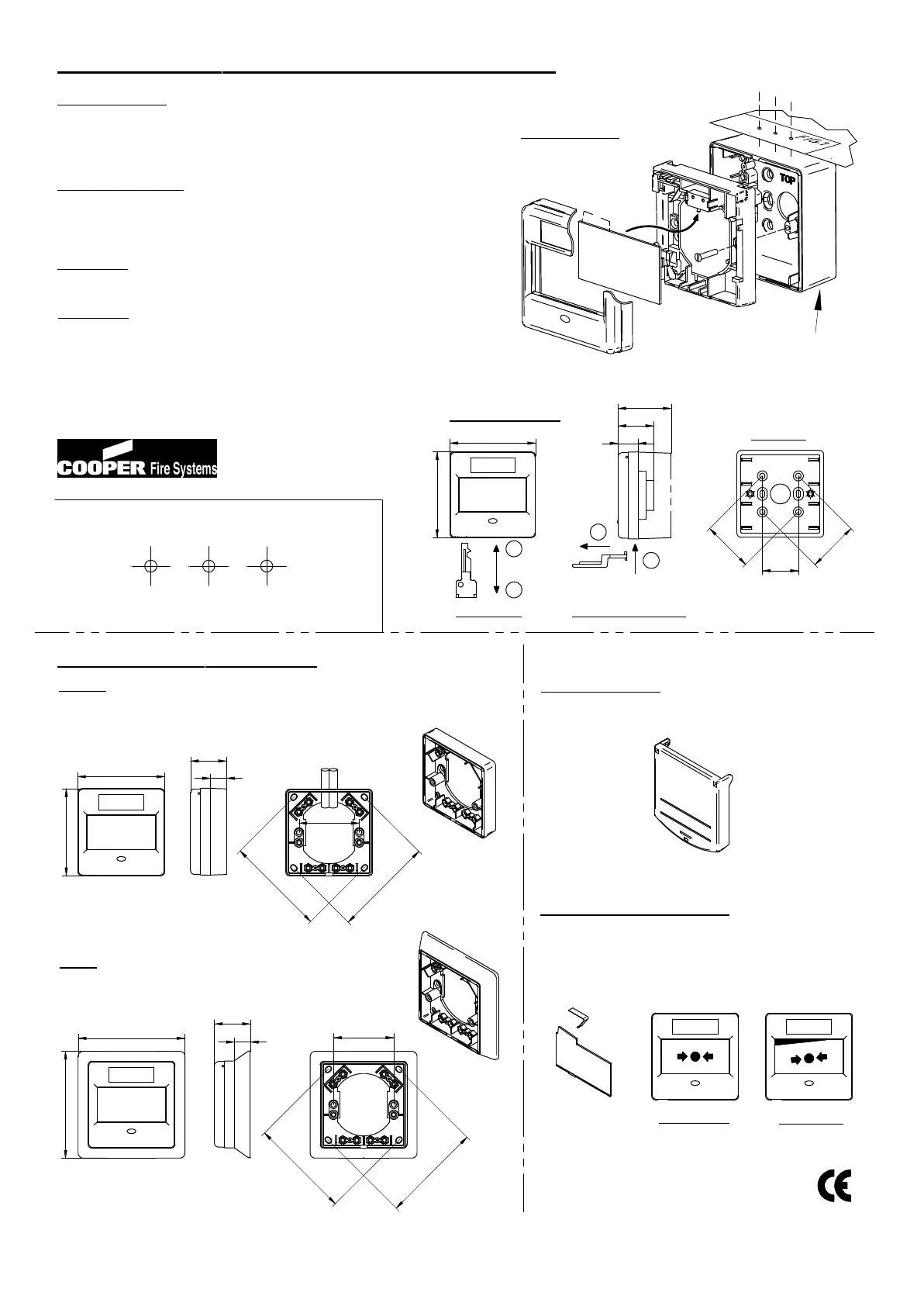

ADDRESSABLE CALL POINT INSTALLATION DETAILS
25-5652-B
FIG.1
B
A
B
Fig.2 INSTALLATION
36
5
1
5
1
Fixing Details
Fig.3 DIMENSIONS (mm)
FRONT COVER REMOVAL
1
2
TEST & RESET
87
87
FLUSH CALL POINT (order code CBG370)
The flush call point will mount onto any standard U.K. single gang back box with a depth of 25mm or
gr
eater. Consideration should be given to the amount of cabling space at the rear of the call point,
i.e. a deeper box or spacer eases installation.
SURFACE CALL POINT
To make a surface mount Call Point a seperate Back Box (order code CXBB/R - pack of 10) is required.
There is provision for rear cable entry, and by using the template below (fig.1), cable holes can be drilled
into the top or bottom of the back box to accept one (A) or two (B) cable glands - Max. dia.20mm (see fig.2).
COMPATIBILITY
Suitable for use with Cooper Fire Systems analogue addressable panels with soft addressing protocol.
2
1
53
35,5
20
Test Key
Test
Key
PUSH
FIRMLY
Hole positions for
cable glands
SPECIFICATION
Supply Voltage
Cable Size
Recommended cable
Standby current
Alarm current
Operating temperature
Material
IP Rating
: 18 ~ 30 Vdc
: 0.5 ~ 2.5mm
: FIRETUF, FP200 or MICC
: < 170 uA
: < 6 mA
: -25 to +55 degrees C
:ABS Plastic
: IP42 (IP67 Weatherproof version available)
Security House
Vantage Point Business Village
Mitcheldean
Glos. GL17 0S
T
Z
el: + 44 (0) 1594 541900
Surface Call Point
Back Box
(CXBB/R)
SPACER
The spacer (CXS/R) can be fitted instead of the back box to reduce the depth of the Call Point.
It can be mounted to any standard U.K. single gang back box or directly to a wall.
Provision has been made for surface wiring (one or two dia.8mm cables max.)
CALL POINT ACCESSORIES
87
87
36
16
10
0
1
0
0
60
1
0
7
107
16
36
10 0
10
0
60
BEZEL
The bezel (CXBZ/R) can be fitted to cover unsightly marks on the wall. It can be
mounted to any standard U.K. single gang back box or directly to a wall.
Surface wiring option
CLEAR HINGED FLAP
The Clear Hinged Flap gives extra protection from accidental operation.
(Order code CXPC)
RE-SETTABLE PLASTIC ELEMENT
The re-settable plastic element and spring replaces the glass element.
When the re-settable element is pushed, a visible flag will appear indicating
the call point has been activated.
Re-settable elements are available in packs of 10. (order code CX/P/KIT)
Clear Hinged Flap
Spring
Normal Condition
Re-settable
Plastic Element
Alarm Condition
( with visible flag )
