All dimensions are in inches (millimeters).
Appendix D—Outline Dimensions
Model A A1 B C D D1 E F G H
91-109, -109A
1-3/16
(30.2)
5-1/4
(133.4)
12
(304.8)
13-5/16
(3 38.1)
31-1/2
(8 0 0.1)
—
1-1/2
(3 8.1)
15
(381.0)
34
(863.6)
31-3/16
(792.2)
291-109, -109A
5
(127.0 )
—
12
(304.8)
15-3/4
(400.1)
39-1/2
(1,003.3)
—
1-1/2
(3 8.1)
15
(381.0)
42
(1,066.8)
30 -7/8
(784.2)
491-109, -109A
5-3/4
(14 6.1)
—
15
(381.0)
18
(4 57. 2)
45-1/2
(1,155.7 )
—
1-1/2
(3 8.1)
18
(4 57. 2)
48
(1,219.2)
33-5/8
(854.1)
691-109, -109A
8-1/4
(209.6)
—
17
(431.8)
19 -1/4
(489.0)
49-1/2
(1, 257. 3)
19-3/4
(501.7)
1-1/2
(3 8.1)
20
(508.0)
52
(1,320.8)
43-1/8
(1,095.4)
Model J K L M N P R S T U
91-109, -109A
5-1/4
(133.4)
28-3/16
(716.0)
3/4"
NPT
2-5/16
(58.7)
3
(76.2)
1-1/4
(31.8)
3-5/8
(92.1)
9-1/2
(241.3)
2-3/4
(69.9)
6-3/4
(171.5)
291-109, -109A
5-1/4
(133.4)
28-1/2
(723.9)
3/4"
NPT
2-11/16
(68.3)
3
(76.2)
1-1/4
(31.8)
3-7/8
(98.4)
9-1/2
(241.3)
4-1/2
(114.3)
6-3/4
(171.5)
491-109, -109A
5-1/4
(133.4)
30 -1/8
(766.8)
1-1/4"
NPT
4
(101.6)
4
(101.6)
1-1/4
(31.8)
4-1/16
(103.2)
10-7/8
(276.2)
5.25
(133.4)
8-1/8
(206.4)
691-109, -109A
5-5/8
(142.9)
39-1/8
(993.8)
1-1/2"
NPT
6-3/8
(161.9)
4
(101.6)
1-1/4
(31.8)
4-9/16
(115.9)
21-7/16
(544.5)
4-3/4
(120.7)
7-3/4
(196.9)

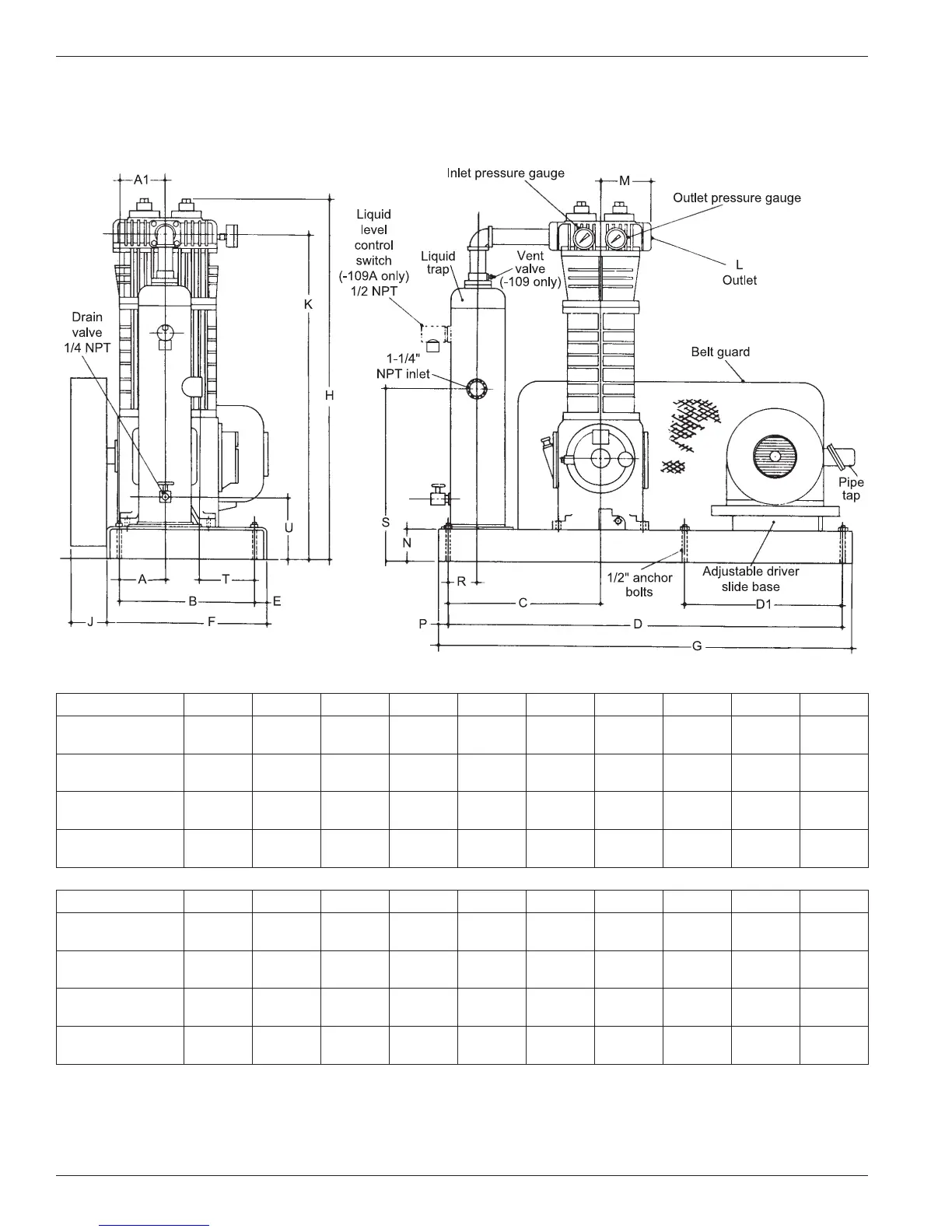

Models 91–691 with -109 or -109A Mounting (Model -109A Shown Below)
