Corken 91 - Page 49

All dimensions are in inches (millimeters).

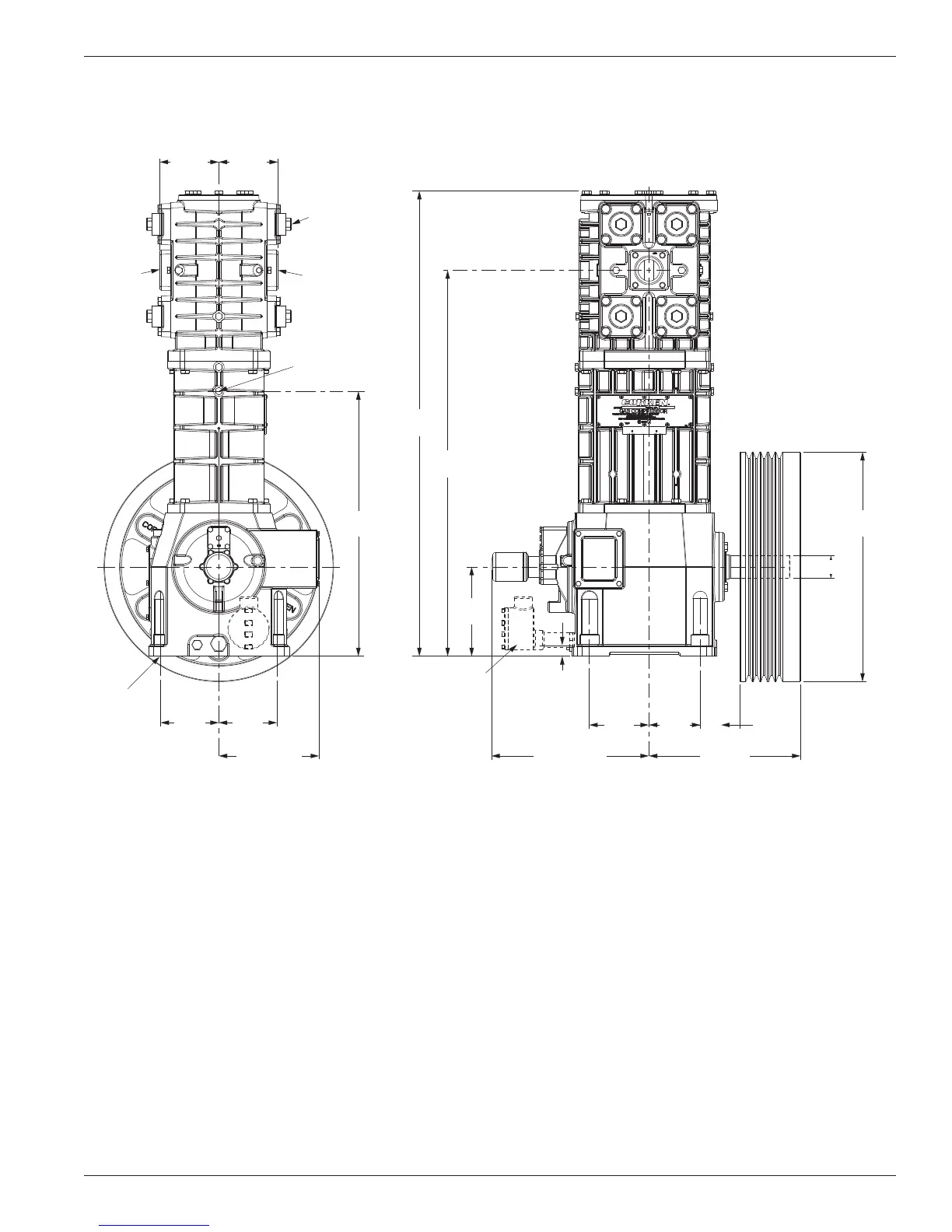

Appendix D—Outline Dimensions
Inlet 2"
slip-on
weld ange
14-1/2 (369)9-1/4 (235) 14 (356)
2-1/8 (54)
21.2 (539)
diameter
4-3/4
(121)
5-1/2
(140)
5-3/8
(137)
5-7/16
(139)
5-7/16
(139)
5-3/8
(137)
8-1/4
(210)
24-7/16
(621)
35-5/8
(905)
43
(1,092)
1
(25)
5-5/8
(143)
Crankcase
oil heater
(optional)
Discharge
2" slip-on
weld ange
1/4"-18 NPT
for drain-both
sides
Four
9/16" (14)
diameter
holes
Suction
valve
unloaders
(optional)
Model D891 Bare with Flywheel
49
