All dimensions are in inches (millimeters).

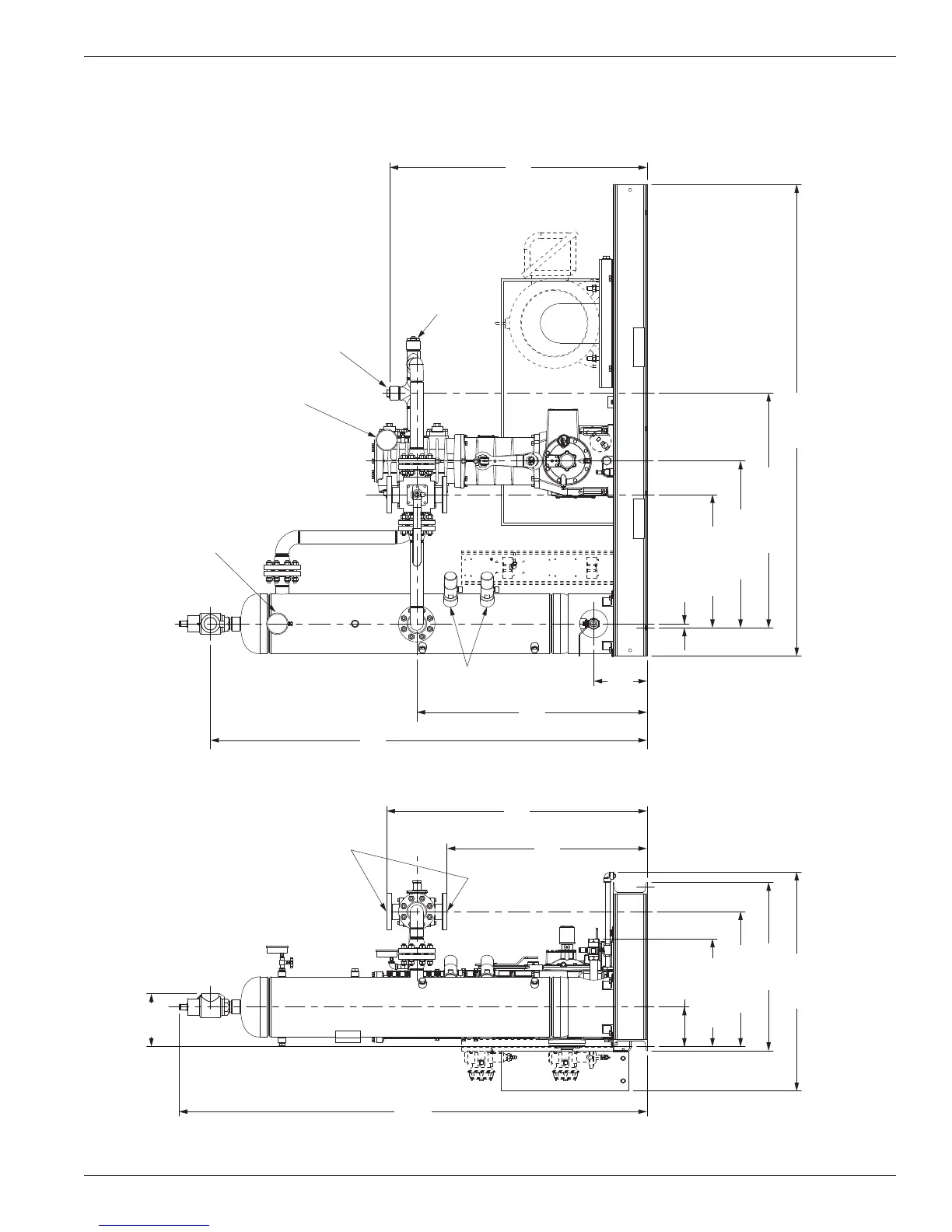

Appendix D—Outline Dimensions
84 (2,134)
overall
41-13/16 (1,0 62)
39 (991)
overall
30 (762)
24 -1/16 (611)
19-3/16 (487)
29-3/4 (756)
23-3/4 (603)
9-1/2
(241)
35-5/8
(905)
46-3/8
(1,178)
83-3/8
(2,118)
overall
7-1/16
(179)
9-7/16
(240)
41
(1,041)
45-13/16
(1,16 4)
77-3/4
(1,975)
3/4
(19)
1-1/2" FNPT
connection
Discharge
pressure
gauge
Suction
pressure
gauge
3/4" FNPT
connection
Inlet / outlet
four-way valve
2" Class 300
RF ange
Liquid
level
switches
Model FD891 with 107 Mounting
