Corken 91 - Page 85

7
8
9
1
2
3
4
17
5
6
6
10
15
11
Crosshead
assembly
13
12
16
24
23
14
7,8,9
18
19
20
23
22
21

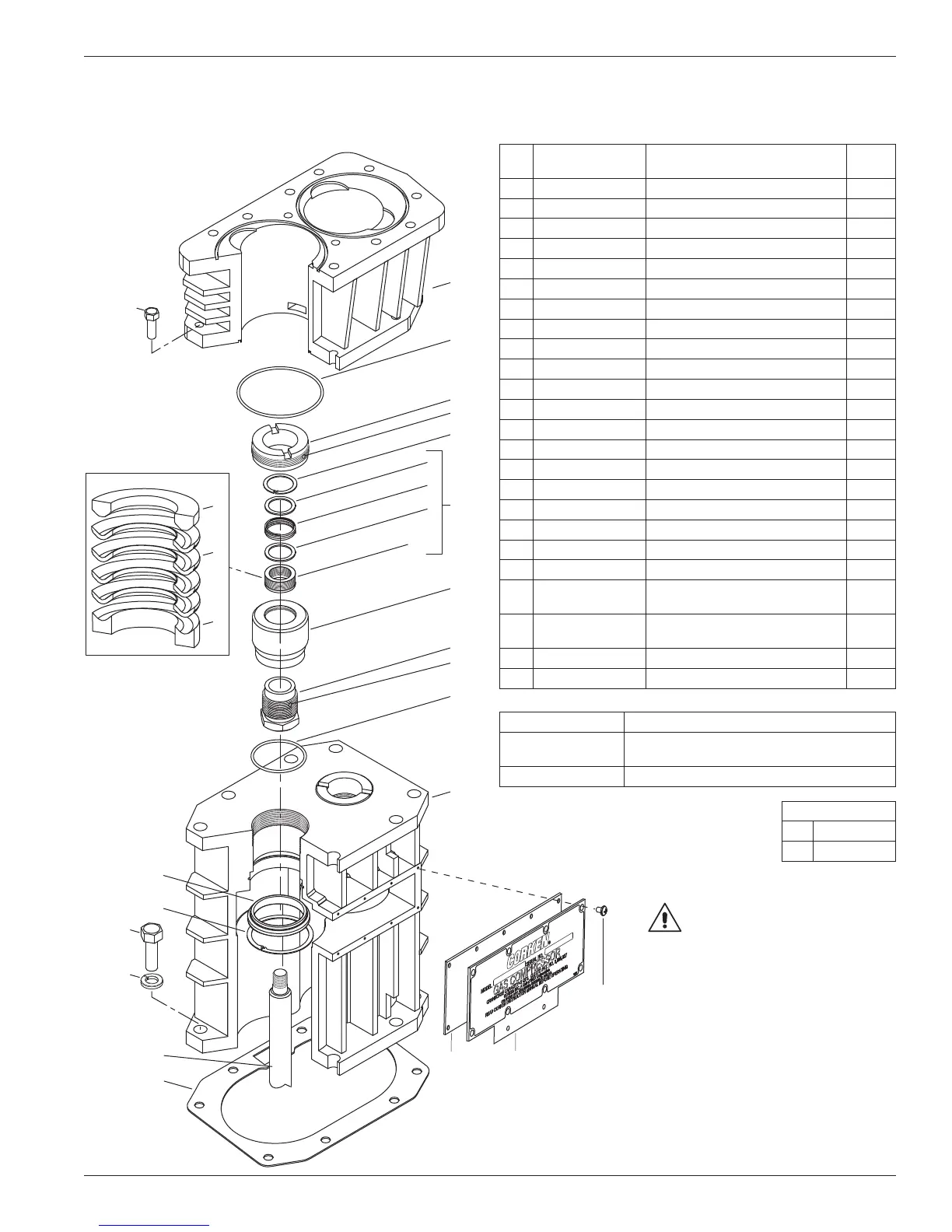

Appendix E—Parts Details for 691 and F691 Packing Assembly
Packing—Bill of Materials
Ref
No.
Part No. Description Qty.
1. 3457 Cylinder (model 691) 1
2. 2-247_
a
O-ring (cylinder) 2
3. 1749 -X Cartridge holddown screw 2
4. 5000-175 Retainer ring 2
5. 1731 Packing spring 2
6. 1728 Packing washer 2
7. 1724 Male packing ring 2
8. 1725-2 Packing ring 8
9. 1723 Female packing ring 2
10. 2407 Packing box cartridge 2
11. 2-233_
a
O-ring (packing cartridge) 2
12. 1748 Cartridge plate 2
13. 5000-350 Retainer ring 2
14. 2405 Crosshead guide 1
15. 1722-X Adjusting screw 2
16. 1761 Crankcase gasket 1
17. 1725 -2X Packing set 2
18. 1760 Inspection plate gasket 1
19. 1721 Inspection plate 1
20. 7003-025NC037E Screw (1/4"-20 x 3/8") 10
21. 1192
Locking device (for adjusting
screw, not shown)
2
22. 2893
Locking device cartridge holddown
screw (not shown)
2
23. 7005-050NC175A Bolt 16
24. 7206-050A Lock washer 16
Assembly Number Assembly Name
2405-X
Crosshead guide assembly with 1748 (2), 2405,
5000-350 (2)
3544-X4 Crosshead assembly “M” style
a
_ denotes material code. See material code chart
for details.
c
The quantity of 1454 packing rings required will
vary due to tolerances. Use Cone 4005 for packing
installation.
d
S/N XC30633 and later.
e
Registered trademark of the DuPont company.
Material Code
A Buna-N
B Neoprene
®d
WARNING
CAUTION: Always relieve pressure in
the unit before attempting any repairs.
85
