1.6.4 Blocking the Lift (“Hi-Tip”)

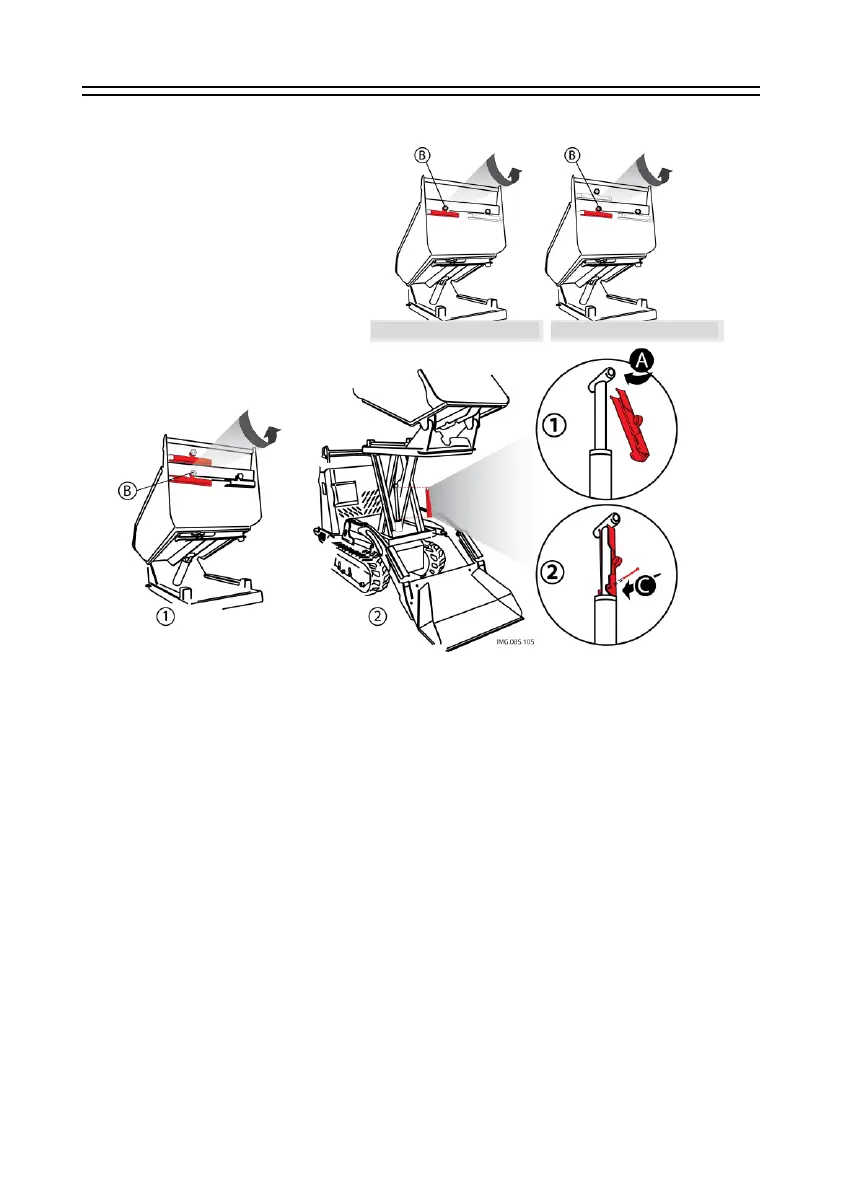

fig. 5 – Blocking the lift
The raising device for the body for high unloading (Hi-Tip) can be blocked in
a raised position to impede accidental movement, by using the safety pin
 Raise completely the skip;
 Turn off the engine;
 Remove the safety device "D", on the left side of the skip,
 remove it by unscrewing the knob B
 Insert the slots "A" of the bar near one of the two cylinders of the lift;
 Turn the bar is parallel to the
 Insert the pin "C"
 Pull down slowly with the engine off the lift until the interlocking device.
 After the operations, remove the device and place it back into place.
