cormidi Dumper - 4.4 Tracks

Maintenance
50
The correct level is obtained when the oil reaches the line of MAX , take
care all cylinders are closed(v. Fig. 43).
.
4.3.3 Restoring Level
• Unscrew the "A" tank "B";
• Reset. the level adding specific oil from the hole of the breather cap "A";
• Screw the pin "A"
• Press briefly levers driving and control levers;
Stop the engine and check the oil level on the pin "A" reaches the line of
the "MAX" and, if necessary, repeat the process.
4.4 TRACKS
4.4.1 Check and if necessary adjust the rubber track tension
Every 8 hours
Register the tension of the tracks
The correct tension of the tracks is im-
portant in order to guarantee their
longevity and for your own safety: to
check it, apply a pressure of 5 kg on
the track and check that the arrow is at
about 20 mm.
tension of the tracks correctly:
 Take off the cover “B” by unscrewing
the two screws “A”;
 Using two wrenches, loosen the
counter-nut “C”;
 Regulate the tension by working on
nut “D”;
 Check that the arrow is at 20 mm;
 When you have finished regulating, block the counter-nut;
 Put the cover back on;
 Repeat the same procedure on the other track.
CAUTION: If mud verify that the arrow is 40 mm.

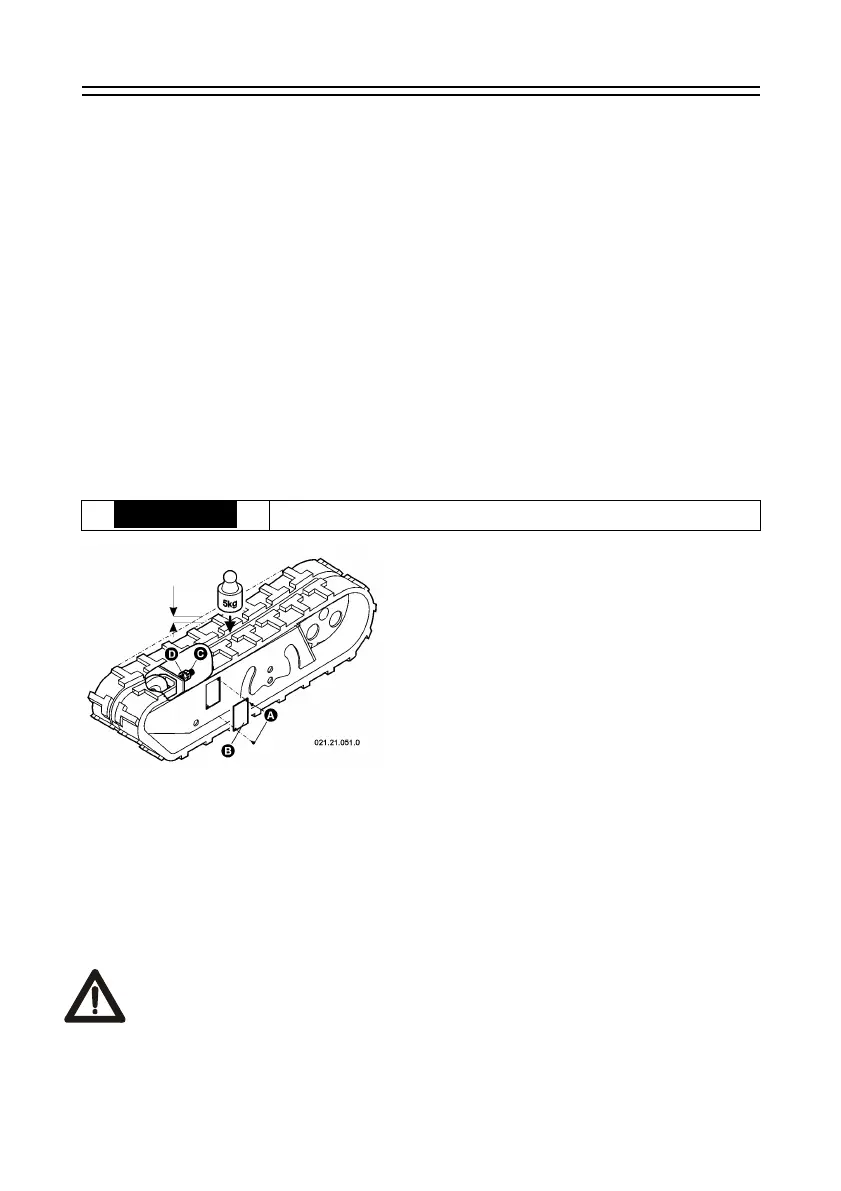

fig. 34 - Regulation track tension
20mm
