Cornelius SFV1 - Carrying out a Visual Inspection of the Seals on the Diffusor and Baffle

Maintenance
Cornelius Deutschland GmbH
Document no. TD2005100
Version 15/03/2019, Index 0
Installation and service manual Dispensing valve
SFV1
13

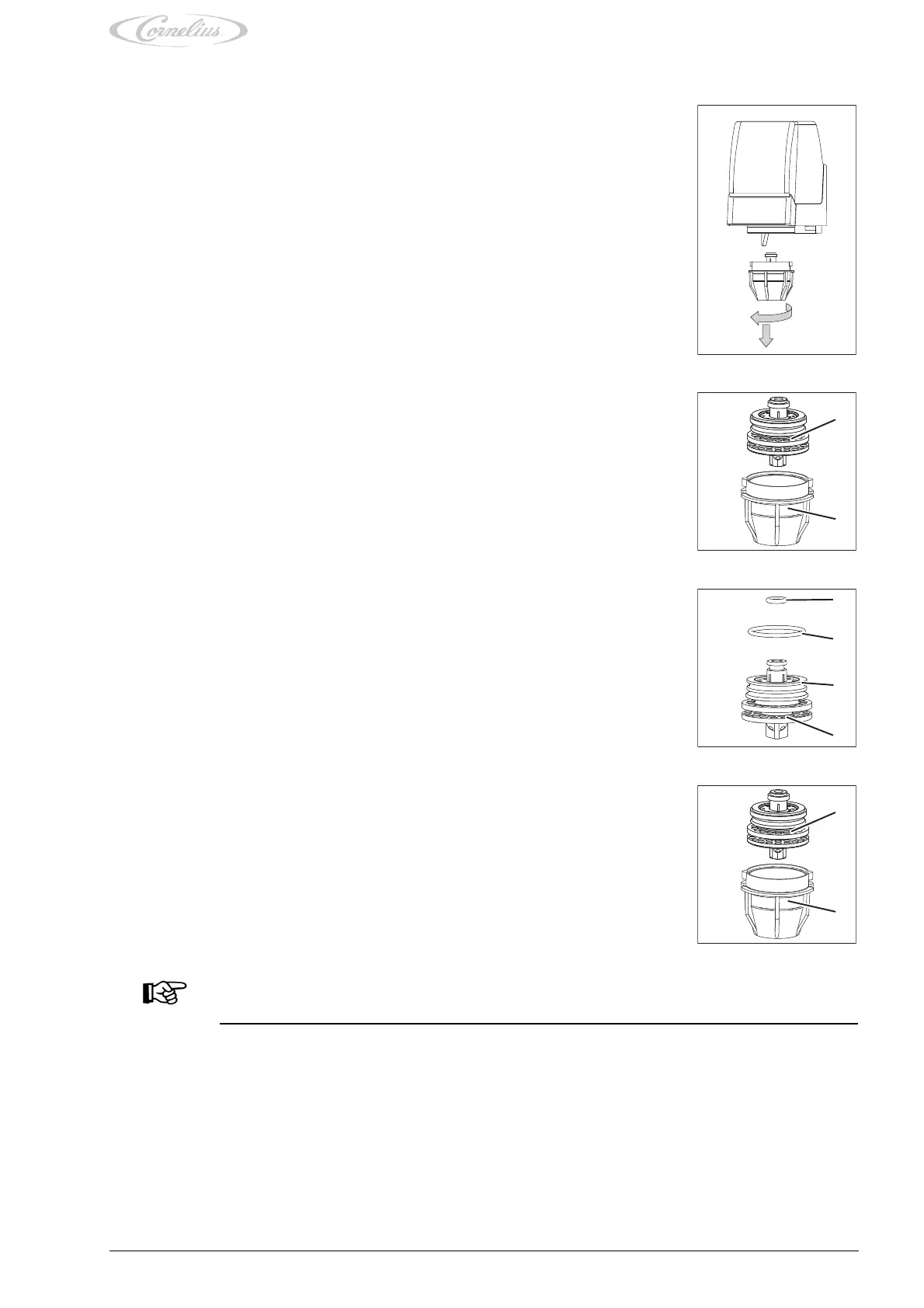

5.2 Carrying out a visual inspection of the seals on the diffusor and baffle
NOTICE!
The outlet nozzle is easier to insert into the dispensing valve if it is moistened with water beforehand.
1. Unlock the outlet nozzle by turning it.
2. Pull the outlet nozzle with the baffle downwards out of the dispensing valve.
Fig. 13
3. Remove the baffle (Fig. 14/1) from the outlet nozzle (Fig. 14/2).
Fig. 14
1
2
4. Check the seal (Fig. 15/1) of the baffle (Fig. 15/4) for damage and elasticity.
Replace any damaged seals.
5. Check the seal (Fig. 15/2) of the diffusor (Fig. 15/3) for damage and elasticity.
Replace any damaged seals.
Fig. 15
1
2
3
4
6. Insert the baffle (Fig. 16/1) into the outlet nozzle (Fig. 16/2).
Fig. 16
1
2
