Cornelius SFV1 - Dispensing Valve SFV1 Dosing Lever; Dispensing Nozzle; Functions Within the Dispensing System

Description
Cornelius Deutschland GmbH
Document no. TD2005100
Version 15/03/2019, Index 0
Installation and service manual Dispensing valve
SFV1
7
3.1.3 Dispensing valve SFV1 dosing lever
The dispensing valve SFV1 dosing lever comprises the following components:
Fig. 3
3.1.4 Dispensing nozzle
The dispensing nozzle comprises the following components:
3.2 Functions within the dispensing system
NOTICE!
The operator manual applicable to the base unit contains the description of how the dispensing valve functions
within a dispensing system.
4
1
3
2
5611
12
9
10
8
7

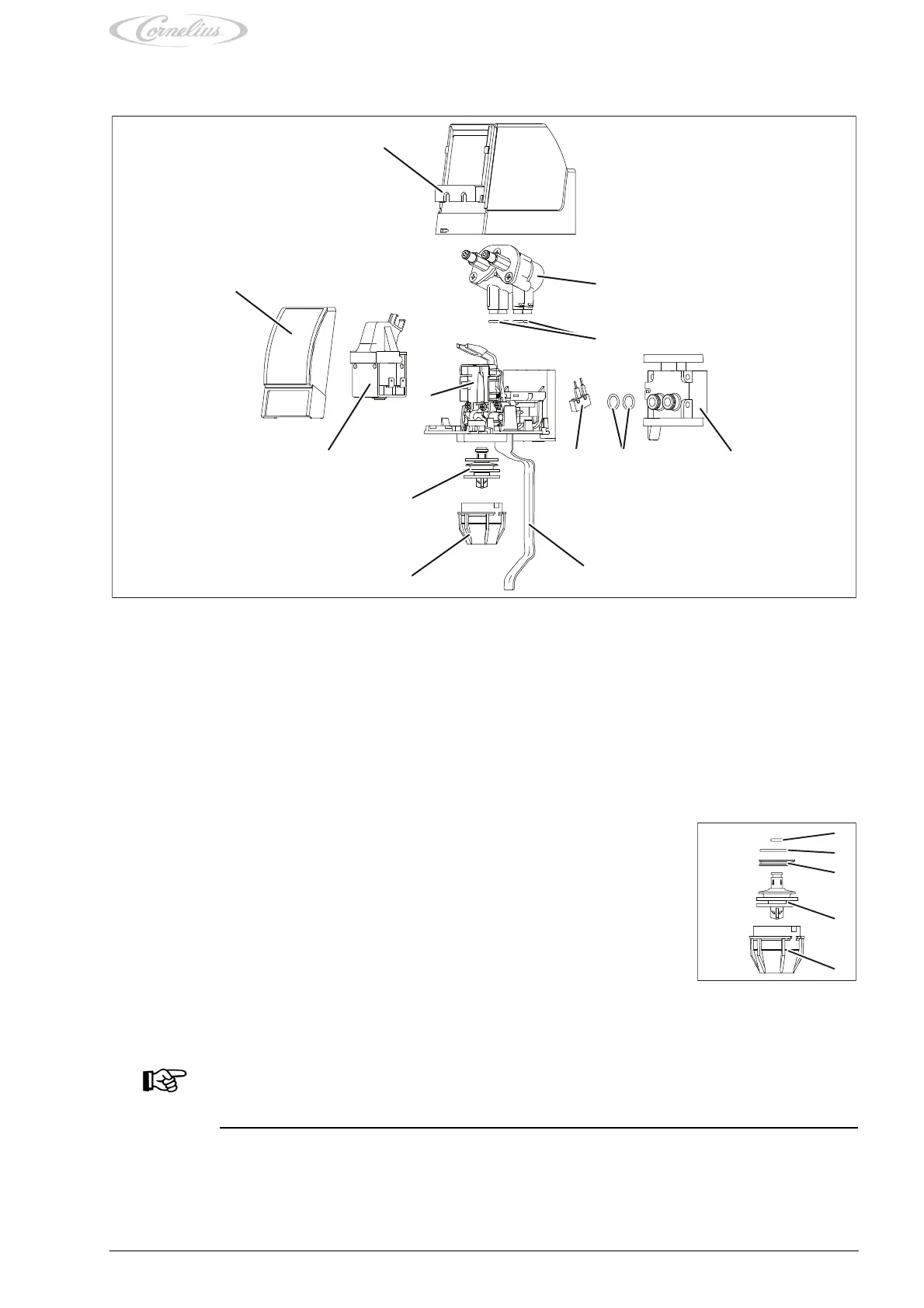

1 Valve cover rear
2 Flow controller
3 Flow controller seal
4 Block mount
5 Block mount seal
6Microswitch
7 Dispensing lever
8 Outlet nozzle
9 Baffle with diffusor
10 Valve head
11 Pull-type solenoid
12 Valve cover front
Fig. 4/1 Baffle seal
Fig. 4/2 Diffusor seal
Fig. 4/3 Diffusor
Fig. 4/4 Baffle
Fig. 4/5 Outlet nozzle
Fig. 4
