Cornelius SFV1 - Replacing the Rear Valve Cover

Repairs
Cornelius Deutschland GmbH
Document no. TD2005100
Version 15/03/2019, Index 0
Installation and service manual Dispensing valve
SFV1
16
6.2 Replacing the rear valve cover
NOTICE!
The replacement procedure for the rear valve cover is exactly the same on the dispensing valves SFV1.
Replacement is described here analogously using an example.
Prerequisites References
The front valve cover has been removed. see chapter 6.1
Spare parts ID/reference Qty/amount Comment
SFV1 portion control: Valve cover rear 620050575 1
SFV1 push button: Valve cover rear 620050575 1
SFV1 dosing lever: Valve cover rear 620050575 1

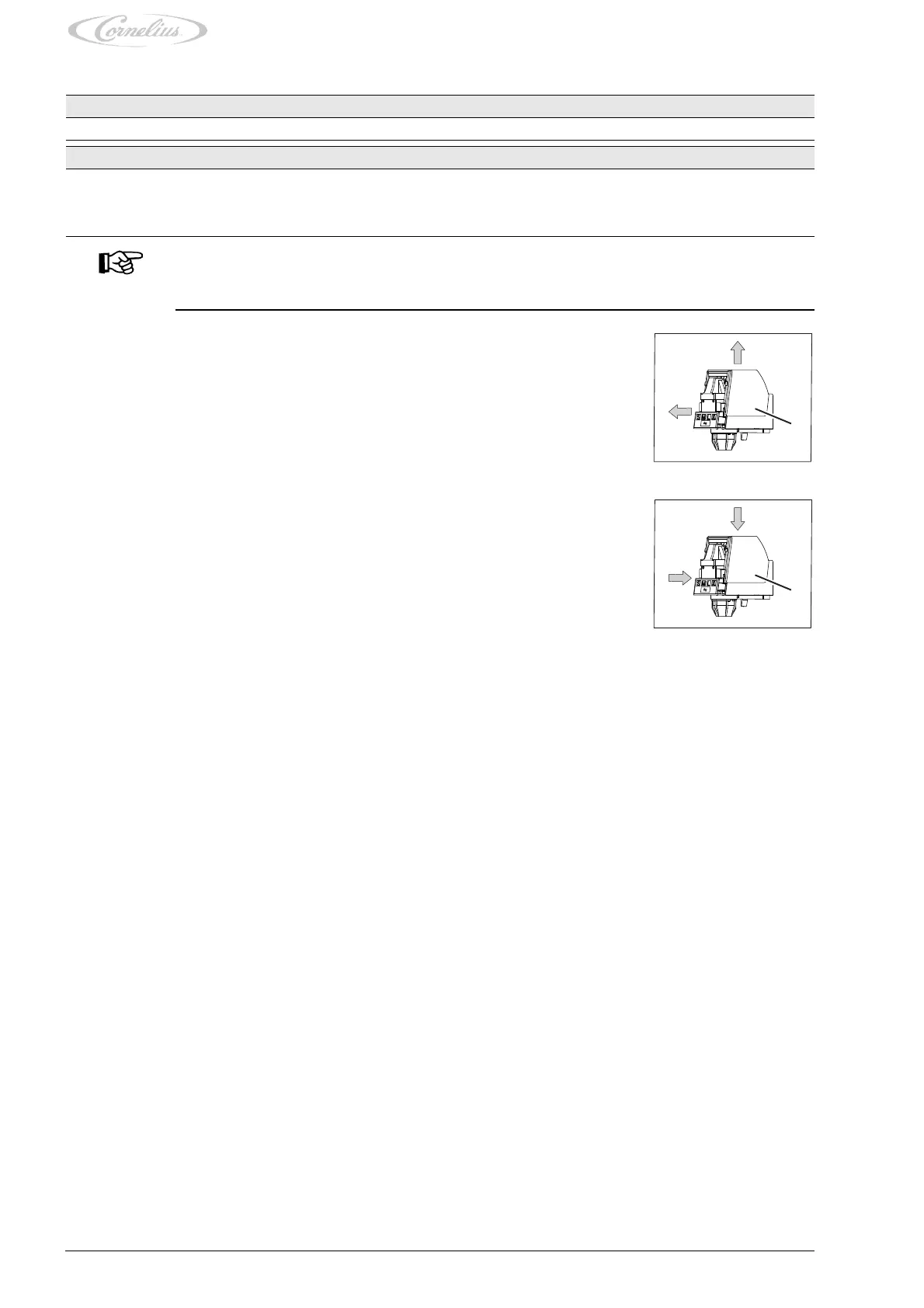

1. Push the rear valve cover (Fig. 20/1) forwards and lift the rear valve cover (Fig. 20/1) upwards.
Fig. 20
1
2. Position the new rear valve cover (Fig. 21/1) on the dispensing valve from above.
3. Push the rear valve cover (Fig. 21/1) backwards onto the dispensing valve.
Finishing tasks
1. Mount the front valve cover, see chapter 6.1.
Fig. 21
1
