Repairs
Cornelius Deutschland GmbH
Document no. TD2005100
Version 15/03/2019, Index 0
Installation and service manual Dispensing valve
SFV1
21

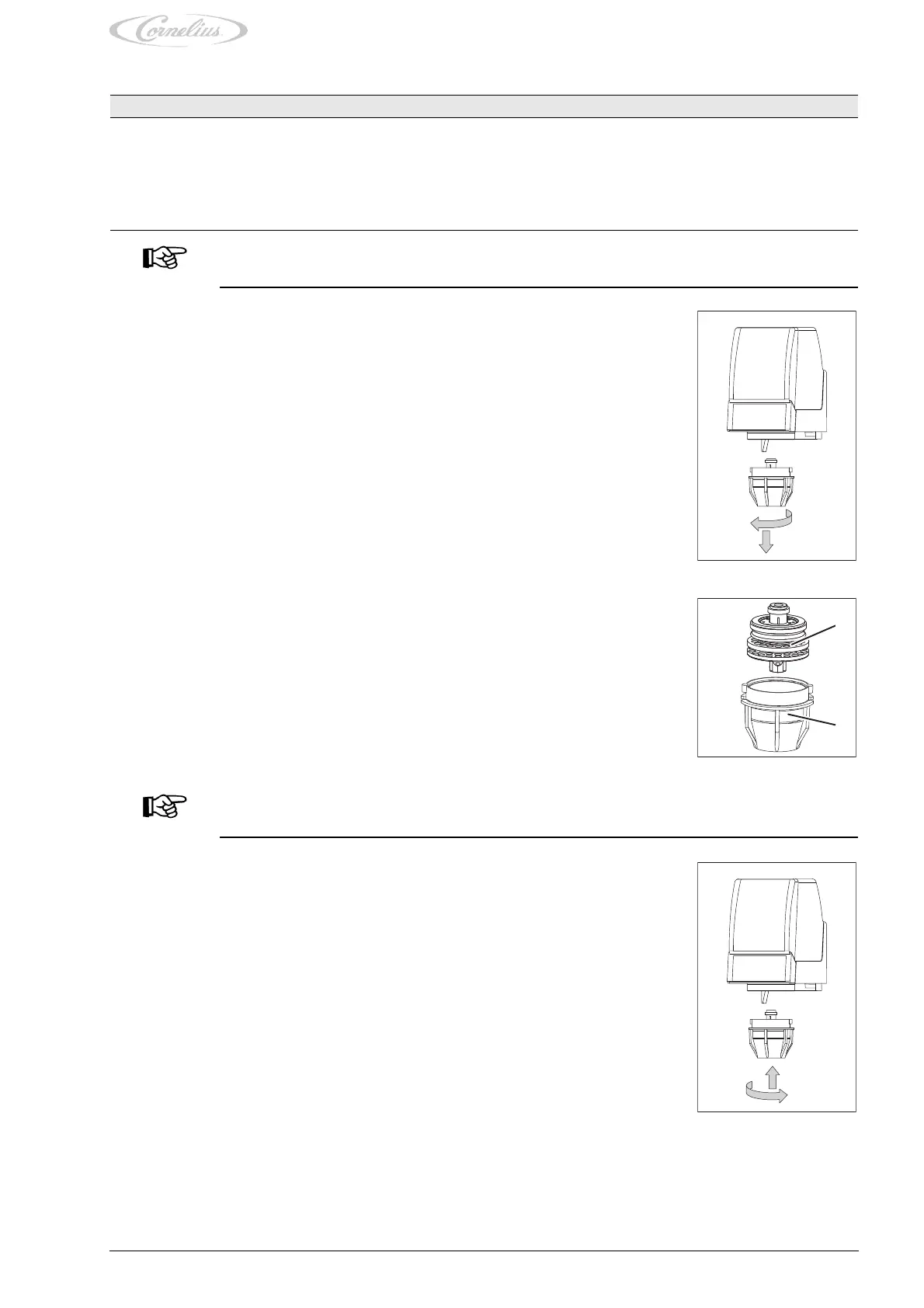

6.10 Replacing the dispensing nozzle
NOTICE!
Please use gloves!
NOTICE!
The outlet nozzle is easier to insert into the dispensing valve if it is moistened with water beforehand.
Spare parts ID/reference Qty/amount Comment
Outlet nozzle 1945 1
Baffle 1917 1
Baffle seal 4073 1
Diffusor 1913 1
Diffusor seal 311086000 1
1. Unlock the outlet nozzle by turning it.
2. Pull the outlet nozzle with the baffle downwards out of the dispensing valve.
Fig. 35
3. Remove the baffle (Fig. 36/1) from the outlet nozzle (Fig. 36/2).
4. Insert the new baffle (Fig. 36/1) into the new outlet nozzle (Fig. 36/2).
Fig. 36
1
2
5. Insert the outlet nozzle with the baffle in the dispensing valve,
making sure that the outlet nozzle is straight.
6. Lock the outlet nozzle in the dispensing valve by turning.
Make sure that the dispensing nozzle is inserted correctly as otherwise the beverage cannot
be dispensed correctly.
Fig. 37
