SUSPENSION, BRAKES AND STEERING
FRONT BRAKE CALLIPERS (REMOVAL)

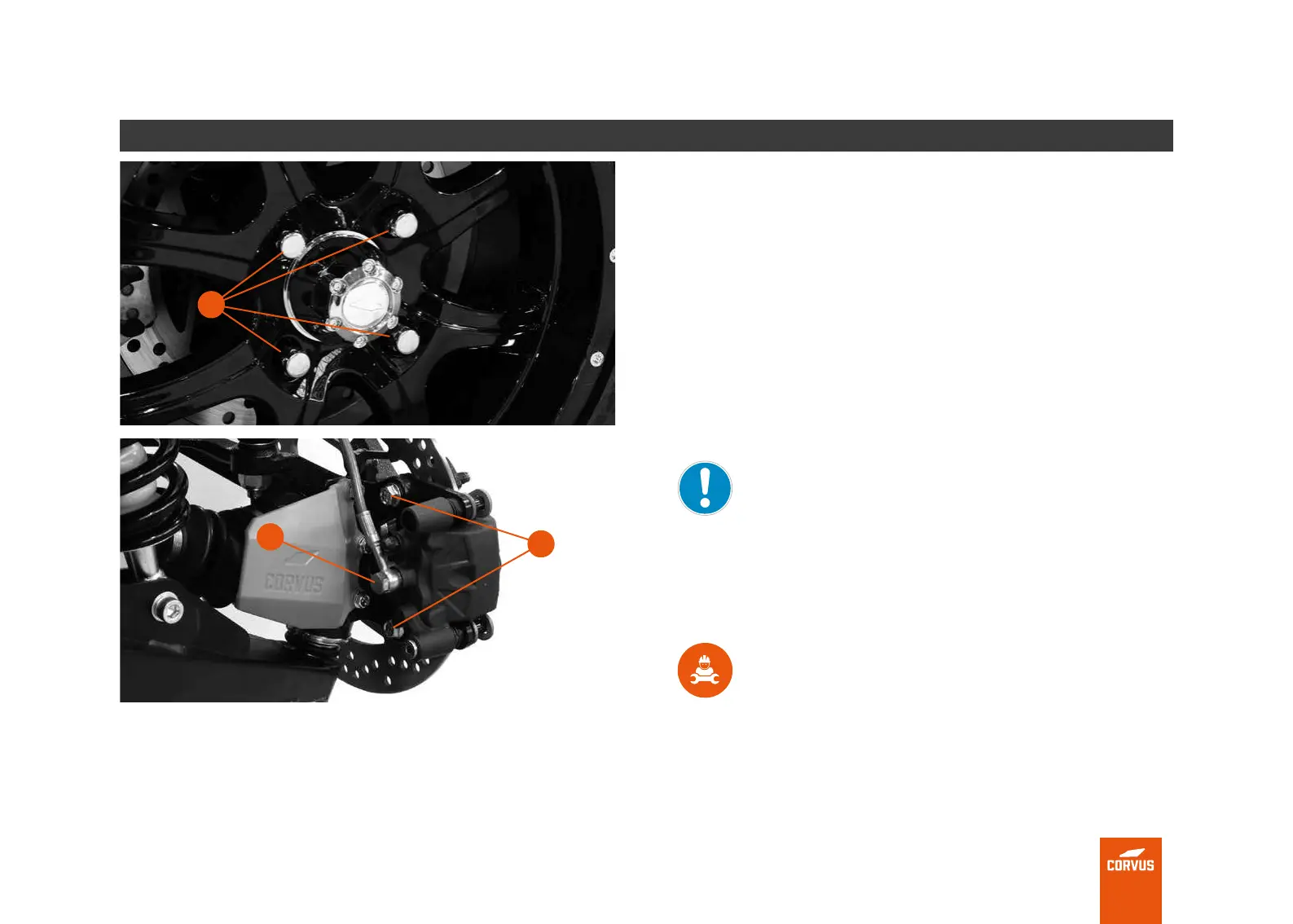

1. Raise the vehicle at its lifting points (see page 40) until the tires are no
longer in contact with the ground.
2. Remove the four nuts (1) of the corresponding wheel.
3. Place a container underneath to collect the brake uid.
4. Remove the banjo screw (2).
5. Drain the brake system.
6. Remove the two screws (3) securing the clamp.
WARNING
DO NOT ALLOW THE BRAKE FLUID TO COME INTO
CONTACT WITH PAINTED, PLASTIC OR RUBBER
PARTS.
REPLACE THE WASHERS OF THE BANJO SCREW DURING
THE ASSEMBLY PROCESS.
TECHNICAL INFORMATION
Wheel nuts
tightening torque: 60 Nm
Clamp screws tightening torque:
30 Nm
1
3
2
