CANOPY

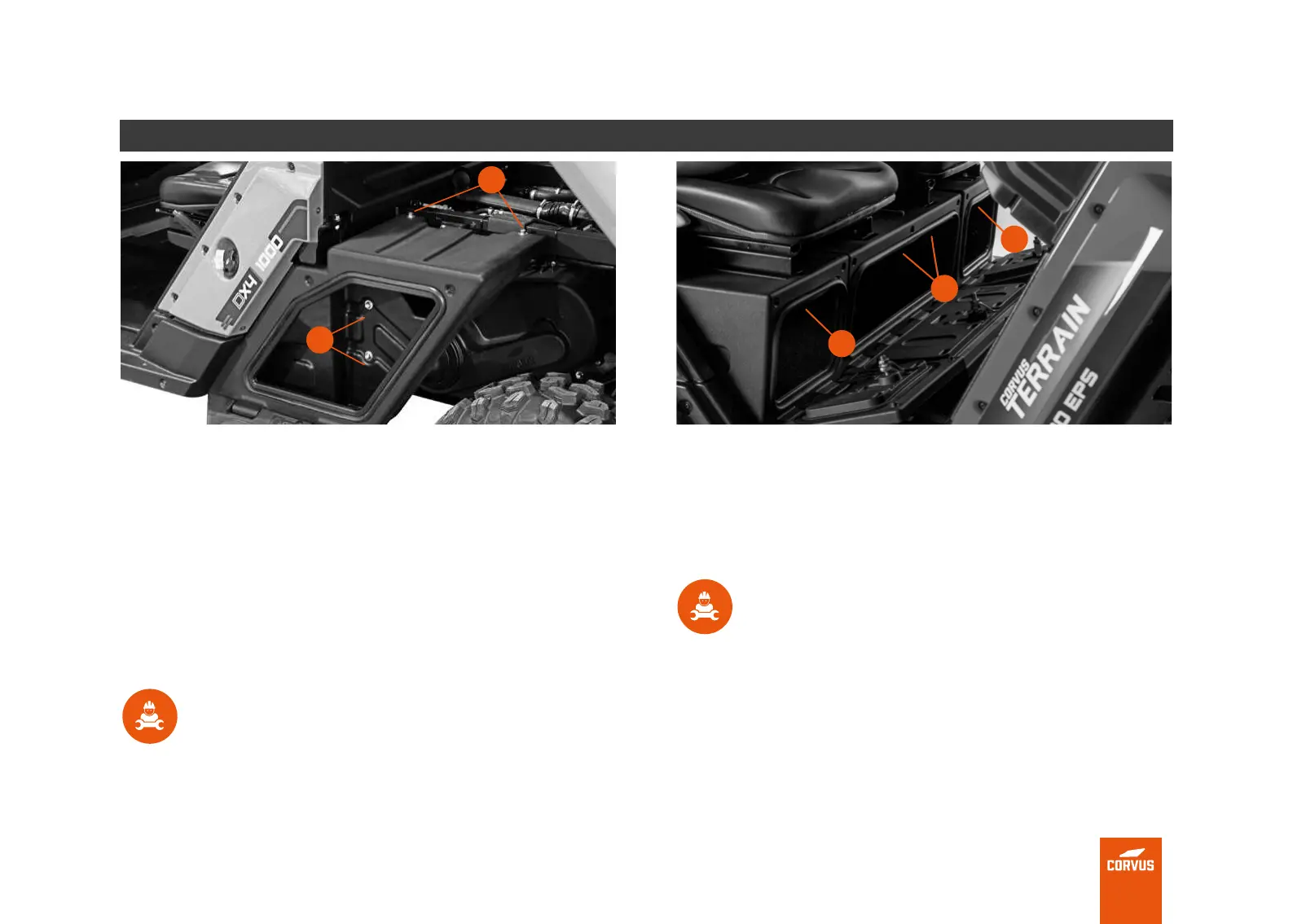

SIDE DRAWERS (REMOVAL)*
To remove the drawers, you have to lift up the cargo box.
1. Use the corresponding key to open the door of the side drawer.
2. Remove the two screws (1) located on the inside of the
compartment.
3. Remove the two top screws (2).
4. Remove the drawer.
TECHNICAL INFORMATION
Screw tightening torque: 24 Nm
INNER DRAWERS (REMOVAL)*
1. Open the door to the interior drawer you want to remove.
2. Remove the screws (1) from the drawer you want to remove,
located inside at the top of each drawer.
TECHNICAL INFORMATION
Screw tightening torque: 24 Nm
