TECHNICAL INFORMATION
Grease type:
Refer to manufacturer.
Cardan anchor screws tightening
torque: 12 Nm.
LUBRICATION
Your vehicle is equipped with grease nipples to
facilitate the lubrication of certain parts (two
in each rear wheel spindle, two in each cardan
joint and one in the transmission cardan/output
coupling joint).
Daubing the cardan
To perform this process and to access the
cardan, it is necessary to disassemble the
underbody protector (see page 41).
To daub the cardan, follow the procedure.

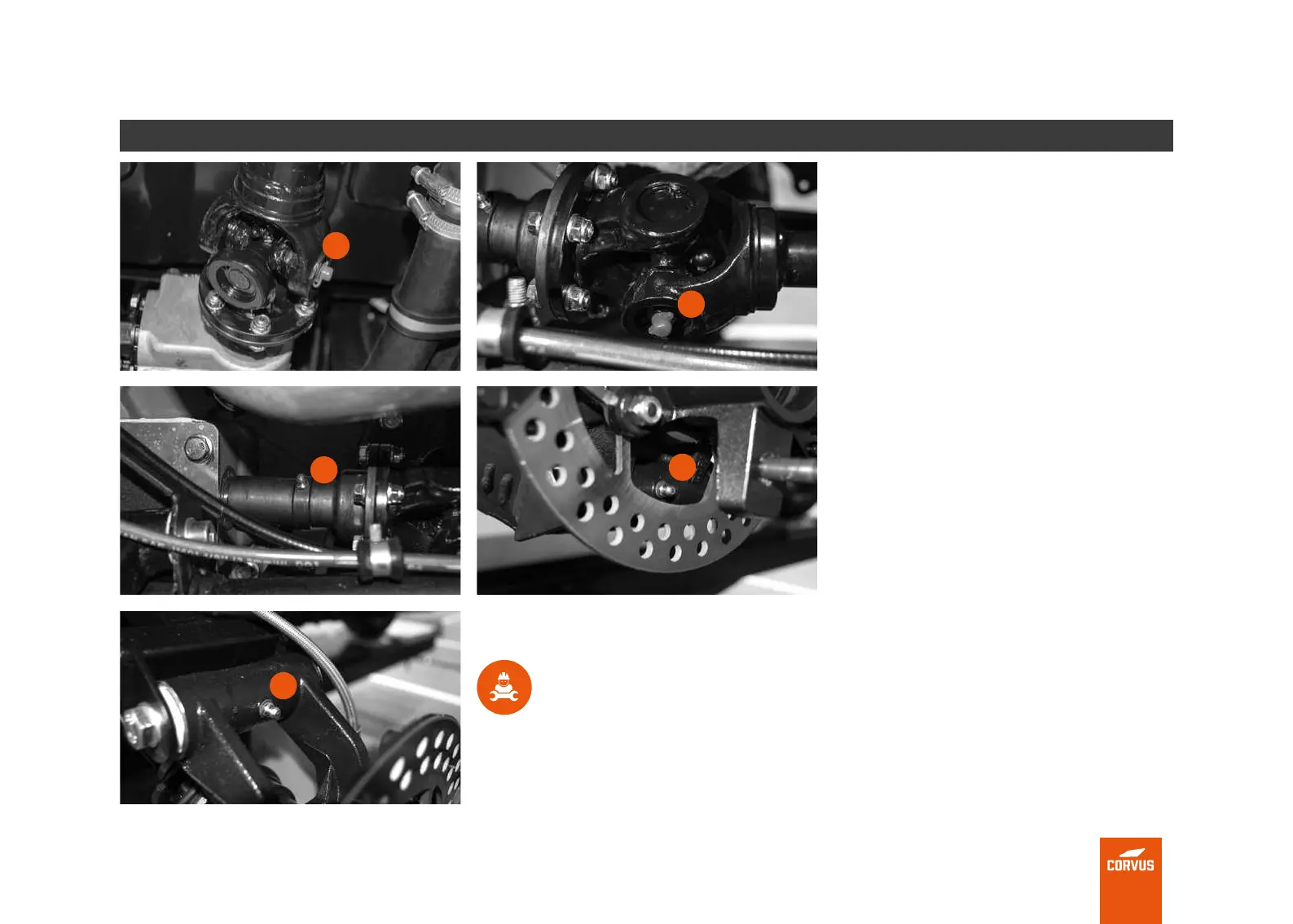

1. Use the three grease nipples (1a, 1b, 1c).
2. Check the play of the crossarms. If there is
play, replace the full bar.
Daubing the stub shafts
1- Lower rear wheel spindle grease nipple (2).
2- Upper rear wheel spindle grease nipple (3).
MAINTENANCE
1c
2
3
1a
1b
