93
Page
WORKSHOP
MANUAL
We reserve the right to modify the product and the design.

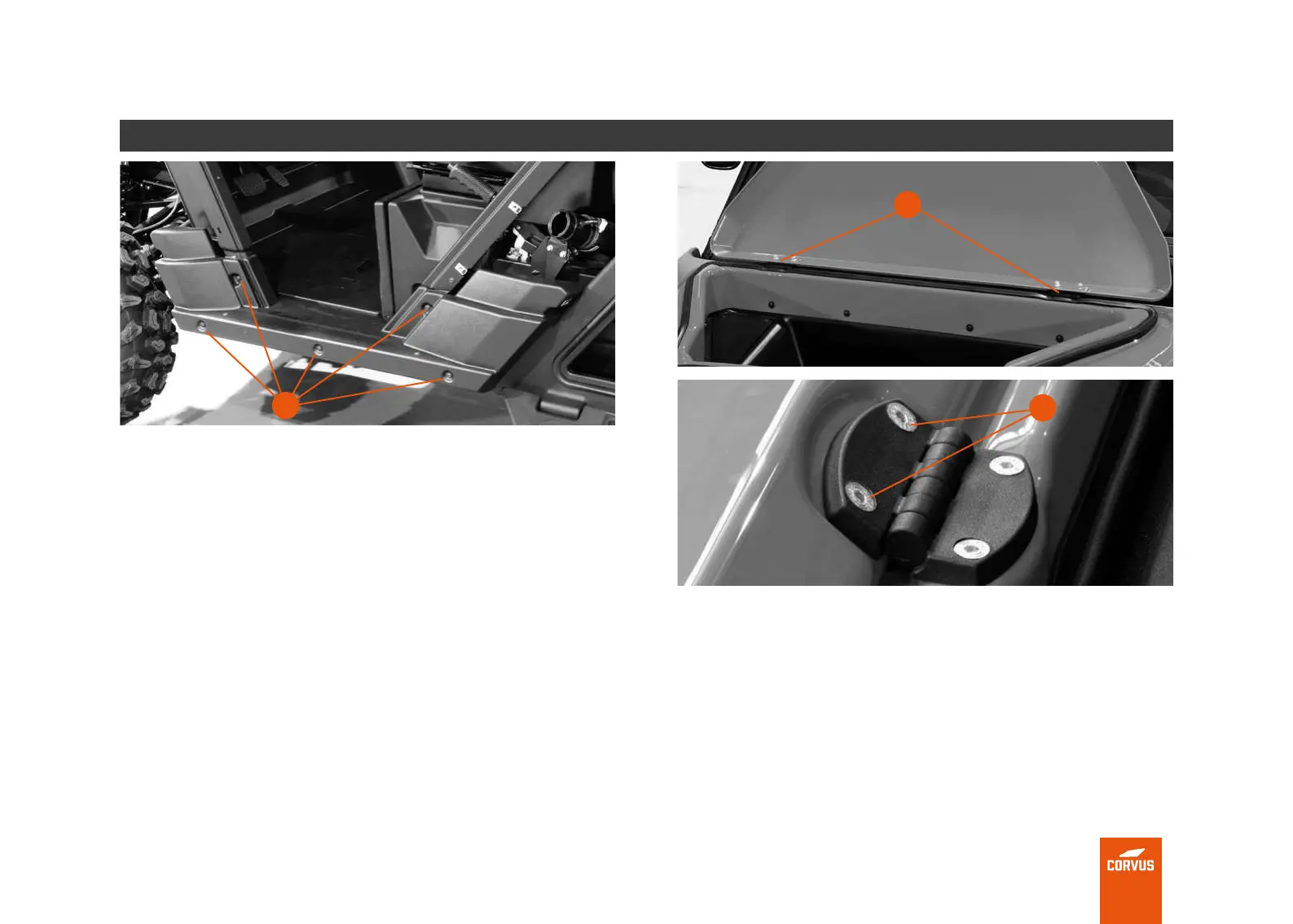

FRONT HOOD (REMOVAL)
1. Open the hood with the corresponding key.
2. Slightly raise the hood.
3. Loosen the screws (2) of the hinges (1) while holding the nuts on
the inside.
THRESHOLD PLATES (REMOVAL)
Before you remove the threshold plates you must previously
withdraw the front and rear fenders (see page 90).
1. Remove the ve screws (1) and remove the part.
CANOPY
1
1
2
