MAINTENANCE
ENGINE OIL AND FILTER (CHANGE)
You should keep the oil at the optimum level and change it periodically, as indicated in the Service Chart (see
page 39).

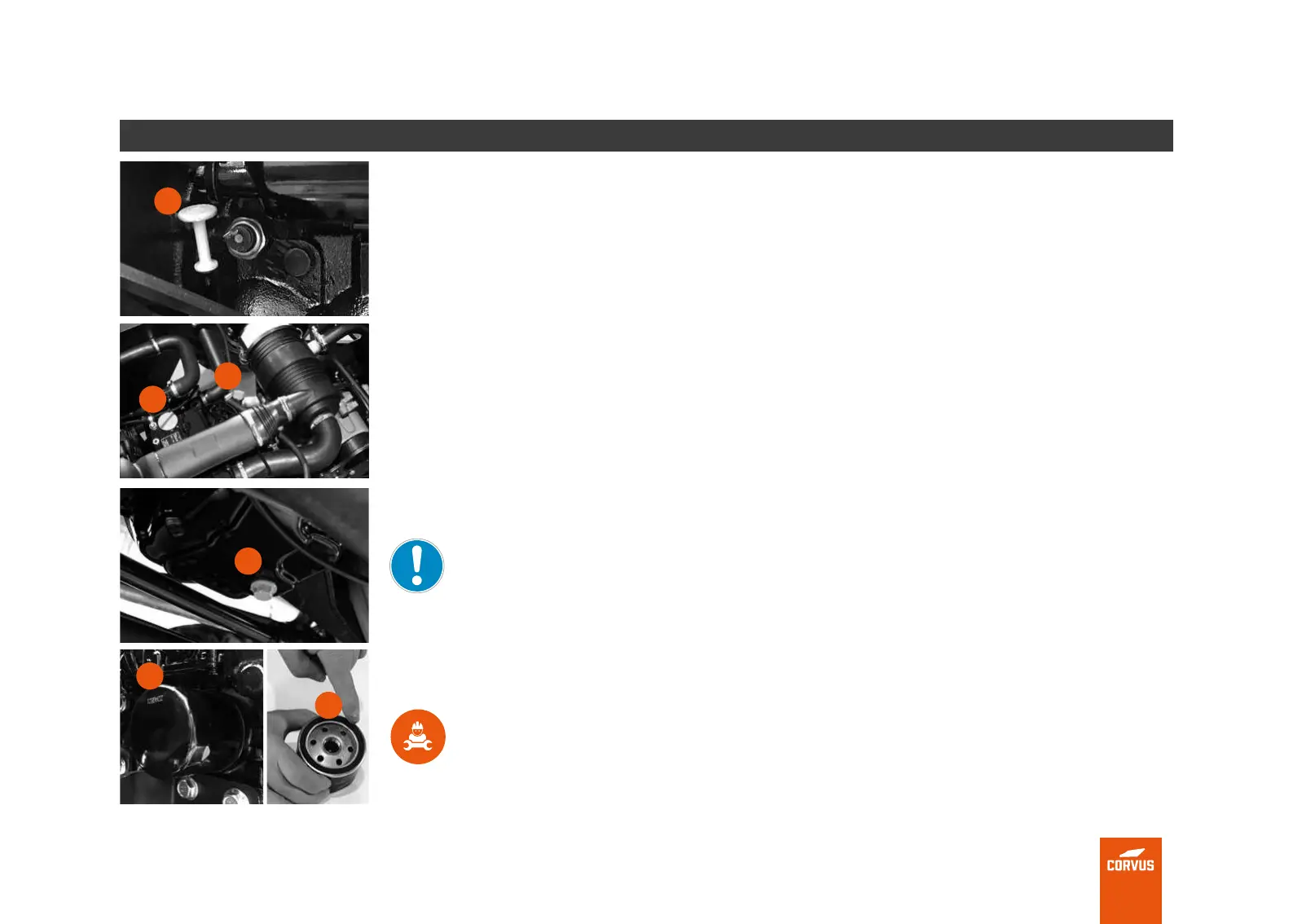

Oil and oil lter change
1. Put the vehicle in a horizontal position.
2. Run the engine so that once the oil is warm it can make any sediment rise up. Then turn it off after a few
minutes.
3. Place a container under the engine to collect the used oil and avoid any spillage.
4. Remove the plug/dipstick level (1) and the two ller plugs (2), to make it easier to drain the oil.
5. Remove the drain plug/screw (3) and wait until all the content has drained out.
6. Remove the lter (4) and discard.
7. Put the new lter in place, lubricate the O-ring seal (5) and tighten manually, without using any tools.
8. Tighten the plug/screw (3) replacing its washer.
9. Fill with new oil.
10. Check the plug/dipstick level (1) and the tightness of the ller plugs (2), with their O-ring.
11. Run the engine for a few minutes.
12. Stop the engine and after about 5 minutes, check the oil level again, according to the indications of the
oil level check.
WARNING
FOR THE TRANSMISSION AND ENGINE TO FUNCTION PROPERLY, KEEP THE OIL AT
THE OPTIMUM LEVEL AND CHANGE IT PERIODICALLY, AS INDICATED IN THE SERVICE
CHART (SEE PAGE 39).
INSUFFICIENT, DEGRADED OR CONTAMINATED OIL CAN ACCELERATE THE WEAR AND TEAR OF A
VEHICLE AND CAUSE SERIOUS ENGINE DAMAGE.
REGULATIONS OBLIGE GARAGES TO COLLECT AND STORE, WITHOUT MIXING, HAZARDOUS OR
TOXIC WASTE, CONTAMINATED WASTE AND INERT NON-HAZARDOUS WASTE. SUCH WASTE MAY
NOT BE DUMPED AND MUST RATHER BE PROCESSED BY ACCREDITED ORGANIZATIONS.
TECHNICAL INFORMATION:
Recommended oil: SAE 15W40 - API CD, CF, CF-4 and CI-4 / ACEA E-5. 1.7 L
Tighten the drain plug/screw to 58 Nm.
Air cleaner cartridge: 02990000052.
