ENGINE FRAME COVER (REMOVAL)
1. Remove the seats (see page 98).

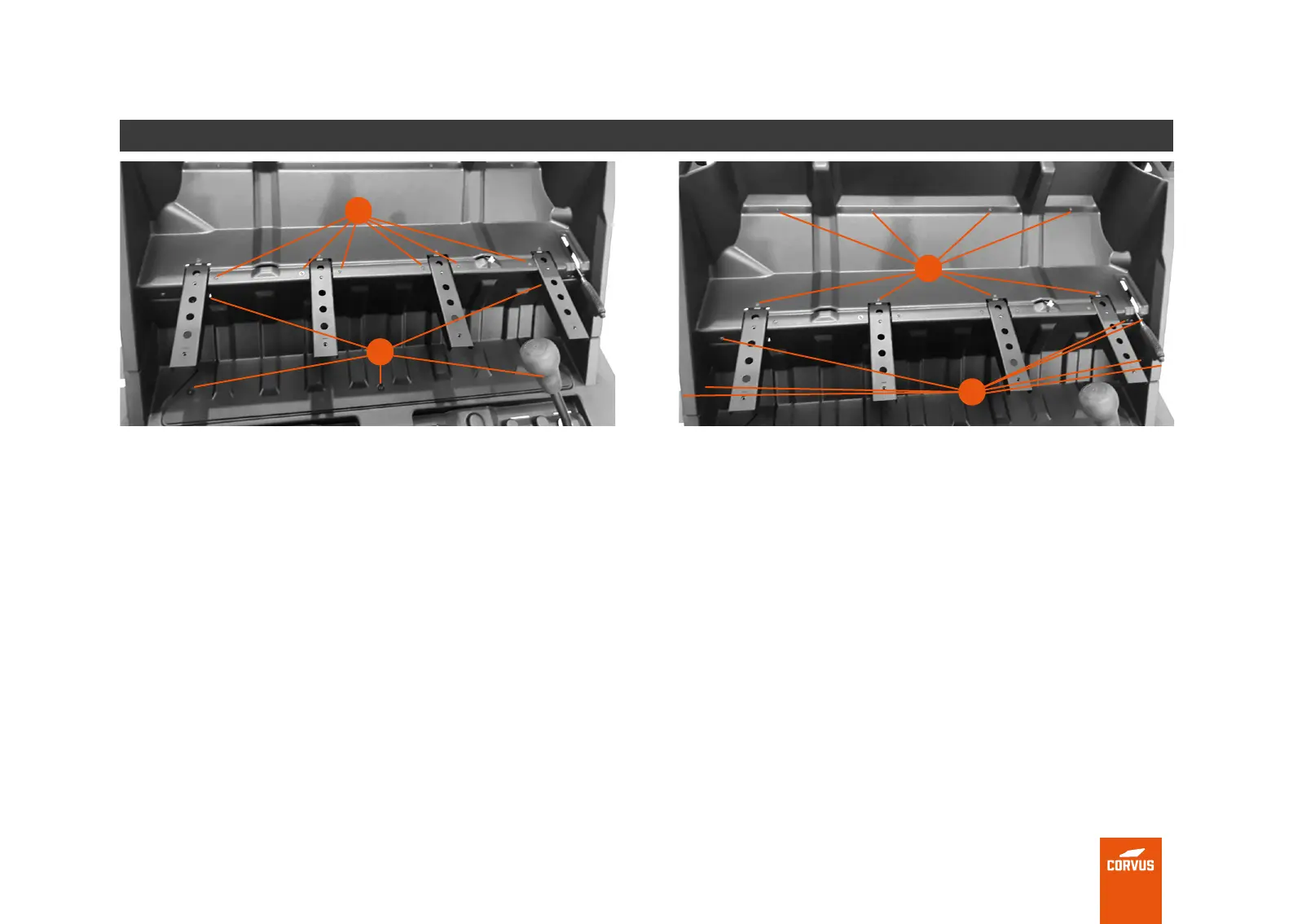

2. Remove the six top screws (1).
3. Remove the ve bottom screws (2).
4. Remove the engine frame cover.
FRAME UNDER SEAT (REMOVAL)
1. Remove the seats (see page 98).
2. Remove the engine frame cover.
3. Remove the eight top screws of the frame (1).
4. Remove the seven bottom screws (2).
1
1
2
2
