MAINTENANCE
UNDERBODY PROTECTOR (REMOVAL)

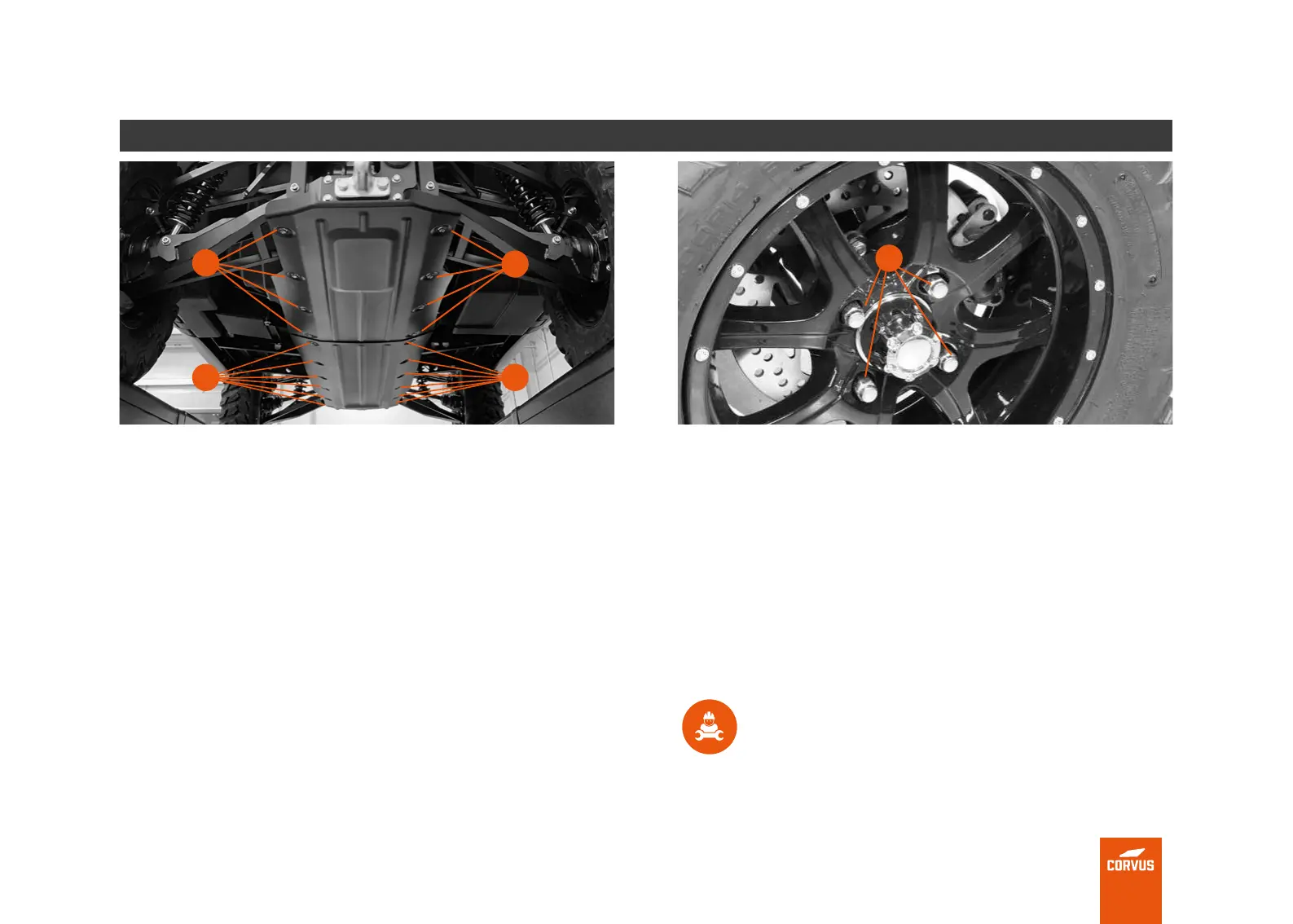

1. Remove the 12 screws (1) from the front underbody protector.
2. Uncouple the protector.
3. Remove the 8 screws (2) from the rear underbody protector.
4. Uncouple the protector.
1
2
1
2
MOUNTING THE WHEEL
1. Put the vehicle in a horizontal position.
2. Engage the parking brake.
3. Raise the area of the vehicle (front or rear) where the wheel
you are removing is located (see page 40).
4. Remove the four screws (1) holding the wheel rim.
5. Remove the wheel.
INSTALLING THE WHEEL
Perform the above process in reverse for the installation.
TECHNICAL INFORMATION:
Wheel nut tightening torque: 60 Nm
1
