CVT ASSEMBLY REVIEW
Cleaning CVT air ducts
WARNING
THE AIR INTAKE DUCT TO THE CVT MUST BE KEPT
CLEAN TO PREVENT SERIOUS DAMAGE TO THE
TRANSMISSION SYSTEM.
IF THE VEHICLE IS USED IN DUSTY CONDITIONS, IT IS
ADVISABLE TO CARRY OUT THIS PROCESS REGULARLY.
First of all, you must remove the left-hand side drawer*.

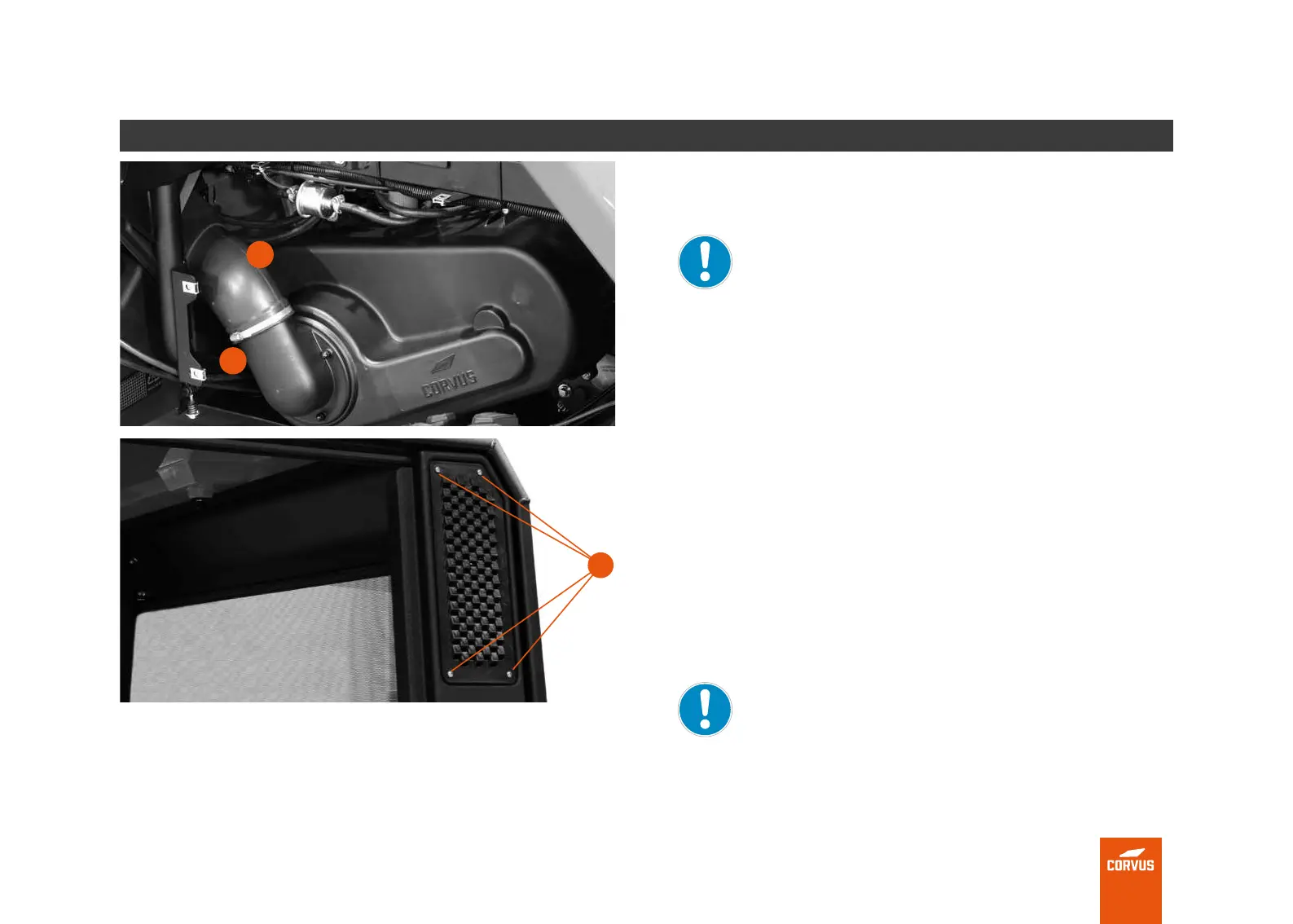

1. Remove the clamp (1) from the elbow connection (2) between the
manifold and the (CVT) transmission cover.
2. Pull the elbow (2) downwards to release it from the housing of the
duct.
3. Remove the four screws (3) from the left upper grid and remove
it.
4. Clean the intake duct.
WARNING
PLUG THE AIR INTAKE TO THE TRANSMISSION
WHILE CLEANING THE DUCT, IN ORDER TO AVOID
THE POSSIBLE ENTRY OF PARTICLES THAT CAN
DAMAGE THE TRANSMISSION.
MAINTENANCE
3
1
2
