CORVUS TERRAIN DX4 PRO - Drive Belt Pulley Removal

59
Page
WORKSHOP
MANUAL
We reserve the right to modify the product and the design.
MAINTENANCE
WARNING / DANGER
THE SLIDING PULLEY IS
SPRING-LOADED. WHEN YOU
UNSCREW THE NUT (17),
THE SPRING WILL PUSH
THE COVER (14) AND IT WILL
SPRING UPWARDS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Fixed pulley
Adjusting washer (if applicable) Floating
bearing
Adjusting shim
Spring seat
Adjusting washer (if applicable)
Adjusting washer (if applicable)
Opening limiter
Spring
Sliding pulley
Assembly of centrifugal weights
Housing
Weight
Cover
Friction bushing
Washer (if applicable)
Nut
Washer (if applicable)

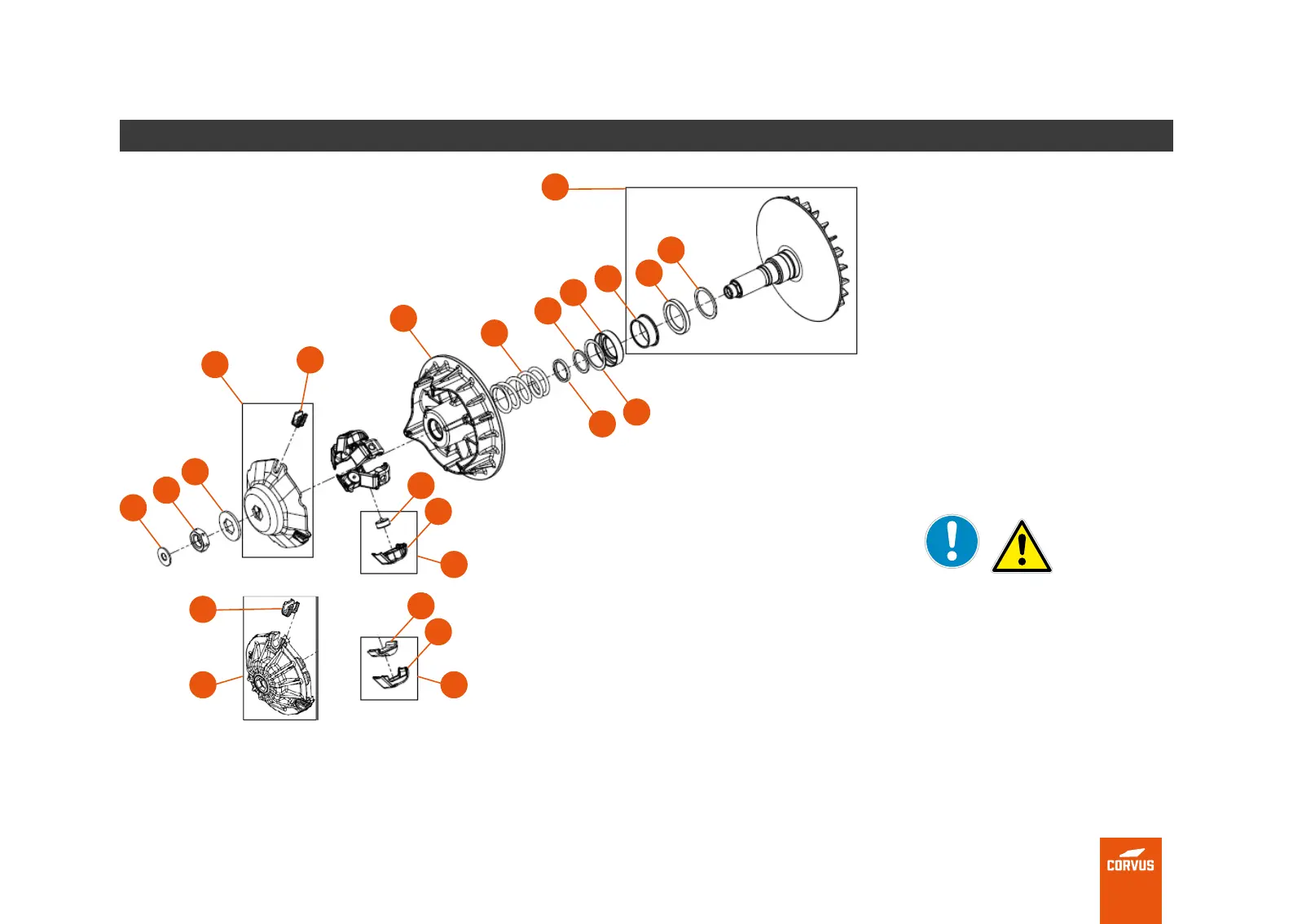

Removing the drive belt pulley
1
2
4
5
7
9
10
14
16
17
18
15
13
13
12
12
6
8
11
1114
15
3
or
or
