9.

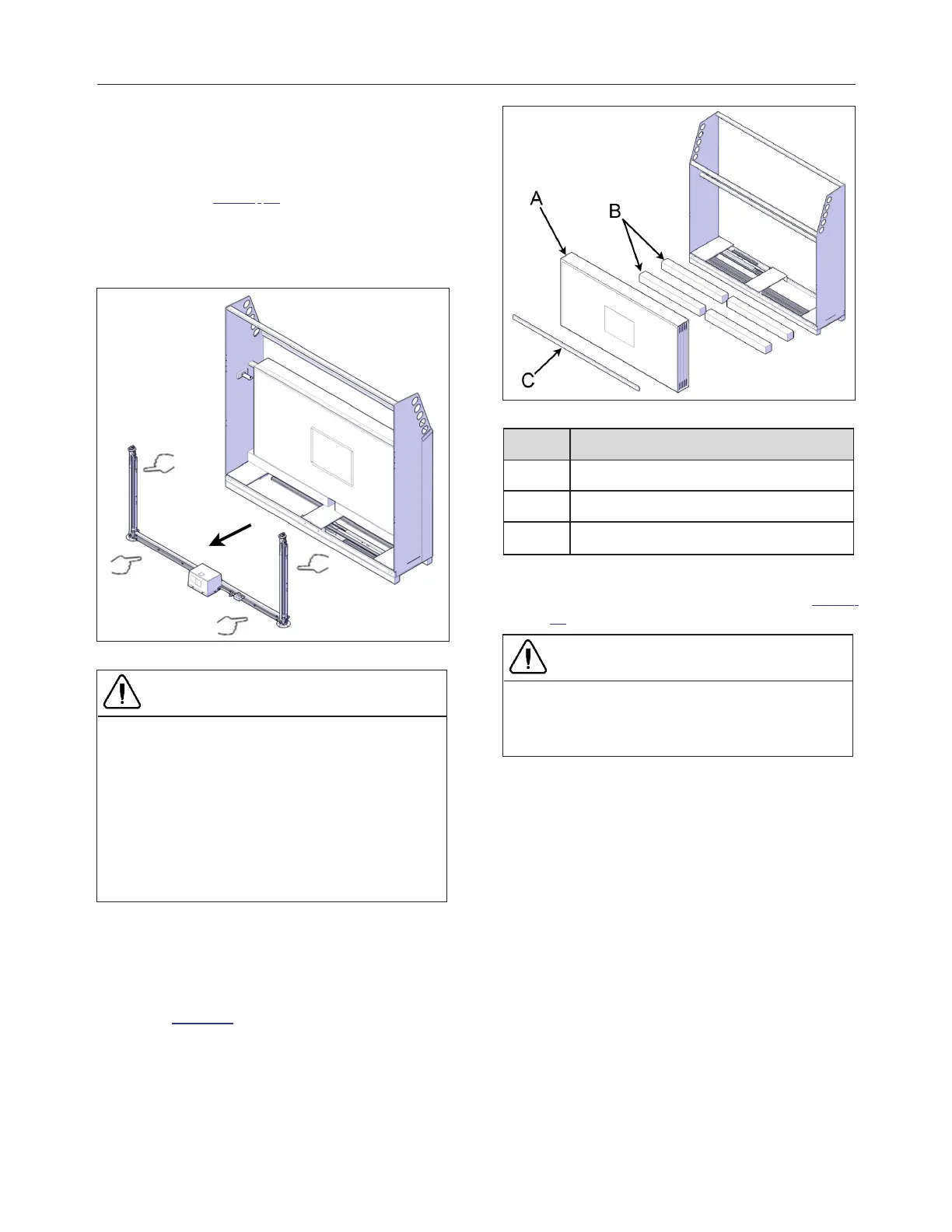

With the help of another worker, remove the
motor frame assembly from the crate. Install
one hand under the horizontal portion of the
motor frame and the other hand on the vertical
jack see Figure 27 . Handle and carry the
assembly with care, so that the jacks follow
the natural bending of the U-frame. Install the
motor frame assembly on a level surface and
make sure it will not fall.
FIGURE 27: REMOVE MOTOR FRAME ASSEMBLY
CAUTION
Do not twist the motor frame assembly, since this
may cause mechanical failure to the operator and
chain assembly.
Jacks may be greasy; wash your hands after
handling them or use gloves.
Do not damage the jack or frame components
resting at the bottom of the crate.
Flatten any protruding nails.
10.
Remove the front furring.
11.
With the help of another worker, carefully
remove the panel box and the sleeve boxes
from the crate. Install them in a safe space
see Figure 28.
FIGURE 28: PANEL AND SLEEVE BOXES
ID DESCRIPTION
A PANEL BOX
B SLEEVE BOXES
C FURRING
12.
Pry off the three base plates of the crate using
your hand or a hammer if needed see Figure
29.
CAUTION
Careful to not damage the components under the
base plates.
Flatten any protruding nails.
240799 OWNER'S MANUAL REVISION 4
