32 • Refrigerant Transducer (P/N 809-1550) 026-1701 Rev 0 01-05-98
Output Definitions
The fan’s output board and point address will need to be
assigned to a sensor control output (SEN CTL 01 - SEN
CTL 48). Press the DOWN arrow key from the Output Def-
initions screen (see Section 7.9.2. in the RMCC manual)
until the SEN CTL outputs are shown. Choose the output
number that matches the RT’s input number; in other
words, if an RT is set up in the Input Definitions screen as
SENS04, enter the exhaust fan’s board and point address in
SEN CTL 04.

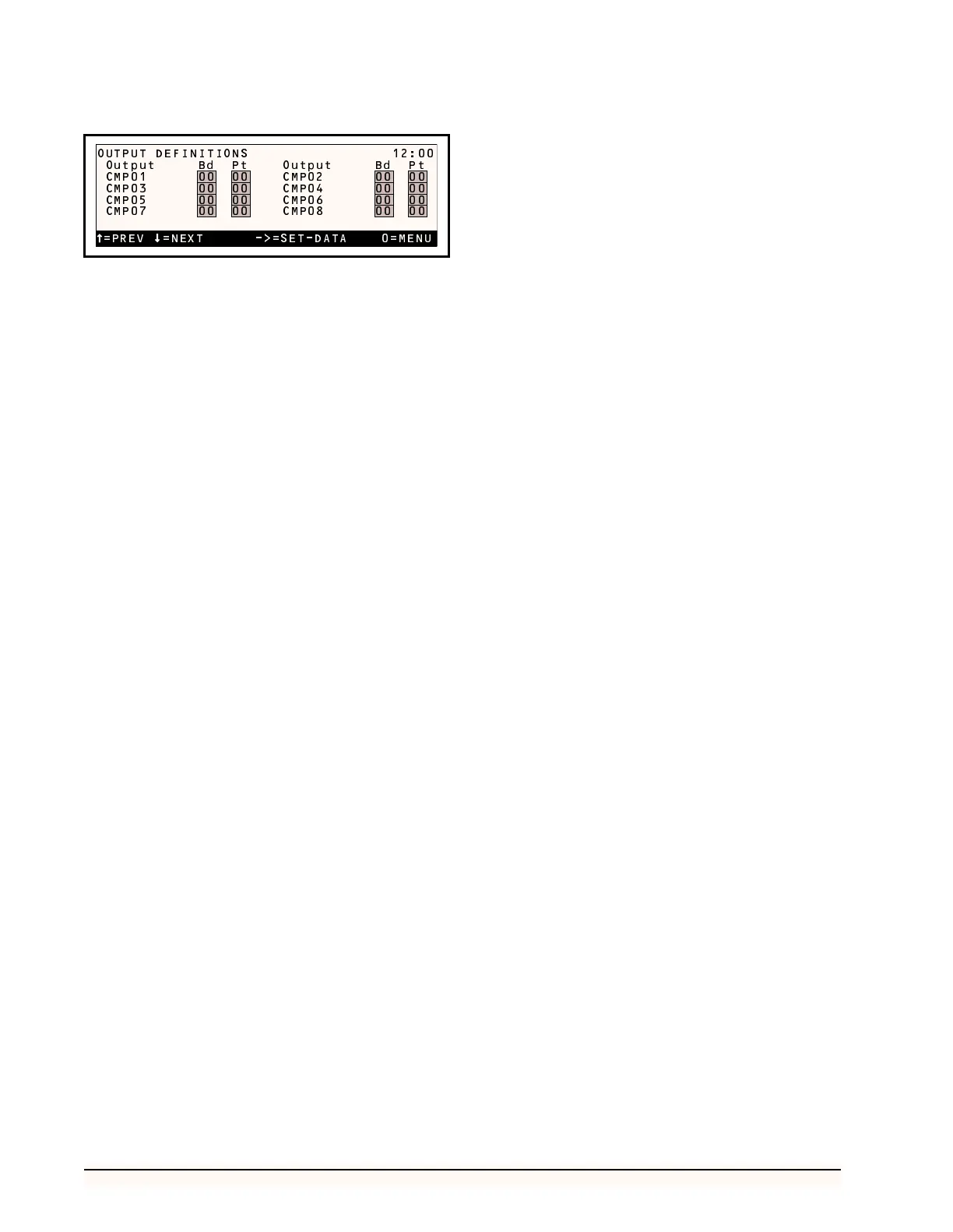

=PREV =NEXT ->=SET-DATA 0=MENU
OUTPUT DEFINITIONS 12:00
Output Bd Pt Output Bd Pt
CMP01 00 00 CMP02 00 00
CMP03 00 00 CMP04 00 00
CMP05 00 00 CMP06 00 00
CMP07 00 00 CMP08 00 00
