Peripherals Manual Eclipse Pressure Transducers • 33
Eclipse Pressure Transducers
0–100 PSIG–P/N 800-1100
0–200 PSIG–P/N 800-1200
0–500 PSIG–P/N 800-1500
Overview
CPC supplies Eclipse

Pressure Transducers for use in
some refrigeration control systems. All 100, 200, and 500
PSIG pressure transducers ordered for use with RMCC sys-
tems or shipped with new RMCC systems will be Eclipse

transducers.The part numbers and hardware specifications
are listed in Table 8. Software setup is described below.
Description

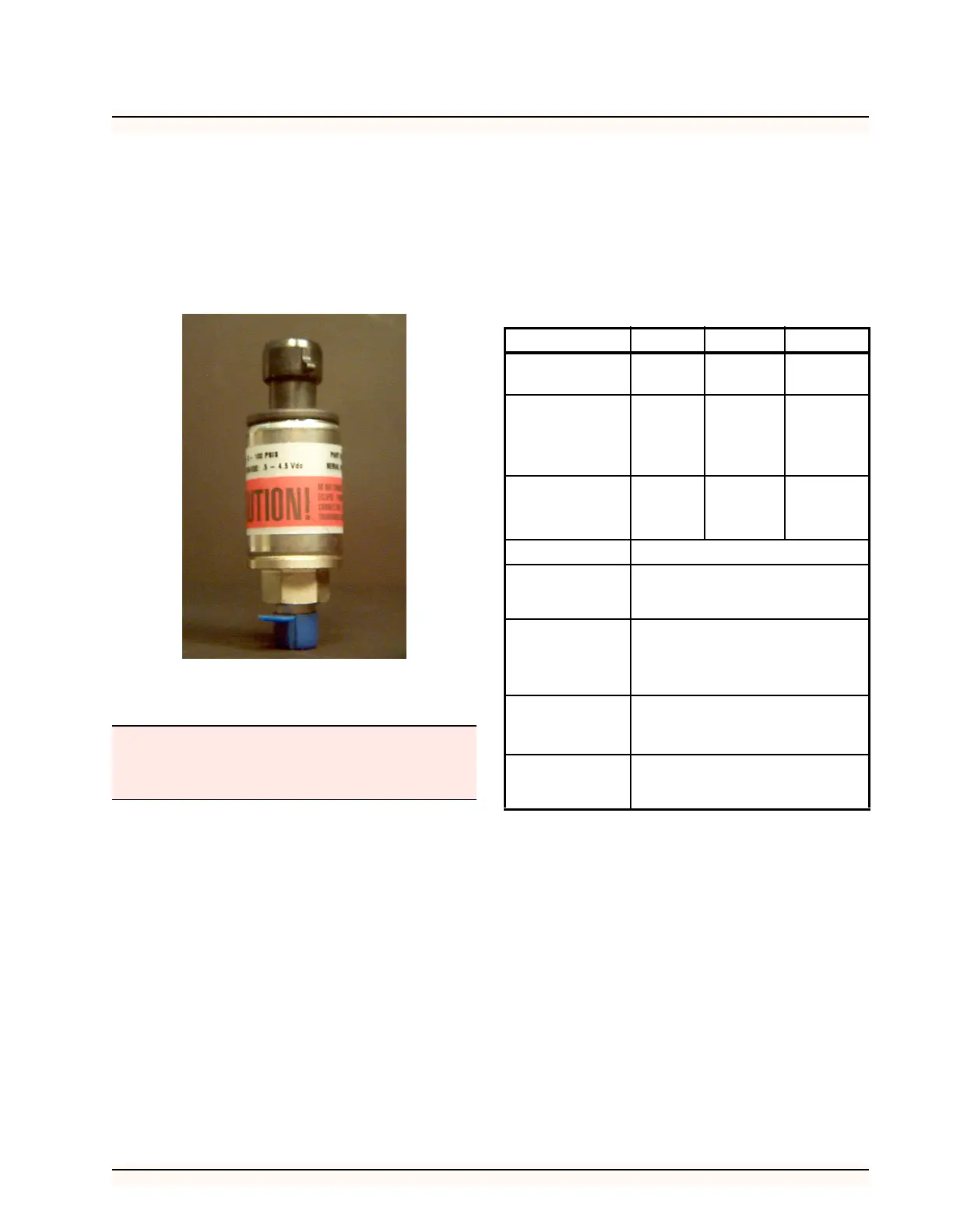

The Eclipse

pressure transducer is a pressure-sensing
device that converts pressure readings to a proportional
electrical signal between 0.5 - 4.5 volts DC. The transducer
is designed with a 1/8” male national pipe thread (NPT) fit-
ting for connection to a standard access fitting.
If the access fitting is configured with a Schrader valve,
this fitting will have to be replaced with a standard 1/8”
NPT female fitting. Each transducer is supplied with 20
feet of cable for connection to a 16AI input board. Table 9-
shows pressure/voltage ranges for each transducer.
Do NOT connect an Eclipse

Pressure Transducer to
a 12V supply. Eclipse

transducers are rated for 5V
DC.
Part Number
800-1100 800-1200 800-1500
Pressure
Range
0 - 100
PSIG
0 - 200
PSIG
0 - 500
PSIG
Max Overload
PSIG
(w/o Damag-
ing xducer)
200 PSIG 400 PSIG 750 PSIG
Max Overload
PSIG
(w/o Bursting)
500 PSIG 1000 PSIG 2500 PSIG
Excitation
+5 VDC ±0.25 V, 20 mA max
Accuracy
±1% Span from best fit straight line. In-
cludes effects of non-linearity, hystere-
sis, and repeatability.
Operating &
Storage Tem-
perature
Range
-40° F to 221° F
(-40° C to 105° C)
Compensated
Temperature
Range
-0° F to 180° F
(-18° C to 82° C)
Total Error
±4% of full scale. Includes effects of
temperature, non-linearity, hysteresis,
and repeatability.
Table 8-Specifications for Eclipse

Pressure Transducers
