Peripherals Manual Transformers • 51
When the 8IO is wired alone, either or neither side of
the power supply may be grounded however, a separate
Earth ground should be made off of the center terminal of
the power connection.

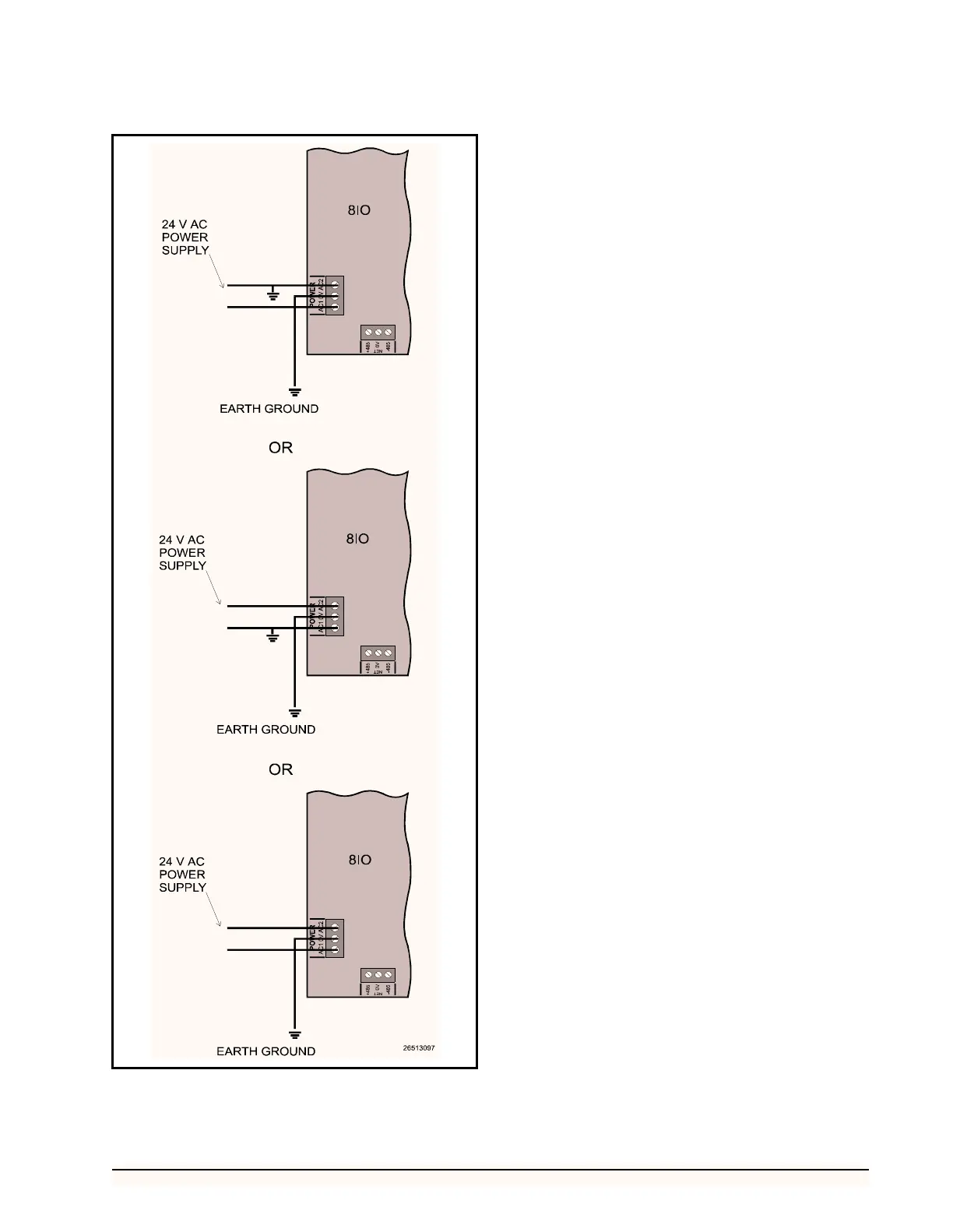

Figure 41-One 8IO with a Ground on Either Side of the Power
Supply and One 8IO with no Ground in the System
