not separate. Tighten the screw to the torque specified in Table 3-7.
Continue terminating the remaining negative DC conductors in this
manner for each MPPT (PVIn1, PVIn2, PVIn3).
5. Bypass Terminal option for standard wirebox. Fuse Bypass Terminals
are available as an optional accessory when external PV string fused
combiners are used. The Bypass Terminals allow for larger single
conductors to be terminated at each MPPT within the wirebox,
bypassing the input fuses as shown in Figure 3-26. See Section 9
Accessories for installation information.

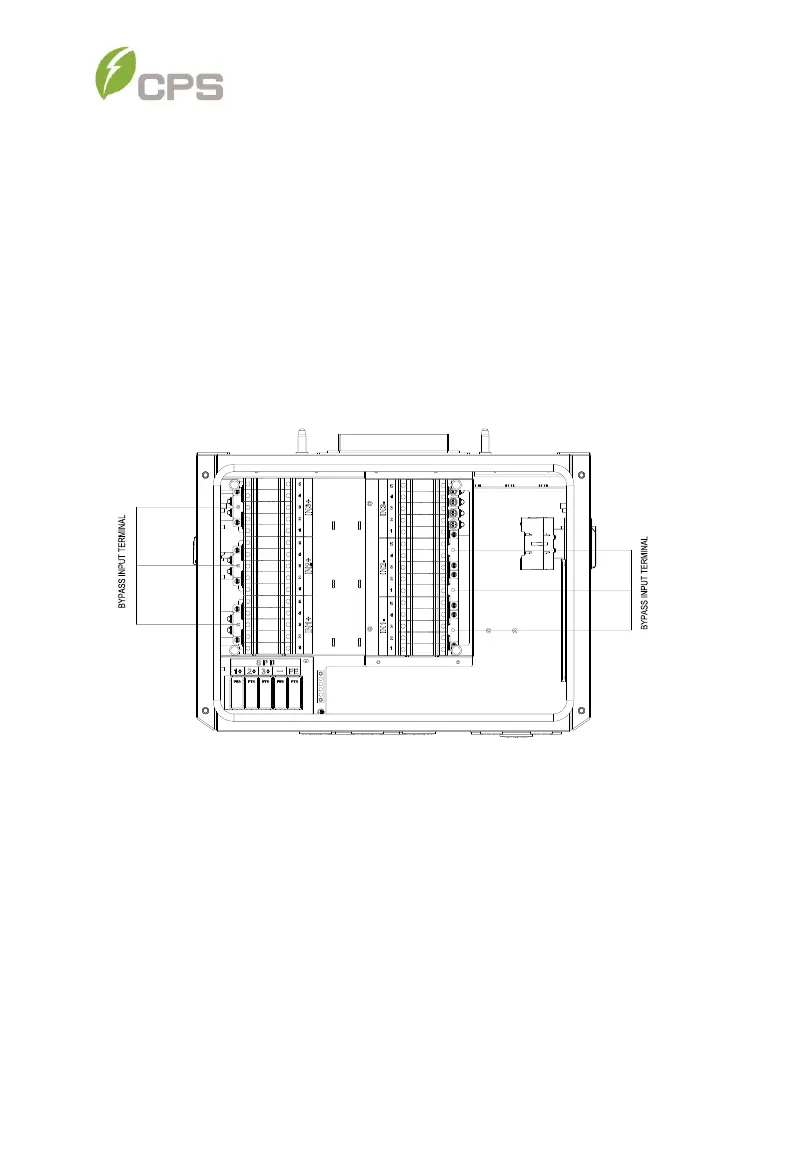

Figure 3-26 Bypass Terminal option installed within the Standard wirebox
（Only for CPS SCA50/60KTL-DO/US-480）
Before terminating the PV conductors, verify connector specifications
(Table 3-9) and always verify polarity to avoid risk of reverse polarity.
