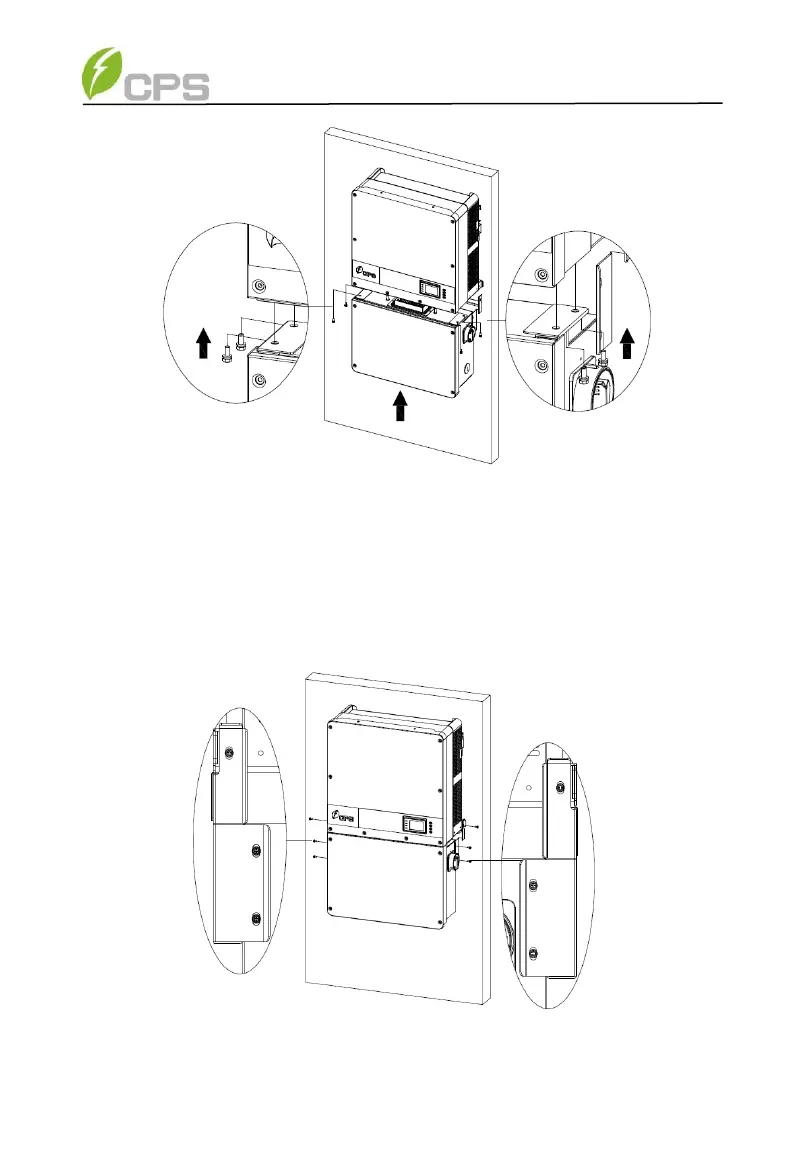

Figure 3-13 Installation of the Wiring Box
Step 5 Attach the main enclosure and the wiring box to the mounting
bracket with the M6x18 screws (6 pcs). (see Figure 3-14). Tool
required: No.3 Phillips head screwdriver, torque value of 4N.m
(35.4in-lbs)
Figure 3-14 Secure the Main Enclosure and Wiring Box to the Bracket
