Step 6 Attach the bulkhead cover shown in Figure 3-12 to the left side of the
wiring box. (See Figure 3-15). Tool required: No. 2 Phillips head screwdriver,
torque value of 1.6N.m (14.2in-lbs)

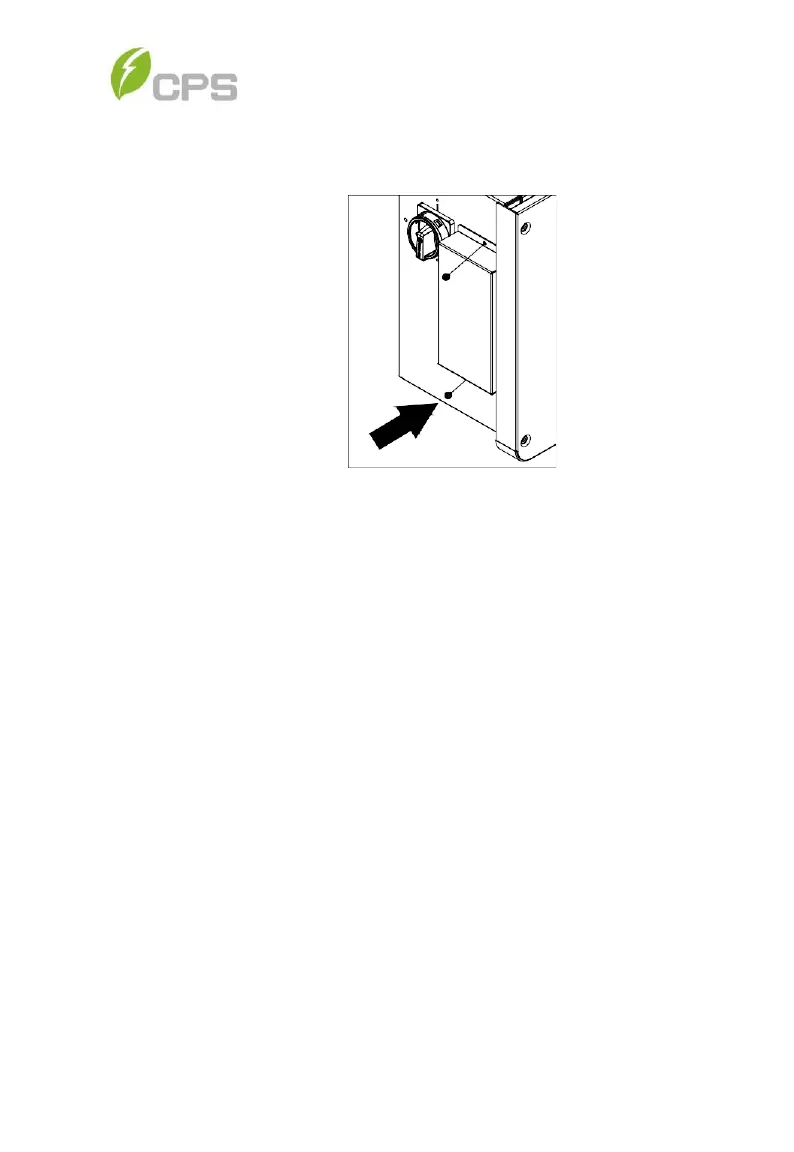

Figure 3-15 Attach the Cover to the left side of the Wiring Box
Step 7 Optional - Install an anti-theft padlock when the installation is
complete. The anti-theft padlock is used to prevent the inverter
from being stolen when the equipment is installed outdoors.
The inverter may be locked to the bracket (Figure 3-16).
